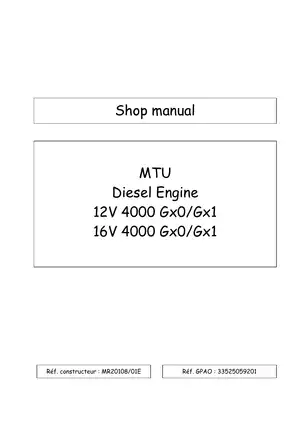

MTU 12V 4000 Gx0/Gx1, 16V 4000 Gx0/Gx1 Diesel Engine Service Manual (P/N MR20108/01E)

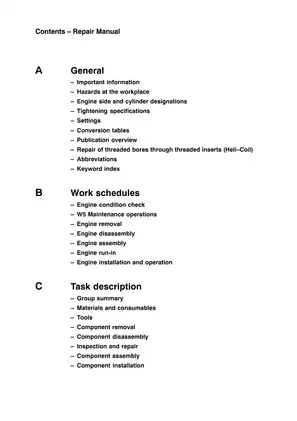

• Covers MTU 12V 4000 Gx0/Gx1 and 16V 4000 Gx0/Gx1 diesel engines in a 533-page factory PDF, Publication No. MR20108/01E.
• Follows the factory workflow from the pre-overhaul condition check through engine removal, controlled disassembly, assembly, run-in, acceptance checks, installation, and return to operation.
• Details repair work on the crankcase, cylinder liners, gear train, crankshaft, driving- and free-end PTOs, pistons and connecting rods, cylinder-head removal and installation, camshaft, and valve drive.
• Documents H.P. pump and injector replacement, accumulator and high-pressure line inspection, Common Rail leak testing, low-pressure fuel service, and removal/installation of the turbochargers and intercooler.
• Includes lube oil pump replacement, pressure-reduction-valve inspection, filters, centrifugal filter, oil heat exchanger, internal oil pipework, dual-circuit cooling, coolant-chamber pressure testing, and thermostat checks.
• Maps the W2, W3, and 12V/16V-specific W4 engine harnesses, sensors and actuators, starter and generator connections, and MDEC ECU 4 removal, inspection, installation, and final checks.
• Provides component-specific torque and setting tables, task-linked special-tool lists, exploded overview drawings, sectional views, system diagrams, and inspection and repair criteria.

Factory Workflow and Intended User

MTU states that this shop manual is intended for technical personnel responsible for maintaining and servicing Series 4000 diesel engines. Its procedures assume trained, qualified personnel with suitable workshop and test equipment plus approved special tools; it is not written as an introductory owner-maintenance guide.

The opening work schedules do more than list parts. The pre-overhaul condition check covers a loaded test run, speed/temperature/pressure observations, ECU and monitoring-system checks, leak and exhaust-color inspection, oil and coolant sampling, and an endoscopic examination. Separate schedules organize W5 work, full engine removal, the order of disassembly and assembly, run-in, acceptance testing, installation, and operational checks. Individual component chapters then use a consistent shop-floor format: overview, required tools, preliminary work, removal, disassembly where permitted, inspection and repair, assembly, installation, and after-installation checks.

Mechanical, Fuel, and Cooling Repair Depth

Internal-engine coverage includes camshaft-bearing and threaded-bore repair in the crankcase, cylinder-liner and carbon-scraper-ring inspection, crankshaft concentricity and bearing-shell assessment, connecting-rod parallelism and twist checks, and camshaft positioning with TDC and valve-drive adjustment references. The special-tool tables identify such equipment as hydraulic sets for main-bearing fasteners, crankshaft locating and bearing-shell tools, piston/connecting-rod lifting and assembly fixtures, a connecting-rod test device, and camshaft timing equipment.

Fuel-system content reaches beyond component replacement. It covers the H.P. accumulator, limiting and pressure-relief valves, high-pressure lines, fuel filter and delivery circuit, magnetic crack testing of the accumulator, cleanliness requirements after a ceramic H.P.-pump bearing failure, and Common Rail leak testing. Cooling work distinguishes the high- and low-temperature circuits and includes pump replacement, coolant-line repair, chamber pressure testing, thermostat inspection, and circuit-specific overview data.

Drawings and Control-System Coverage

Representative visual references include the crankcase exploded overview, crankshaft assembly view, H.P. injection-line sectional view, engine coolant-system schematic, starter circuit diagram, and W2/W3/W4 harness and sensor-location views. The ECU 4 section explains how cable breaks, short circuits, defective electrical groups, and implausible sensor values are recorded and passed to the connected monitoring system. The MEM-data-module transfer procedure is not reproduced; the manual directs that work to separate Electronics Documentation.

Important Scope Limits

MTU classifies the cylinder head, high-pressure pump, injector, coolant pump, MDEC, exhaust turbocharger, intercooler, vibration damper, starter, alternator, and fuel delivery pump as REMAN replacement assemblies. For those units, this manual explains removal and installation rather than internal overhaul.

The publication also identifies separate references for information outside this repair scope, including Parts Catalog M031 390 for the 12V and M031 385 for the 16V, Operating Instructions M015 403, BR 4000 Tools Catalog M004 029, the fluids specification, and Tolerance and Wear Limits List M070 040. This manual still supplies extensive component-level tightening data, settings, test values, and inspection criteria, but those companion publications remain necessary for a complete factory-document set.

One sequence warning is especially concrete: the free-end PTO radial-lip seal will be damaged or destroyed if it is removed before the driver flange. Wiring must also be returned to its original clamp positions and routed without tension so vibration, sharp edges, or hot surfaces do not damage the harness. Engine lifting, suspended loads, high-pressure fuel work, coolant pressure tests, and hot systems require trained personnel, proper lockout, rated support equipment, and strict use of MTU safety procedures.
