2002 John Deere 4510, 4610, 4710 Compact Utility Tractor Technical Manual (P/N TM1986)

John Deere technical manual TM1986 (November 2002) covers the 2002 4510, 4610, and 4710 Compact Utility Tractors. The Yanmar four-cylinder diesel engines are 4TNE84 in the 4510 and 4610, and 4TNE88 in the 4710. This North American edition also contains a dedicated European electrical section.

• Diesel engine: Engine removal, internal repair, compression testing, valve inspection, cooling-system diagnosis, and fuel injection pump static timing.

• Transmission service: Separate gear/SST, eHydro, and ePowrReverser/PRT sections cover machine splitting, transmission testing, removal, and configuration-specific repair.

• Electrical diagnosis: Wiring diagrams, connector references, fault-code charts, and eMatchOS tests support drive-pedal, throttle, speed-sensor, and proportional-solenoid diagnosis.

• Final drive and PTO: Mechanical Front Wheel Drive (MFWD), differential adjustments, axle repair, and mid and rear PTO clutch/brake service.

• Hydraulics: Pump flow testing, Selective Control Valve (SCV) service, rockshaft leakage checks, hydraulic bleeding, and optional draft-sensing adjustments.

• Steering and brakes: Steering Control Unit (SCU) diagnosis and replacement, steering-cylinder checks, wet multiple disc brake inspection, and linkage adjustments.

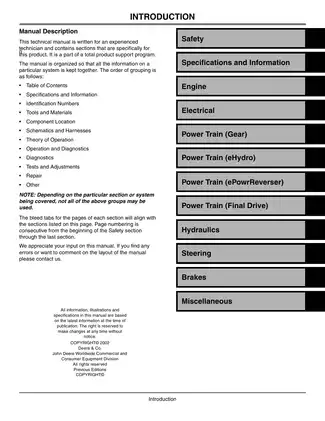

This technical manual is written for experienced technicians, with the diagnostic equipment and workshop tools specified for each job.

Diesel Repair, Fuel Delivery, and Cooling

Engine repair extends through the cylinder head, pistons, connecting rods, crankshaft bearings, and timing gears. Inspection limits accompany cylinder-bore reconditioning, valve-seat work, and internal clearance checks.

Cooling, lubrication, and fuel-system theory is paired with compression, oil-pressure, thermostat, radiator, and injector tests. These diagnostic tables help narrow down hard starting and loss of engine power.

Injection-pump removal, installation, and static timing are covered. Internal injection-pump and governor repair is assigned to a qualified fuel-injection shop.

eHydro Controls and Regional Wiring

The JDG1575 Test Kit section explains testing and setup of the drive controls. Pedal and throttle calibration procedures are separate from the automatic calibration required after replacement of the drive controller, proportional valve or coil, or complete hydrostatic transmission.

Fault-code and potentiometer references distinguish H160367/H160368 and H170875/H170876 serial breaks. These distinctions help match the diagnostic criteria to the tractor before replacing a pedal sensor or controller.

The W1 Main Electrical Schematic, W3 eHydro and Cruise Control Electrical Schematic, and eHydro Electronic Operating System Troubleshooting Flowchart connect circuit layouts with fault isolation. Component location views and harness connector tables support circuit tracing.

The European section adds regional lighting and PTO circuits; connector pin assignments differ from North American harnesses.

Transmission Splitting and Differential Setup

Front and rear machine-splitting procedures lead into gear-shaft and synchronizer repair, PowrReverser traction-clutch and valve service, and the factory creeper option. Differential repair includes pinion and backlash adjustments; replacement-carrier setup uses the JDG1395A Differential Setup Tool Kit.

For eHydro, the manual covers charge-pressure and high-pressure relief tests, unit removal, front-seal replacement, and serviceable valve components. Internal hydrostatic transmission components are not serviceable; the manual specifies complete-unit replacement for internal pump or motor failure.

Rockshaft, SCV, and Hydraulic Testing

Pump flow, system relief, PTO lubrication pressure, and rockshaft leakage tests are paired with repair sections for the gear pumps and rockshaft controls. Draft-feedback linkage and response adjustments address machines equipped with draft sensing.

The Steering/Charge Pump Circuit Schematic, eHydro Transmission and Rockshaft and Lift Arms exploded view show circuit routing and assembly relationships. The pressure-test instructions warn that interrupting oil flow to the PTO valve can deprive the PTO clutches of lubrication and damage them.

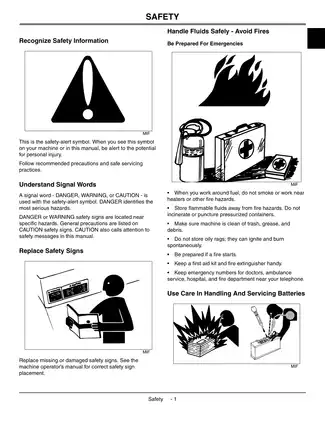

Always review the dedicated safety section before starting any heavy lifting or high-pressure hydraulic tests.

Steering Replacement and Brake Repair

Steering tests distinguish SCU leakage from cylinder leakage. The SCU and steering cylinders are specified as non-rebuildable units, with removal and replacement procedures provided. Uneven tightening of the SCU mounting bolts can distort its valve body and cause premature failure.

Brake coverage includes friction-disc and plate inspection, actuator assembly, pedal adjustment, and side-mounted and dash-mounted parking-brake arrangements.

A Preview of Cylinder-Head Inspection and Torque Data

The following cylinder-head figures are a small sample of the manual's inspection and assembly data.

For both covered Yanmar engine types, standard intake valve-seat width is 1.07-1.24 mm, with 1.74 mm listed as the wear limit.

The head-installation procedure specifies oil-lubricated bolts and three progressively tighter stages, ending at 85-91 N·m, with the tightening sequence illustrated.

PDF Search, Navigation, and Page Count

Text search and diagram detail: Searchable text and embedded bookmarks provide access to the technical sections. Small wiring labels and connector numbers are best read with magnification.

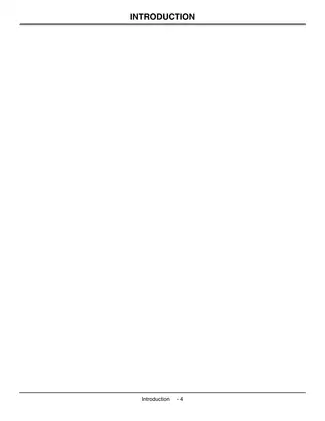

Supplied as one printable, 790-page PDF in English. The total includes one cover page, one introduction page, and 19 blank or header-only pages; these are already included in the page count.
