1965–1974 Ford 4000-Series 3-Cylinder Tractor Parts Catalog (P/N 34932461b)

This illustrated parts catalog covers 1965–1974 Ford 4000-Series 3-cylinder tractors, including all-purpose, row-crop and orchard variants. Exploded assembly drawings are paired with part numbers, quantities and application notes for component identification during restoration and repair.

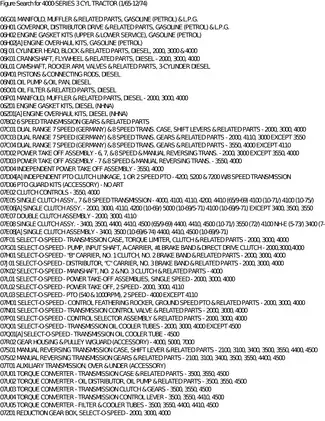

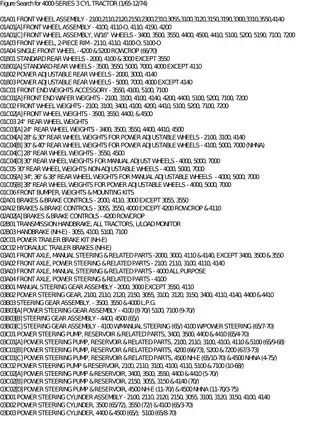

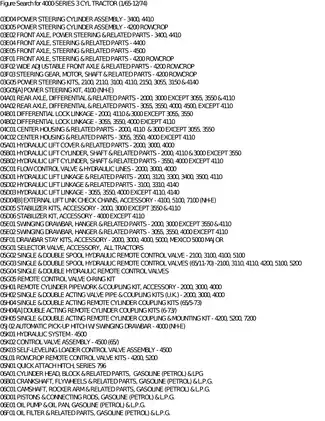

Text search and drawing detail: Figure headings and parts lists are searchable. Embedded bookmarks open the figure index, catalog and reference sections. Labels within the drawings are not searchable; small illustration callouts benefit from magnification.

• Engine components: Cylinder-head, block and rotating-assembly parts identification, with separate listings for gasoline, LPG and diesel builds, gasket kits and engine overhaul kits.

• Fuel and cooling: CAV injection-pump components, Holley and Zenith carburetors, LPG fuel equipment, radiator assemblies and water-pump parts.

• Transmission and PTO: Dual-range, Select-O-Speed, manual reversing and torque-converter component breakdowns, plus clutch assemblies and transmission-driven and independent PTO variants.

• Hydraulics: Lift-cover and lift-cylinder assemblies, flow-control and remote-control valves, pump variants, external cylinder connections and swinging drawbar equipment.

• Axles, steering and brakes: Front and rear axle assemblies, differential locks, steering gears and pumps, drum and disc brakes, trailer-brake equipment, wheels and weights.

• Electrical and body equipment: Harness layouts, lighting, starting and charging components, instrument clusters, sheet metal, safety frames and transmission shift-pattern decals.

The catalog is suited to mechanics and experienced owners who can interpret exploded parts drawings and match component application notes to their tractor's equipment.

Engine, Fuel and Cooling Components

The diesel cylinder-head and block view, 06J01, identifies castings, gaskets and related fittings. Crankshaft, piston and connecting-rod listings sit alongside separate camshaft, rocker-arm and lubrication sections. Replacement notes distinguish head gaskets for different block assemblies and identify piston updates that require a complete set.

The CAV Fuel Injection Pump view, 09E01, breaks out the head-and-rotor assembly, governor and advance components. Holley and Zenith carburetor listings are separate from the LPG carburetor, fuel lock and vaporizer regulator. Radiator and water-pump pages identify cooling-system assemblies and repair-kit contents.

Transmission and Independent PTO Parts

Select-O-Speed coverage extends to planetary carriers, brake bands, torque-limiter components and the transmission control valve, 07N01. Other sections identify manual reversing gearsets and the torque converter's oil distributor, pump and clutch components.

PTO compatibility: The Independent Power Take Off Assembly view, 07D04, ties a replacement clutch housing to a different plate combination on tractors built before production code 8F26. That note helps prevent ordering an incompatible housing and plate pack for a PTO repair.

Hydraulic Pumps and Valve Assemblies

Pump listings distinguish the piston-type assembly for tractors without independent PTO from gear-type units. The 4500 has separate Cessna gear-pump and vane-pump listings, along with its own hydraulic-system layout and self-leveling loader control-valve view.

Remote-valve sections distinguish single- and double-spool assemblies, detent arrangements and seal kits. Lift-linkage, stabilizer and drawbar pages identify the brackets and connecting hardware used with the applicable tractor configuration.

Axles, Steering and Brake Variants

Front-axle documentation distinguishes spindle, tie-rod and axle-center arrangements for manual and power steering. The 4400 center-arm shaft listings change at 6E9B; steering-cylinder notes also warn against mixing the listed cylinder sizes on one tractor.

Brake drawings separate the 4110 drum assemblies from disc-brake configurations, transmission handbrakes and trailer-brake equipment. Wheel sections identify standard and power-adjustable rims, rear-wheel extensions and weight-mounting hardware.

Electrical Layouts and Restoration Hardware

Rear Lamps, Flasher & Wiring, 11C01, shows lamp assemblies, harness routing and mounting components. Electrical coverage consists of parts and harness layouts; circuit schematics, pinout charts and electrical diagnostic procedures are outside this catalog's scope.

Body and equipment listings cover instrument clusters, hoods, fenders, seats, cabs and safety frames. The 4200 row-crop entries distinguish fender, platform and lighting components around 6D25B, while decal tables separate transmission and PTO configurations.

Parts Data and Repair Scope

Parts tables provide fastener sizes, quantities, replacement references and application notes. Shared listings also name other Ford series; each entry's model and equipment qualifications govern its applicability.

The hardware-conversion appendix cautions against treating metric and inch threads as interchangeable, a mismatch that can damage mounting bolts or tapped housings.

This is a parts reference without step-by-step overhaul procedures, torque tables, pressure-test specifications or troubleshooting charts. Repair work requires the applicable service instructions. Heavy wheels, axles and weight assemblies require suitable lifting equipment and proper support.

Printable PDF and Included Reference Pages

One printable English-language file is supplied. The 909-page PDF contains 890 catalog pages, including the six-page figure index, plus one search-guide page, 14 abbreviation pages, two hardware-conversion pages, one introductory image page and one blank page; all are included in the total.
