TYM T390, T400, T430, T450 Tractor Manual Set 2005–2012 - (P/N 1220-912-001-0)

Use the operator’s volume for operating instructions and scheduled care, the service volume for component repair, and the parts catalog for illustrated component identification. Model and engine coverage differs between the publications.

Engine repair scope: The service volume covers engine separation, radiator service and air-cleaner maintenance, rather than complete internal engine overhaul. Detailed starter and alternator service is referred to a separate engine manual, which is not included.

PDF Search, Bookmarks and Diagram Detail

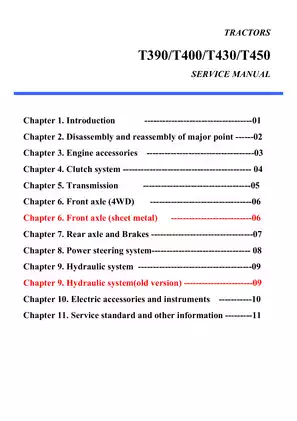

Search and navigation: The service manual and parts catalog contain searchable text, although some diagram labels are embedded in images. The service PDF has chapter bookmarks, and the catalog has figure bookmarks with gaps in coverage. The operator’s PDF has neither embedded text search nor bookmarks. Small wiring labels require zooming; some of the service manual’s smallest color codes remain indistinct when enlarged.

The ZIP contains three printable English-language PDFs totaling 670 pages. This total includes covers, contents and index pages, record sheets, the operator’s three-page emissions-warranty section and its publication-details page.

Drivetrain, Axle and Hydraulic Repair Coverage

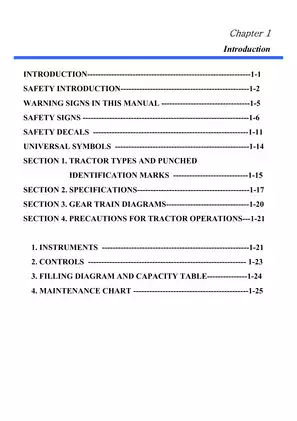

The selected topics below show the main service areas without reproducing the full contents list. Other subjects include ROPS care and seat adjustment.

• Major-component separation: Step-by-step procedures for separating and reconnecting the front axle, engine, transmission sections, rear axle housings and hydraulic cylinder case.

• Clutch and PTO service: Dry main-clutch disassembly, facing and hub inspection, pedal adjustment, and independent wet PTO-clutch inspection and reassembly.

• Geared transmission repair: Linear shuttle, main and range gears, synchromesh assemblies, four-wheel-drive engagement, differential setup, shifters and fault diagnosis.

• Axles and brakes: Separate standard and “sheet metal” front-axle chapters, with center-pivot, differential, final-case and rear wet-disc brake service.

• Power steering: Open-center non-load-reaction operation, steering-valve/Orbitrol overhaul, manual-steering operation and symptom-based troubleshooting.

• Hydraulic lift systems: Current and old-version arrangements, lift-link adjustment, valve servicing, dual gear-pump repair, filtration, optional remote hydraulics and pressure testing.

• Electrical diagnosis: Battery test charts, meter and switch checks, wiring diagrams, and troubleshooting for lighting, instruments, glow, starting and charging circuits.

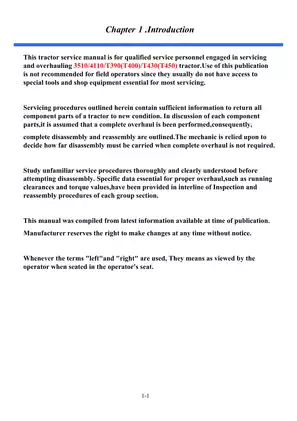

The service procedures are written for qualified service personnel with access to special tools and shop equipment; the operator’s volume addresses routine operation and maintenance.

Engine Builds and Configuration Matching

Engine versions: The service specifications pair the V1903 with T390/T400 and the V2203 with T430/T450. The operator’s specifications identify a V2003 installation for T390/T400 and include V2203/V2203-M references for T430/T450. Match the engine identification and document configuration before using specifications.

The drivetrain chapters concern geared transmissions; this set does not provide an HST repair chapter. Shared service sections also use the related 3510/4110 designations.

Parts selection: The T430/T450 catalog separates PTO gear and linkage versions and includes effective-date and configuration remarks. Hydraulic pipe illustrations distinguish drum-filter and spin-on arrangements; an additional pipe figure is expressly restricted to model 3510.

Clutch, Transmission and Axle Inspection

The separation charts identify which tractor joints provide access to particular assemblies. Together with the component chapters, they help determine the disassembly needed for clutch, transmission or final-drive work.

Differential service includes pinion starting torque, backlash, tooth-contact patterns and shim selection. Synchronizer dimensions, shifter disengaging loads and component wear limits support inspection before reassembly.

PTO-clutch instructions address seal-ring handling, return-plate orientation and cleanliness. The main-clutch chapter warns that reversing the disc hub can damage the cover or disc.

Illustrated references include model-specific gear-train diagrams and the synchromesh mechanism view. The parts catalog adds keyed input and counter gears, rear differential components, front differential and final cases, steering assemblies and wiring harnesses.

Lift Hydraulics and Steering

Hydraulic control: The chapters explain main-control-valve operation, the flow divider/PTO solenoid valve, pressure-control and slow-return check valves, and relief and safety valves. PTO-solenoid ON/OFF circuits connect the operating theory to clutch engagement and fault tracing.

Hydraulic troubleshooting addresses weak lift, lift drift, pump noise, overheating and PTO-clutch complaints. Pump inspection and pressure-testing information accompanies the component procedures.

Orbitrol service: Steering illustrations show neutral, right-turn, left-turn and manual-steering circuits. The tool list identifies centering spring installer P/N 600057. Incorrect rotor indexing can make the steering hand pump act as a motor, causing continuous wheel rotation and possible damage or injury.

Electrical References and Routine Care

Battery testing charts and switch-continuity tables accompany the tractor wiring diagram and the operator’s independent-PTO wiring diagram. Grounding information, fuse arrangements and trailer-socket connections support circuit tracing.

The operator’s volume also explains PTO and four-wheel-drive use, three-point-hitch operation, lubrication, maintenance schedules, storage and fault tracing. Tractor-history, service, daily-operation and parts-replacement records are included.

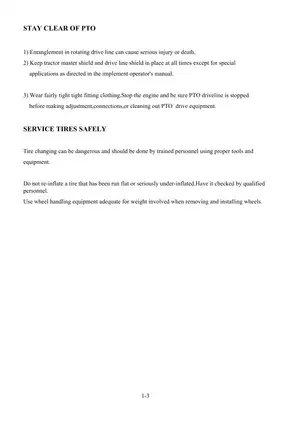

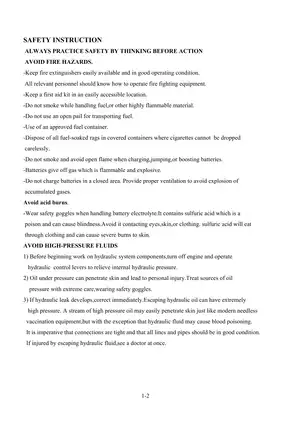

Repair work requires secure support of separated tractor sections and control of spring-loaded components, rotating driveline parts and residual hydraulic pressure.

Selected Main-Clutch Inspection Data

The main-clutch specifications list a free disc thickness of 8.0 ± 0.3 mm, alongside facing, hub-spline and disc-deviation inspection data.

The facing inspection calls for disc replacement when rivet-head depression is 0.2 mm or less. This distinguishes the rivet-wear criterion from overall disc thickness and ties the inspection to possible flywheel and pressure-plate damage.
