Isuzu A-4JG1 1999– Diesel Engine Workshop Manual (P/N IDE-2320)

Isuzu Motors Limited workshop manual for the 1999– A-4JG1 industrial diesel engine, P/N IDE-2320, first edition August 1999. It covers maintenance, engine overhaul, component testing, and repair standards.

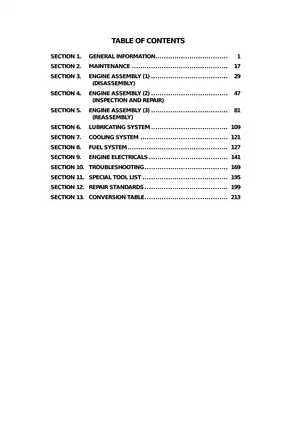

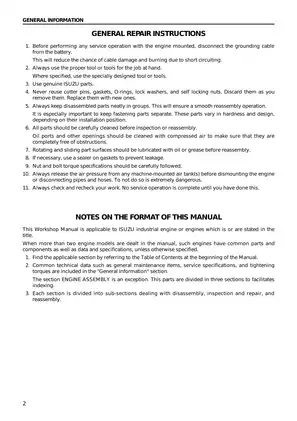

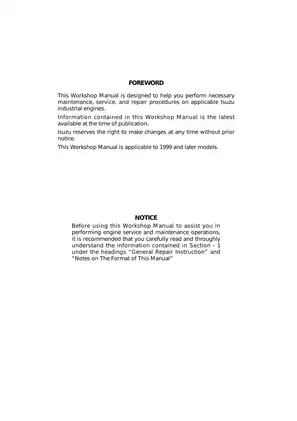

PDF Search, Bookmarks, and Page Contents

Text search and diagram detail: The PDF supports text search. Two embedded bookmarks mark broad file sections rather than individual chapters. Small terminal labels in the starter test-circuit diagrams are readable when enlarged.

Supplied as one printable English-language PDF with 225 pages: 220 numbered pages plus five cover, introductory, and publication pages. Eight memo pages and one otherwise blank page are already included within the numbered section.

Engine Overhaul, Injection Service, and Electrical Testing

The following selected workshop topics show the manual’s repair depth. Other material includes engine repair-kit illustrations and metric/imperial conversion tables.

• Engine overhaul: Step-by-step disassembly and reassembly procedures for the cylinder head, valve train, crankshaft, pistons, connecting rods, and timing gears.

• Fuel system: Injection timing checks, fuel-system bleeding, nozzle opening-pressure and spray tests, nozzle lapping, and shim adjustment.

• Lubrication: Trochoid oil-pump disassembly, rotor and housing clearance checks, regulating-valve testing, and oil-cooler leakage inspection.

• Cooling system: Thermostat operating tests, fan-belt adjustment, water-pump specifications, and coolant-flow illustrations explaining bypass and radiator circulation.

• Engine electricals: Starter overhaul and bench testing, plus alternator rotor, stator, rectifier, brush, and bearing inspection procedures.

• Troubleshooting: Checkpoint–cause–countermeasure charts address starting faults, unstable idle, power loss, overheating, exhaust smoke, oil pressure, consumption, and abnormal noise.

Suited to qualified diesel service personnel equipped for precision engine measurements and electrical bench testing.

Engine Service and Assembly

Factory inspection standards support decisions about which worn parts can be reused, repaired, or replaced during an overhaul. Exploded assembly views identify component positions and service sequences, while torque tables include the staged tightening requirements for cylinder-head and connecting-rod bolts.

Parts matching: Selection tables relate cylinder-liner grades, AX/CX piston grades, crankshaft bearings, and cylinder-head gasket thickness to measured dimensions. The inspection sections cover piston-ring gaps, valve-stem clearance, crankshaft journal dimensions, and bearing clearances measured with Plastigage.

Liner and valve work: Detailed procedures cover dry-liner installation using special tools or dry ice, valve-guide replacement, and valve-seat insert replacement and correction. The special-tool list supplies tool numbers and procedure references, including cylinder-liner installer 5-8840-2313-0.

The tufftrided crankshaft must not be reground, and the chrome-plated dry liners must not be rebored or honed because these operations would remove their treated surfaces. Reversing a connecting-rod bearing cap can cause serious engine damage; the assembly section identifies the required orientation.

Injection Timing and Pump-Service Limits

Bosch A-type in-line pump specifications are accompanied by separate timing and bleeding procedures for in-line and distributor pumps. Pump identification determines which service data apply, helping distinguish the appropriate checks before adjustment.

Pump calibration boundary: The injection-pump calibration sheets are examples, not application-specific calibration settings. The manual directs injection-pump adjustment and repair to authorized ZEXEL or Robert Bosch service outlets using data for the installed pump.

Working on industrial diesel engines involves high pressures and heavy components. Follow the manual’s safety precautions for injection-nozzle testing and engine handling.

Lubrication, Cooling, and Fault Diagnosis

The Lubricating Oil Flow drawing traces oil distribution to bearings and valve-train components; the optional oil cooler has its own inspection section. An engine-oil viscosity chart relates lubricant grades to ambient temperature.

The Coolant Flow drawing explains thermostat bypass operation. Cooling coverage includes thermostat testing and water-pump removal and installation within the engine assembly procedures; it does not provide a dedicated internal water-pump overhaul procedure.

Hard-starting charts distinguish an inoperative starter, a starter that cannot turn the engine, and an engine that cranks without starting. This organization links the observed symptom to relevant electrical, fuel-delivery, and mechanical checks.

Starter and Alternator Repair

Starter coverage extends to armature winding tests, commutator inspection, magnetic-switch checks, and overrunning-clutch evaluation. Test-circuit diagrams show the connections for pinion-position and no-load performance checks.

Alternator specifications distinguish Hitachi LR150 and LR240-388 units from the Mitsubishi A002TA8383. The illustrated overhaul procedures cover the built-in IC-regulator type, with the general assembly view based on LR240.

Routine maintenance intervals are referred to the separate instruction manual; this workshop manual concentrates on service procedures and repair data.

Examples of Compression and Liner Inspection Data

For a warmed A-4JG1 engine tested at 200 rpm, the compression section lists 3.04 MPa as the standard pressure and 2.2 MPa as the service limit.

Cylinder-liner projection is specified at 0–0.10 mm, with no more than 0.03 mm difference between adjacent cylinders. These inspection criteria accompany the liner replacement and installation information.
