Isuzu Models Covered & Key Technical Specifications

Models & Model Codes: UM4BB1, UM4BD1, UM4BD1-II, UM4BDIT (UM4BD1T), UM4BDIT-II (UM4BD1T-II), UM4BD1TC (UM4BD1TC-II)

Sub-models / Variants: 4-cylinder in-line, water cooled, over-head valve, turbocharged and naturally aspirated variants; secondary-balancer versions: UM4BD1-II, UM4BD1T-II and UM4BD1TC-II; UM4BD1TC-II is turbocharged and intercooled

Marine gear applications: Hydraulic wet multi-disc clutch, constant-mesh gears with oil cooler. UM4BB1: MR300 or MGN26A-1; UM4BD1: MGN26A-1; UM4BD1-II: MGN26L-1; UM4BD1T: MR305 or MGN26A-1; UM4BD1T-II: MR305 or MGN26L-1; UM4BD1TC-II: MR305 or MR400. These are application specifications; internal marine-gear repair requires separate manufacturer manuals.

Model Year: 1987


  • Engine type: Water cooled, 4-cycle, in-line 4 cylinder

  • Displacement: 3595cc (UM4BB1), 3856cc (all other models)

  • Max continuous output: 70–110 ps depending on model

  • Lubricating system capacity: Max 9.2L, Min 7.2L

  • Injection nozzle pressure: 185 kg/cm²

  • Valve clearance: 0.4 mm (cold condition)

  • Cooling system capacity: Approx 13L

Isuzu Manual Features & Selected Content Preview

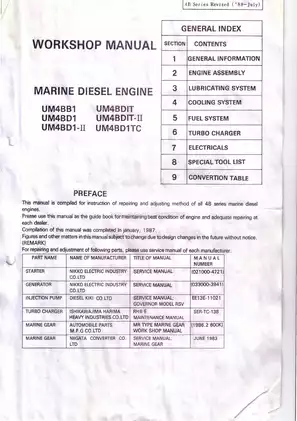

This workshop manual from Isuzu Motors Limited’s Marine Department covers the UM4BB1, UM4BD1, UM4BD1-II, UM4BDIT, UM4BDIT-II, and UM4BD1TC marine diesel engines. Publication IM-WE-4BD1-001 identifies the First Edition as September 1987. The file also contains a July 1988 revised index and preface sheet.

PDF Access, Diagram Detail and Page Count

Search, navigation and wiring detail: PDF text search is not available, and there are no embedded PDF bookmarks. Small wiring labels require zooming; some faint or heavily reproduced wire codes remain difficult to distinguish.

Supplied as one printable English PDF with 120 pages total, including four opening pages: the publication/edition page, cover, original index/preface and revised index/preface. The revised sheet is already included in that total.


Engine Overhaul, Marine Cooling and Fuel-System Service

The following is a selected content overview, rather than a complete table of contents. Other topics include lubricant-viscosity guidance and unit-conversion tables.

  • Internal engine repair: Disassembly, inspection, renewal and reassembly of the cylinder block, dry chrome liners, cylinder head, valves, guides, pistons and connecting rods.

  • Timing and rotating assemblies: Camshaft, crankshaft and bearing inspection, timing-gear installation, flywheel work, secondary-balancer assembly and piston-cooling oil-jet checks.

  • Fuel-system testing: Injection-timing adjustment, compression testing, nozzle spray and opening-pressure checks, fuel-system bleeding and four model-group injection-pump calibration data sets.

  • Lubrication-system repair: Oil-pump disassembly and inspection, oil-gallery relief-valve service, filter and cooler inspection, passage cleaning and component wear limits.

  • Marine cooling service: Freshwater and seawater pumps, thermostats, heat exchangers, water-cooled exhaust manifolds and the intercooled engine’s separate charge-air cooler.

  • Electrical reference: Nikko starter and generator specifications, component views, internal schematics and an engine-harness wiring diagram for tracing the connected circuits.

  • Workshop tooling: An illustrated list of 13 special tools with Isuzu part numbers and references to the relevant service sections.

Isuzu compiled this publication for dealer repair and adjustment work; its precision measurements, press operations and injection-pump calibration data suit technicians equipped for marine-diesel overhaul.

Internal Engine Work and Variant Differences

The manual provides step-by-step procedures for liner renewal, cylinder-head work, piston and connecting-rod assembly, timing-gear installation and secondary-balancer assembly. Routine removal of external components is largely omitted; the emphasis is on inspection, adjustment and internal assembly.

Factory tables distinguish assembly standards from wear limits. Together with component torque specifications, these references support decisions about which inspected parts can remain in service and which require correction or replacement.

Secondary-balancer engines have separate bushing, bearing, backlash and gear-mark alignment information. Their valve-adjustment reference uses the flywheel mark because the corresponding top-dead-center mark is absent from the crank pulley.

Machining a turbocharged engine’s crankshaft can remove its Tufftride-treated surface; the manual excludes undersize-bearing repair for those applications. Incorrect piston and connecting-rod orientation can also cause the rod’s big end to strike the piston-cooling oil jet.

Fuel Calibration and Turbocharger Limits

Injection-pump calibration sheets cover the UM4BB1, UM4BD1/II, UM4BD1T/II and UM4BD1TC groups. They identify pump assemblies and specify test conditions, delivery quantities and governor settings. Separate procedures address nozzle cleaning, inspection, reassembly and opening-pressure adjustment.

Component-manual requirements: Injection-pump disassembly and assembly are referred to the Diesel Kiki RSV service manual EE13E-11021. Internal turbocharger repair requires the IHI RHB6 maintenance manual SER-TC-138. The included turbocharger section addresses external inspection for wheel damage, carbon accumulation, oil leakage, free rotation and shaft play.

Cooling, Lubrication and Visual References

Cooling procedures distinguish the freshwater circuit from the seawater circuit and show differences in the intercooled configuration. Coverage includes pump seals and impellers, corrosion inspection, cooler-core cleaning, thermostat testing and heat-exchanger, intercooler and exhaust-manifold leakage tests.

The lubrication section addresses pump clearances, relief-valve condition and oil-cooler element leakage. Supporting illustrations include the internal-engine major-component exploded view, secondary-balancer gear-mark diagram, lubricating-oil circulation schematic, model-specific coolant-flow diagrams and fuel-circulation schematic.

Electrical Circuits and Workshop Equipment

The wiring diagram separates the engine, extension and meter harnesses. It traces starting, charging, glow-plug, bilge-pump, lighting, engine and marine-gear oil-pressure warning, gauge and tachometer circuits.

Detailed Nikko starter and generator repairs require their manufacturer manuals, as do internal MR- and Niigata-type marine-gear repairs. Isuzu also distinguishes marine electrical components from land-engine units because of their corrosion and salt protection.

Special-tool examples include cylinder-liner remover 9-8523-1169-0, liner installer 9-8523-2554-0, crankshaft-gear puller 9-8521-0141-0 and water-pump impeller remover 9-8521-0097-0.

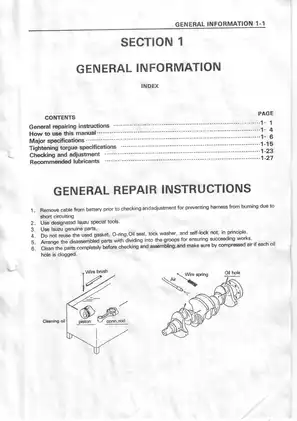

Isuzu specifies battery disconnection before checks or adjustments to prevent short-circuit damage to the harness. Pressure testing, rotating assemblies and major internal-engine work require appropriate marine-workshop safety controls and equipment.

Examples of Pump Clearances and Thermostat Test Data

For oil-pump inspection, gear-to-body clearance is listed at 0.10–0.195 mm standard, with a 0.20 mm limit.

Thermostat opening temperatures are 74.5–78.5°C for the UM4BB1, UM4BD1/II and UM4BD1T/II groups, versus 69–73°C for the UM4BD1TC-II. These model-specific ranges accompany the thermostat inspection information.
