Kobelco SK115SR-1E, SK135SR-1E, SK135SRLC-1E, SK135SRL-1E - Comprehensive Repair Manual for Hydraulic Excavators 2002-2003
Product Gallery

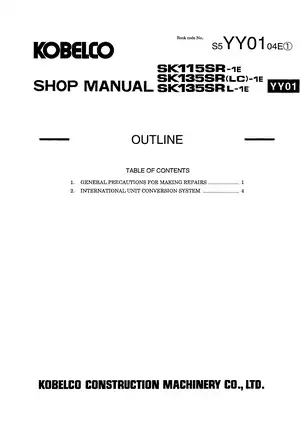

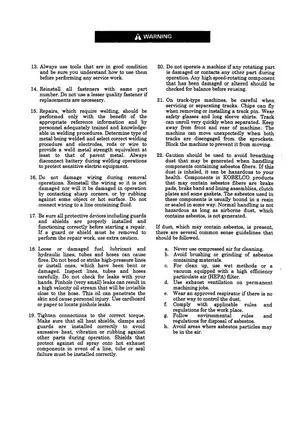

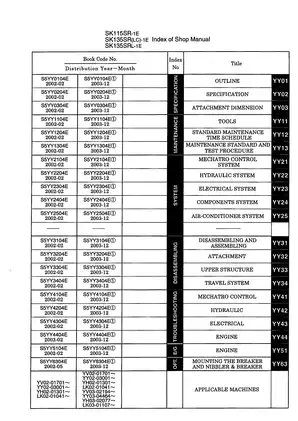

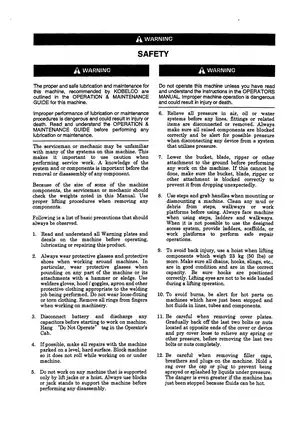

Sample pages from the Kobelco SK115SR-1E, SK135SR-1E, SK135SRLC-1E, SK135SRL-1E - Comprehensive Repair Manual for Hydraulic Excavators 2002-2003 manual
Purchase Information
2002-2003 Kobelco SK115SR-1E, SK135SR-1E, SK135SRLC-1E, SK135SRL-1E Shop Manual - Technical Specifications
- Document Number / Seller:
- 30618 / Rebecca Morgan
- File Size:
- 54.51 MB
- File Type:
- Language:
- English
- Pages:
- 993
- Printable:
- Yes
- Estimated Download Time:
- 1.12 Minutes
- Delivery Format:
- Digital (PDF) - Instant Access
- Category:
- Excavator
- Brand:
- Kobelco
- Reviewed and Approved:
- Dec 19, 2025
Kobelco Models and Parts Covered in this Excavator Manual
- SK115SR-1E (2002–2003)
- SK135SR-1E (2002–2003)
- SK135SRLC-1E (2002–2003)
- SK135SRL-1E (2002–2003)
Complete Manual Information
Comprehensive Shop Manual for Kobelco SK115SR-1E, SK135SR-1E, SK135SRLC-1E, SK135SRL-1E Hydraulic Excavators 2002-2003
Keep your Kobelco hydraulic excavator running at peak performance with this professional-grade Shop Manual. Covering the critical production years from 2002 to 2003, this manual is the definitive resource for owners, fleet managers, and service technicians who demand factory-spec precision. Whether you are performing routine maintenance on an SK115SR-1E or a complete system overhaul on an SK135SRL-1E, this guide provides the technical depth required to minimize downtime and ensure operational safety.
Full Model & Serial Number Coverage
This manual is specifically engineered for the following Kobelco models and serial number ranges:
- SK115SR-1E: YV02-01701~ / YV03-02194~
- SK135SR-1E: YY02-03001~ / YY03-04464~
- SK135SRLC-1E: YH02-01301~ / YH03-02077~
- SK135SRL-1E: LK02-01041~ / LK03-01107~
Professional Service Features
- Total System Diagnostics: Deep-dive technical sections on Mechatro control systems, hydraulic circuits, and electrical layouts to pinpoint issues before they lead to costly repairs.
- Precision Disassembly & Assembly: Step-by-step instructions for the upper structure, travel system, and attachments, including crucial match-marking and specialized tool requirements.
- Engine & Component Care: Dedicated sections for engine troubleshooting and disassembling, ensuring your power plant operates within factory tolerances.
- Operational Safety Protocols: Comprehensive safety guidelines, including high-pressure line handling, battery disconnection for welding, and asbestos-safe maintenance practices.
- Technical Specifications: Detailed data on standard dimensions, maintenance schedules, and international unit conversion tables for global service standards.
Complete Technical Index
This Shop Manual (Book Code S5YY0104E1) is organized into seven primary sections for rapid navigation:
- Specification Section: Detailed dimensions and machine outlines.
- Maintenance Section: Maintenance schedules, standards, and test procedures.
- System Section: Mechatro, Hydraulic, and Electrical system breakdowns.
- Disassembly Section: Detailed procedures for the upper structure and travel systems.
- Troubleshooting: Logic-based diagnostics for mechatronics, hydraulics, and electrical components.
- Engine Section: Full engine service and troubleshooting data.
- Optional Attachments: Installation procedures for specialized tools like breakers and nibblers.
Designed for readability on both desktop and mobile devices, this manual serves as your digital workshop partner. By following the factory-recommended lubrication and repair procedures outlined here, you protect the longevity of your investment and ensure the safety of your operators on the job site.
