1988–1990 Yamaha EF5000EA/EF6000EA Generator Service Manual Set (P/N LIT-19616-00-48)

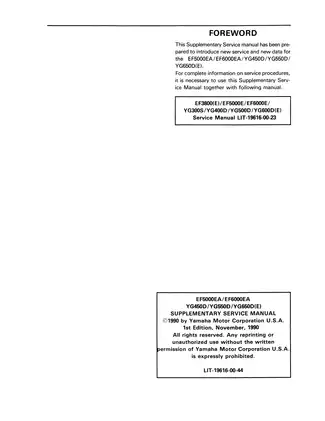

The supplement documents the changes for the later models and expressly calls for use with the base manual. Both publications are included, so the updated service information can be read alongside the underlying repair procedures.

PDF Bookmarks, Diagram Detail and Page Count

Search and navigation: PDF text search is not available. Embedded bookmarks provide access to both publications and their service sections. Small wire-color codes and connector labels on the checked wiring diagrams require zooming to read clearly.

Supplied as one printable, 178-page PDF in English. The total includes the combined cover and four otherwise blank pages with section headers or page numbers within the base manual.

Engine Overhaul and Generator Fault Diagnosis

The following are selected service topics, rather than a complete contents list. Other subjects include fuel-cock inspection and battery storage.

• Engine overhaul: Step-by-step disassembly, inspection and reassembly procedures covering crankcase separation, pistons, connecting rods, crankshaft, camshaft and balancer shaft.

• Maintenance and adjustment: Valve-clearance adjustment, combustion-chamber decarbonization, compression testing, governor adjustment and economy-idle checks.

• Generator repair: Stator and rotor removal, rotor-diode inspection, winding-resistance checks and troubleshooting for loss of AC or DC output.

• Carburetor and automatic choke: Carburetor inspection and cleaning, float-height adjustment, choke-coil checks and vacuum-diaphragm inspection for the applicable configurations.

• Starting and ignition: Recoil-starter service, starter-motor inspection, relay testing, TCI diagnosis, oil-warning checks and battery-charging troubleshooting.

• Wiring and component layout: Model-specific wiring diagrams, G.F.I. troubleshooting, control-box exploded views and cable-routing diagrams for standard and electric-start configurations.

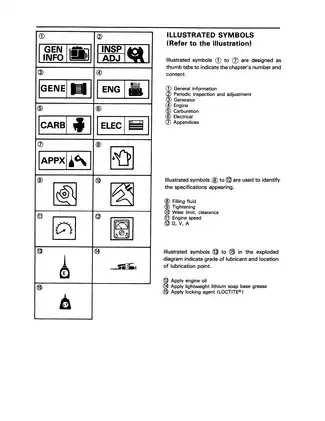

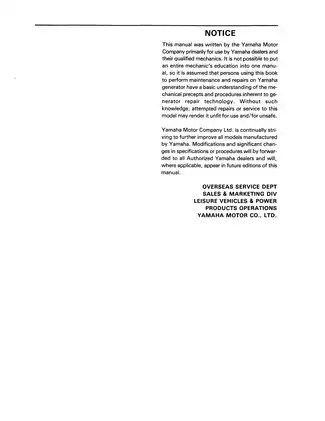

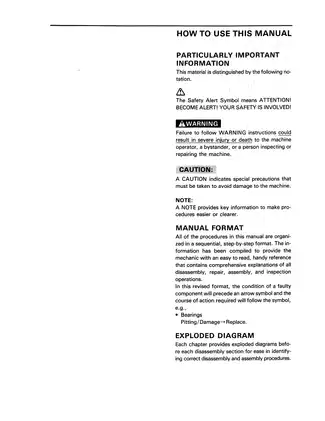

Written primarily for Yamaha dealers and qualified mechanics, these manuals assume a basic working knowledge of generator repair.

Engine Inspection and Reassembly

The engine section documents piston-ring clearances, valve-seat contact widths and connecting-rod oil clearances for bench inspection. These specifications help mechanics assess component condition before deciding which parts require repair or replacement.

Exploded views of the cylinder, crankshaft, piston and camshaft show how the internal assemblies fit together. Separate illustrations identify piston and connecting-rod orientation for the different engine groups, while the timing illustrations distinguish camshaft alignment from balancer-shaft indexing.

Flywheel-magneto service identifies the required holding and removal tools, including rotor holding tool YU-01235 and flywheel puller set YU-33270. The bearing notes also flag surface damage caused by spinning dry bearings with compressed air.

Carburetion and Automatic-Choke Coverage

The carburetor sections distinguish the applicable jetting, identification marks and float settings. The supplement explains how engine vacuum and an electrically heated bimetallic strip operate the automatic choke, with an accompanying circuit illustration and component checks.

For the automatic-choke carburetor, the supplement cautions against separating the bi-metal and diaphragm assemblies from the carburetor body. Its coverage supports inspection and diagnosis of these assemblies rather than unrestricted internal disassembly.

Electrical Tests and Generator Troubleshooting

The electrical chapters separate ignition, oil-warning, starting, charging and generator faults. Charts for “No Spark or Weak Spark,” “The Battery Is Not Charged” and “Generator Does Not Generate AC/DC” connect symptoms with component tests and replacement decisions.

The generator specifications distinguish condenser-excited units from brushless synchronous exciter units. Main, sub, DC and exciter-coil information is organized by model, while the rotor sections provide diode-test diagrams and winding checks. Rotor-diode service includes a warning about rectifier damage from overheating.

Dedicated EF5000EA/EF6000EA and YG650DE wiring diagrams identify components and wire colors. Control-box and cable-routing views add the physical layout needed to interpret those circuits. Electrical diagnostics involve running equipment and stored electrical energy; the manuals’ warnings cover capacitor discharge and sparking during starter-system checks.

Selected Piston Clearances and Rotor Test Values

The supplement specifies piston-to-cylinder clearance of 0.03–0.07 mm for the YG450D and 0.03–0.05 mm for the YG550D, YG650D, YG650DE, EF5000EA and EF6000EA. These are model-specific inspection specifications, not a single clearance range for every engine.

In the base manual’s rotor inspection section, main field-coil resistance is 30 Ω for EF5000E/YG500D and 32 Ω for EF6000E/YG600D, with a tolerance of ±10% at 20°C (68°F).
