Kawasaki Ninja ZX-6R (ZX636-C1) 2003–2006 Manual Set (P/N 99924-1345-02)

Use the service volume for repair procedures, the assembly volume for pre-delivery setup, and the parts catalog to match exploded-view references to part numbers and quantities.

Searchable PDFs, Bookmarks, and Diagram Detail

Text search and wiring detail: All three PDFs have searchable text and embedded bookmarks. Some diagram labels are embedded in images and are not searchable. Small wiring codes and connector labels require zooming.

The ZIP contains three printable PDFs totaling 702 pages. These totals include covers, introductory material, model-application pages, 11 blank service-manual pages, two blank assembly-manual pages, and one assembly placeholder page.

Engine Repair, DFI Diagnostics, and Chassis Service

The following highlights are a selection of the documented work, rather than a complete contents list. Further topics include air-suction valve testing and fairing removal and installation.

• Engine repair: Step-by-step procedures for engine removal, cylinder-head service, valve seat repair, camshaft timing, piston inspection, and crankcase disassembly.

• DFI troubleshooting: Service-code reading and clearing, fuel-pressure and pump-flow testing, and primary and secondary injector checks.

• Clutch and transmission: Torque-limiter inspection, spring-plate free-play adjustment, and service of transmission shafts, shift drums, forks, and the Positive Neutral Finder.

• Brake service: Front and rear caliper and master-cylinder disassembly, seal replacement, bleeding, and disc wear and runout inspection.

• Suspension and steering: Inverted-fork disassembly, oil-seal replacement, Uni-Trak linkage service, and swingarm and steering-stem bearing replacement.

• Cooling and lubrication: Cooling-system pressure testing, radiator-cap and thermostat checks, water-pump mechanical-seal replacement, and oil-pump and relief-valve service.

• Electrical diagnosis: Alternator, regulator/rectifier, starter, stick-coil, and digital-instrument tests, supported by market-specific wiring diagrams.

The service volume is written primarily for trained mechanics in a properly equipped shop; its basic maintenance and repair coverage also serves owners familiar with mechanics, proper tool use, and workshop procedures.

Model Application and Market Differences

The engine procedures cover the 636 cc DOHC four-cylinder configuration. Maintenance schedules distinguish U.S./Canadian models from other markets.

California coverage includes canister and vapor-separator inspection, separator operation testing, and emission-hose routing. ECU identification tables distinguish market versions.

For immobilizer-equipped models, key registration covers replacement user keys, ignition switches, and ECUs, identifying Kawasaki Key Registration Unit 57001-1582 where required.

Internal Engine Work and Service References

The internal-engine sections provide connecting-rod bolt stretch and angle-tightening methods, bearing selection by component markings, and crankshaft-to-clutch-housing gear matching. Inlet and exhaust shim-selection charts support valve-clearance adjustment.

The non-return cam-chain tensioner warning explains how retightening partially loosened mounting bolts can damage the tensioner and chain.

Lubrication coverage also addresses the oil cooler and oil-pressure measurement. The Coolant Flow Chart and Engine Oil Flow Chart show the associated circulation paths.

DFI Fault Isolation and Electrical Reference

Main-throttle and subthrottle sensor tests use voltage and resistance measurements. Separate procedures check pressure, temperature, and vehicle-down sensors. The fuel-delivery and injector checks help distinguish supply faults from injector electrical faults before replacement parts are selected.

Throttle-body vacuum synchronization and exhaust butterfly valve cable adjustment are covered. The exhaust-valve instructions flag actuator damage caused by pulley-bolt service without proper restraint.

For circuit tracing, the DFI System Wiring Diagram is paired with Terminal Numbers of ECU Connectors and the Relay Box Internal Circuit. Whole-bike wiring diagrams distinguish U.S./Canada/New Zealand, Australia, Malaysia, and the remaining-market configuration.

Factory-set throttle sensors and the subthrottle actuator are covered for testing and assembly replacement; their factory settings are not adjustable.

Wheels, Final Drive, and Suspension Limits

Wheel service includes tire removal and installation, balancing, and axle and hub-bearing inspection. Final-drive procedures cover drive-chain replacement and riveting, sprocket removal, and coupling bearing and damper checks.

Fork oil service and external damping adjustments are documented, with special-tool references including Fork Spring Compressor 57001-1587. The fork cylinder unit and rear shock are not covered for internal rebuilding.

Assembly and System Setup

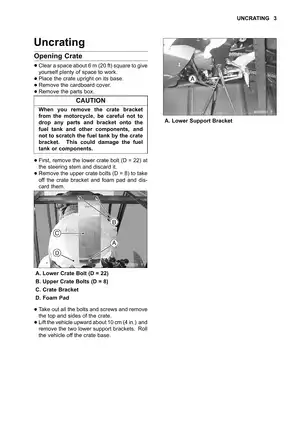

The assembly volume documents factory pre-delivery setup and initial preparation. It covers steering stem head nut installation, windshield mounting, and clutch cable installation. Battery service addresses YTX9-BS activation with the matching electrolyte and initial charging.

Fuel tank removal and installation, cooling-system checks, drive-chain adjustment, and headlight alignment are also covered. Digital-meter setup includes display units and shift-up indicator mode.

The test-ride checklist covers controls, steering, suspension, lighting, starter interlocks, and fluid leaks before customer delivery.

Brake coverage specifies DOT4 fluid, reservoir-cap tightening stages, and bleeding procedures for the front master cylinder, front calipers, and rear circuit. Brake and chassis repair requires a qualified mechanic following the complete factory documentation.

Parts Identification and Workshop Specifications

Exploded parts drawings link reference numbers to part numbers, quantities, and specification codes. The catalog separates California fuel-system parts and lists color-specific bodywork and decals for blue, green, red, and titanium finishes.

Frame, chassis, and engine torque tables include front axle nut and engine oil drain plug specifications, with locking-agent and tightening-sequence notes. Fluid capacities, approved lubricants, adjustment data, clearances, wear limits, and electrical test values accompany the procedures. Fuel-system tool references include Fuel Pressure Gauge Adapter 57001-1593.

A Preview of Valve-Clearance and Injector Test Data

For cold-engine valve-clearance checks at room temperature, the service volume lists inlet clearance of 0.11–0.19 mm and exhaust clearance of 0.22–0.31 mm. The accompanying shim-selection charts relate measured clearance to replacement-shim choice.

Primary-injector resistance is approximately 11.7–12.3 Ω at 20°C (68°F), providing a component-specific reference for the electrical checks alongside the fuel-delivery tests.
