2009–2011 Kawasaki Ninja ZX-6R Service & Repair Manual PDF (P/N 99924-1417-01)

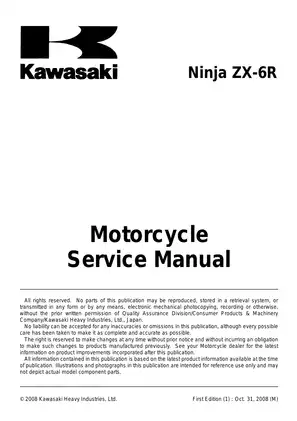

This Kawasaki factory service manual covers the 2009–2011 Ninja ZX-6R, identified as ZX600R9F, with US, Canadian and European model information. Publication 99924-1417-01 is the first edition, dated October 31, 2008.

Searchable Text, Bookmarks and Wiring Detail

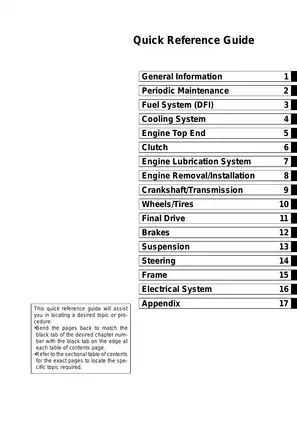

Finding procedures and reading diagrams: The main service text supports PDF text search, and embedded bookmarks cover the chapters and individual procedures. Many labels within wiring diagrams and illustrations are outside the searchable text. Small wiring labels in the checked diagrams are readable when enlarged.

One printable English-language PDF contains 675 pages: 10 preliminary pages, including three blanks; 664 chapter and appendix pages, including four blanks; and one final Model Application page.

DFI Fault Diagnosis, Engine Repair and Chassis Service

These selected topics highlight the main workshop coverage. The manual also provides air-switching valve tests and headlight aiming procedures.

• DFI and fuel delivery: Self-diagnosis, service-code troubleshooting, fuel-pressure testing, injector checks, throttle body assembly service and exhaust butterfly valve actuator inspection.

• Engine and transmission: Engine removal and installation, cylinder-head and valve work, crankcase separation, crankshaft inspection, clutch service and transmission disassembly.

• Scheduled maintenance: The periodic maintenance chart links to step-by-step procedures for engine vacuum synchronization, valve-clearance adjustment, fluid changes and spark plug replacement.

• Cooling and lubrication: Cooling-system pressure testing, thermostat inspection, water-pump service, oil-pressure checks, oil-pump inspection and pressure-relief valve service.

• Brakes and chassis: Caliper and master-cylinder service, brake bleeding, wheel-bearing inspection, drive-chain replacement, inverted front-fork service and steering-stem work.

• Electrical systems: Regional wiring diagrams, charging and starting tests, crankshaft sensor peak-voltage inspection and immobilizer diagnosis and key registration on equipped models.

Written primarily for trained mechanics in a properly equipped shop, the manual also supports owners doing basic maintenance and repair who understand mechanics, tools and workshop procedures.

DFI Diagnosis and Equipped-Model Systems

The DFI chapter combines diagnostic flowcharts, service-code tables and circuit-specific checks. Sensor voltage and resistance tests, injector power-supply checks and ECU wiring-continuity inspections help distinguish a component fault from a harness or supply problem before replacement parts are selected.

Immobilizer procedures apply to equipped models. Key registration and replacement cases distinguish work involving user keys, the ignition switch and the ECU. The electrical tool list identifies Key Registration Unit 57001-1582; crankshaft sensor testing specifies Peak Voltage Adapter 57001-1415.

The exhaust butterfly valve actuator section warns that unsupported pulley-bolt removal or tightening can damage the actuator. Its handling precautions matter when separating an actuator problem from a cable or adjustment issue.

Engine Work, Maintenance and Fluid Systems

Step-by-step engine procedures extend beyond routine servicing to camshaft installation, valve-seat repair, piston and ring inspection, and internal transmission work. Exploded views identify assembly relationships alongside tightening, lubrication and locking-agent requirements.

The non-return camshaft chain tensioner receives specific handling cautions: crankshaft movement with the tensioner removed can disturb valve timing and damage the valves.

The Coolant Flow Chart and Engine Oil Flow Chart show the fluid circuits alongside their inspection and repair sections. Maintenance coverage also includes the NGK CR9E spark plug specification and its replacement schedule.

Forks, Brakes and Routing References

Front-fork instructions cover oil changes, disassembly, seal replacement and reassembly, with separate oil quantities for an oil change and a completely dry assembly. Rear suspension coverage includes damping and spring-preload adjustment, shock removal and Uni-Trak linkage inspection.

The appendix’s Cable, Wire, and Hose Routing views help check harness and hose placement during reassembly under the fairings. Separate Wiring Diagrams for US, CAL and CA Models and Wiring Diagrams for Other Models support selection of the appropriate electrical layout.

Adhering to proper shop safety protocols and using appropriate personal protective equipment is essential when handling heavy chassis components or working near pressurized fuel systems.

Specifications and Technical Data

The specification tables list a 13.3:1 compression ratio. Cylinder-head installation specifies an initial 15 N·m and final 39 N·m for the M9 bolts, with the prescribed tightening sequence and molybdenum disulfide oil solution on the threads and both sides of the washers.

Fuel pump bolts are specified at 9.8 N·m, with non-permanent locking agent and the specified tightening sequence. Component torque tables, wear limits and electrical test specifications accompany the relevant service sections.
