BMW C1 & C1 200 Scooter Repair Manual 1997–2000 (P/N 01 71 0 136 450)

458 Pages • 1 Printable PDF (English) • Download

4.5starstarstarstarstar_half(4)
$15.99 Instant Download / No Shipping Fees
or

Credit/debit card, Apple Pay or Google Pay

30-day refunds for defective files or manuals not as described. Refund policy.

print
Save & print
Keep a copy on your device
lock
Secure Payment
Stripe

BMW Models Covered & Key Technical Specifications

Models: C1, BMW C1 200

Sub-models / Variants: lubricated and unlubricated drive variators (C1 and C1 200)

Model Years: 1997–2000 (1997, 1998, 1999, 2000)

Serial Numbers: C1 alternator/ignition cover fasteners: up to engine no. 745 594; from engine no. 745 595.


  • Engine Displacement: 125 cm³ (C1), 176 cm³ (C1 200)

  • Power Output: 11 kW/15 hp @ 9,250 rpm (C1), 13 kW/18 hp @ 9,000 rpm (C1 200)

  • Engine Type: Single-cylinder 4-stroke, 4-valve DOHC, liquid-cooled, automatic transmission

  • Max Torque: 12 Nm @ 6,500 rpm (C1), 17 Nm @ 6,500 rpm (C1 200)

  • Compression Ratio: 13.0:1 (C1), 11.5:1 (C1 200)

  • Valve Clearance (Cold): Inlet 0.05–0.14 mm, Exhaust 0.20–0.29 mm

BMW Manual Features & Selected Content Preview

This March 2001 BMW Motorrad repair manual (P/N 01 71 0 136 450, publisher code UX-VS-2) covers the 1997–2000 C1 and C1 200 in standard form and with factory-approved accessories.

PDF Search, Bookmarks, and Page Count

Text search and navigation: Search the service text or use the embedded bookmarks to jump to chapters and individual procedures. Small labels in the connector and instrument-cluster illustrations are readable when enlarged. Labels embedded in illustrations may not appear in text search.

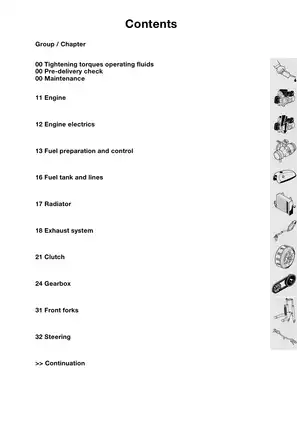

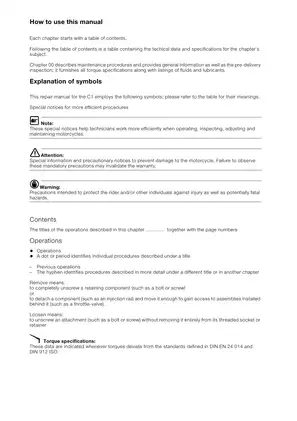

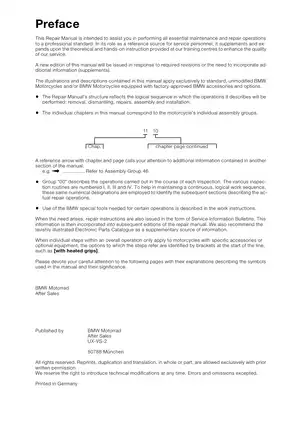

One printable English PDF contains 458 pages, including the cover and introductory material, three front reference sheets for scheduled maintenance, pre-delivery checks, and service data, and the original blank or chapter-marker-only pages.


Engine, Variator, ABS, and C1 Body Service

This selection of workshop topics highlights the repair coverage. The manual also includes procedures for windshield replacement and headlight aim.

  • Engine repair: DOHC cylinder-head service, valve-seat inspection and regrinding, timing-chain replacement, crankcase separation, and crankshaft bearing checks.
  • Belt drive and clutch: Drive-belt replacement, service for lubricated and unlubricated drive variators, centrifugal-clutch inspection, and reduction-gear disassembly.
  • Fuel injection and cooling: Injector and BMS control-unit replacement, fuel-pump removal, water-pump seal replacement, thermostat replacement, and cooling-system leak testing.
  • Brakes and suspension: ABS sensor-gap adjustment, hydraulic brake bleeding, Telelever leading-link service, fork seal replacement, and wheel-bearing inspection and replacement.
  • C1 body and restraints: Easy-lift cable adjustment, stand and overload-guard service, shoulder-bar alignment checks, and central seat-belt release testing.
  • Electrical equipment: Harness routing and connector identification, starter and alternator replacement, instrument-cluster service, DWA alarm programming, and wiper-system repairs.

Written as a reference for BMW service personnel, the manual supplements workshop training and identifies the BMW special tools used in specific procedures.

Engine, Fuel Injection, and Cooling

The engine chapter gives separate piston dimensions and ring wear data for the C1 and C1 200. It also covers valve-guide inspection, camshaft bearing measurements, and crankshaft bearing-shell replacement. Engine and lubrication illustrations accompany the component descriptions, and the torque tables cover powertrain mounts and cylinder-head fasteners.

The powertrain-cradle procedure identifies the movement limit that protects attached hoses and wiring. Water-pump service explains how the wrong shaft-removal tool can damage the pump gear and how reusing a damaged shaft can cause a leak.

Fuel-system coverage includes the throttle-valve assembly, injector mounting hardware, and fuel-filter replacement. Cooling procedures cover radiator and fan replacement, filling and bleeding, and leak testing. A coolant circuit illustration shows hose and pipe routing, and the capacity table lists the cooling circuit and expansion tank separately.

Variator Versions and Reduction Gear

The lubricated and unlubricated drive variators use different spacers and assembly procedures. The illustrations help identify the installed version before selecting parts. The manual also identifies a later driven variator by its guide-stud arrangement.

A gearbox cutaway accompanies the shaft, bearing, and oil-seal procedures. The specifications distinguish the two models by final-drive ratio and gear tooth counts. Clutch and variator service identifies the required holding tools, including BMW retainer No. 11 7 521.

ABS, Telelever, and Wheel Service

Separate brake-line procedures cover vehicles with and without ABS. BMW specifies MoDiTeC/DIS plus for ABS bleeding because air can remain in the control circuits. The manual reserves work on the ABS control unit for authorized BMW service facilities.

Suspension procedures cover fork bushings, leading-link bearings, steering bearings, and rear spring struts. The brake and wheel chapters show when to check the ABS sensor gap after replacing related components.

Easy-Lift Mechanism, Frame, and Seat Belts

The stand and articulated-joint procedures distinguish the later single-spring mechanism and cover Bowden cable adjustment and overload-guard replacement. Frame procedures include crash-element inspection, roof-bar replacement, and shoulder-bar alignment checks.

Seat-belt coverage includes inertia reels, belt guides, and the test template for checking the central release mechanism. The switches are integral to the buckles, and each buckle and Bowden cable is replaced as an assembly.

Electrical References and Optional Equipment

Harness illustrations show the standard connectors and the optional-equipment adapter, with connector colors and terminal counts. The instrument-cluster illustration pairs numbered connections with wire colors. The engine electrics chapter covers the ignition coil, TDC trigger, starter, and alternator.

Other procedures cover the wiper motor and washer equipment, DWA alarm operating modes, Fun audio components, and Topcase locks. The scheduled maintenance section includes reading stored faults with MoDiTeC/DIS plus.

Cylinder-Head and Rear-Axle Torque Preview

The C1 cylinder-head procedure lists 30 ± 1 Nm for the collar nuts and 10 Nm for the separate securing bolts. The rear-axle service data for both models specify 130 Nm for the six-point final-drive shaft nut and identify it as a single-use fastener.
