Kawasaki Jet Ski 800 SX-R JS800-A1 Factory Service & Repair Manual (P/N 99924-1314-01)

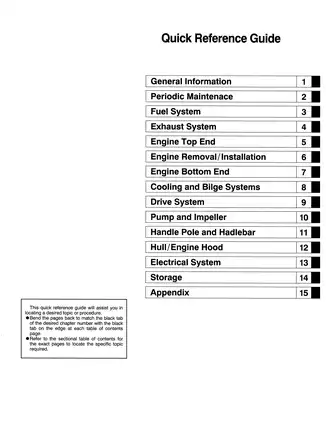

• Model-specific coverage: Covers the 2003 Kawasaki JET SKI 800 SX-R, model JS800-A1, with beginning hull number KAW60001□203; the boxed character varies from one machine to another. The 254-page PDF reproduces Kawasaki Part No. 99924-1314-01 and contains 253 pages of manual material, including covers, plus one legacy reseller order sheet.
• Engine and internal repair: Covers engine removal and installation, mount and engine-bed shimming, top-end disassembly and assembly, compression testing, crankcase splitting and resealing, magneto flywheel and stator work, and crankshaft/connecting-rod inspection.
• Fuel, intake, and exhaust systems: Details the dual Mikuni BN40-38 carburetors, synchronization and high-altitude adjustment, carburetor overhaul and pop-off testing, fuel-pump and reed-valve service, plus expansion-chamber, exhaust-manifold, and water-box inspection.
• Drive and pump service: Follows drive-shaft and holder removal, bearing and grease-seal replacement, coupling alignment, pump removal and disassembly, impeller and pump-case inspection, bearing installation, reassembly, and clearance checks.
• Electrical diagnosis: Includes the complete wiring diagram, battery and charging-system checks, starter-motor overhaul, starter-relay and regulator/rectifier tests, digital CDI diagnosis, ignition-coil and crankshaft-sensor peak-voltage tests, switch checks, and temperature-sensor testing.

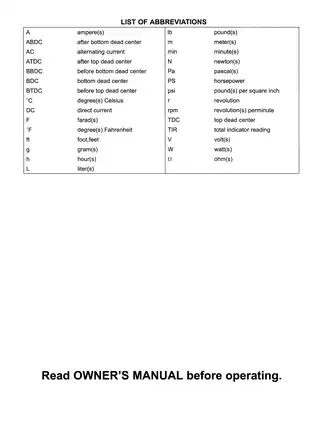

• Factory reference material: Provides major-system exploded views, torque and locking-agent tables, specifications and service limits, a fuel-system diagram, an ignition troubleshooting flowchart, cable/wire/hose routing views, general symptom troubleshooting, and storage/reactivation procedures.

This is a model-specific factory service manual, not a generic owner's handbook. It documents the 781 mL, two-cylinder, crankcase-reed-valve, water-cooled two-stroke with premix lubrication, twin carburetors, and digital magneto CDI ignition. Kawasaki states that the manual is designed primarily for trained mechanics in a properly equipped shop. It can also support an owner performing basic maintenance and repair, provided that person understands mechanics, proper tool use, and workshop procedures; work beyond that level is directed to qualified mechanics.

Engine and Fuel-System Depth

The top-end section goes beyond removal notes. It covers cylinder-head and cylinder service, piston and ring assembly, compression measurement, head-warp and cylinder-wear checks, piston-to-cylinder clearance, boring and honing, oversize pistons, and ring inspection. The bottom-end chapter adds coupling and flywheel service, stator removal and installation, crankcase assembly, crankshaft runout, connecting-rod bend and twist, big-end clearances, bearing inspection, and crankshaft assembly specifications. Engine installation also addresses preserving mount-shim positions and checking the assembled engine for correct fit and leaks.

One important repair-scope limit is explicit: the manual does not describe crankshaft disassembly because that work requires highly specialized equipment. A worn or damaged crankshaft is to be replaced as an assembly or rebuilt by a properly equipped shop.

The fuel chapter includes throttle- and choke-cable work, factory carburetor synchronization, mixture and altitude adjustment, carburetor removal, disassembly, cleaning, assembly, pop-off pressure inspection, and float-arm/diaphragm adjustment. It also covers the flame arrester, inlet manifold, reed valves, fuel tank, filler, filter screens, vent check valve, and fuel tap. Kawasaki warns that each carburetor's mixture settings were established individually with a flow meter; forcing a mixture screw against its seat can damage the screw or carburetor, while an excessively lean high-speed setting can damage the engine.

Diagnostics, Tools, and Illustrations

Electrical coverage is built around testing, not just parts replacement. The manual includes starter brush, armature, commutator, relay, charging, ignition-coil, crankshaft-sensor, CDI, start/stop/interlock switch, temperature-sensor, and fuse checks. Diagnostic aids include the whole-watercraft wiring diagram, fuel-system diagram, ignition-system troubleshooting flowchart, battery standard-charge chart, appendix routing views, and system-specific exploded assemblies.

Specified tool callouts include Compression Gauge 57001-221, Piston Pin Puller Assembly 57001-910, Rotor Puller 57001-1258, Impeller Wrench 57001-1228, and Hand Tester 57001-1394. The pump chapter also identifies dedicated bearing-removal and driver tooling, while exploded-view fastener tables mark torque, locking-agent, sealant, grease, and tightening-sequence requirements.

Chassis, Maintenance, and Workshop Cautions

Steering-cable centering and replacement, handlebar-pivot service, handle-pole removal, engine-hood hardware, bumpers, rivets, deck pads, and a full hull-replacement component-transfer sequence are covered. Periodic maintenance includes cooling and bilge flushing, fuel-screen and flame-arrester service, impeller inspection, cable lubrication, fastener checks, battery condition, and seasonal lay-up and return-to-service work.

Top-end assembly cautions are specific: removed piston-pin snap rings must not be reused because a weakened ring can escape and score the cylinder wall, and forcing the cylinder block over mispositioned rings can cause damage. Fuel vapor, ignition voltage, rotating pump components, exhaust gas, cooling-water supply, and water ingestion all present serious hazards; follow the manual's warnings and use qualified service support whenever the work exceeds your training or equipment.
