Toyota 7FB10, 7FBH10, 7FB14, 7FBH14, 7FB15, 7FBH15, 40-7FB15, 7FB18, 7FBH18, 7FB20, 7FBH20, 40-7FB20, 7FB25, 7FBH25, 40-7FB25, 7FB30, 7FBJ35 Electric Manual (P/N CE316-4)

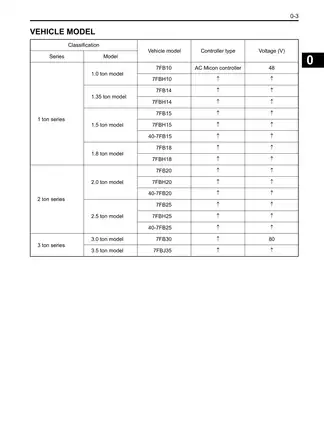

• Covers the Toyota 7FB10, 7FBH10, 7FB14, 7FBH14, 7FB15, 7FBH15, 40-7FB15, 7FB18, 7FBH18, 7FB20, 7FBH20, 40-7FB20, 7FB25, 7FBH25, 40-7FB25, 7FB30, and 7FBJ35 AC Micon electric forklifts.

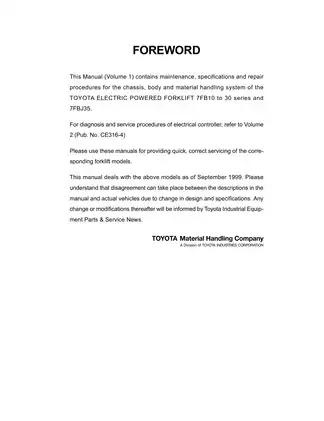

• Toyota Volume 1, Pub. No. CE315-4: a 443-page PDF covering maintenance, specifications, and repair procedures for the chassis, body, controller hardware, and material-handling system. The manual covers the listed models as of September 1999; this file is the third printing dated January 2006.
• Controller and charging coverage includes on-vehicle and off-vehicle charger troubleshooting, timer testing, controller-panel removal, standard and SAS power-steering control panels, board inspection, display checks, and accelerator, brake, and material-handling switch adjustment.
• Drive-system procedures cover drive, pump, and power-steering motor removal and internal inspection, plus drive-unit and differential-case disassembly, reassembly, and service-standard checks.
• Chassis repair sections detail front and rear axle work, rear-axle cylinder service and wheel alignment, hydrostatic steering-valve repair, brake overhaul and bleeding, and braking-force, pedal, and parking-brake adjustment.
• Material-handling procedures include V, SV, FV, and FSV mast service; lift-bracket and roller work; chain and fork inspection; lift and tilt cylinder repair; oil-pump testing; control-valve overhaul; relief-pressure adjustment; and SAS component matching.
• Reference material includes charger wiring and tap-layout diagrams, controller connector and board-test views, hydraulic-system and control-valve circuit diagrams, an SAS configuration drawing, SAS/non-SAS connector and wiring diagrams, Toyota SST part numbers, torque tables, capacities, wear limits, pressure-test data, and electrical test specifications.

This factory repair manual is suited to technicians who already understand battery-electric forklift service and have access to the specified meters, hydraulic test equipment, lifting equipment, and Toyota special service tools. It goes well beyond routine maintenance, with illustrated removal, installation, disassembly, inspection, reassembly, testing, and adjustment procedures for the assemblies covered in Volume 1.

Electrical, Controller, and Driveline Repair

The battery chapter provides compartment and required-weight data, service standards, inspection procedures, and battery removal and installation. Separate on-vehicle and off-vehicle charger sections identify applicable charger configurations and cover components, wiring, transformer taps, magnet switches, timer tests, service standards, and symptom-based troubleshooting.

Controller content is hardware-focused. It explains the traveling/load-handling controller and the separate PS controller, including the different standard and SAS control panels. Connector-level board inspection tables support voltage and resistance checks, while the repair section covers control-panel removal, controller disassembly and reassembly, display inspection, and adjustment of the accelerator potentiometer and operating switches.

The three AC motor chapters distinguish the drive, pump, and power-steering units. Production changes are called out rather than blended together: the drive-motor component and removal information is split at December 2000, the hydrostatic steering-valve coverage separates September 1999-August 2000, September 2000-January 2003, and February 2003-onward builds, and the rear axle is divided at November 2002. These breaks matter when selecting the correct component layout and repair procedure.

Hydraulic, Mast, Brake, and SAS Coverage

The material-handling chapters connect the hydraulic-system layout to practical tests for natural drop, forward tilt, and oil leakage. Mast coverage includes complete V-mast removal and teardown, lift-bracket repair, roller service, chain adjustment, and variant-specific mast adjustment for V, SV, FV, and FSV configurations. Separate cylinder chapters cover rear and front lift cylinders, tilt cylinders, flow-regulator and safety-down valves, rod-shim adjustment for uneven lifting, and tilt-angle correction.

SAS coverage identifies the steering-knob correcting valve, tire-angle sensor, swing-lock cylinder, tilt-angle sensor, load and speed sensors, mast-height switches, and the factory matching procedure required after related repair or replacement. The manual warns that contaminated hydraulic oil can impair the precision valves in the SAS control valve. It also cautions that omitted controller insulating sheets can damage transistor assemblies or cause a critical contactor failure, so the reassembly checks are not optional details.

The brake section is configuration-specific, separating the 1-ton/J3.5-ton front brake from the 40-7FB15, 2-ton, and 3-ton arrangements. It includes wheel-cylinder and master-cylinder repair, air bleeding, braking-force inspection, and parking-brake and pedal adjustment. Steering coverage adds symptom-based troubleshooting, pressure inspection and adjustment, and hydrostatic-valve and PS-pump service.

Scope and Safety

This Volume 1 includes electrical hardware inspection and wiring references, but it does not include the multi-display analyzer functions or the controller error-code diagnostic procedures. Toyota assigns that work to Volume 2, Pub. No. CE316-4, which is sold separately.

Battery isolation, controller-capacitor discharge, specified jacking and hoisting points, and residual hydraulic pressure are all addressed in the factory safety notes. Those procedures are especially important before controller, brake, steering, mast, or hydraulic repair work begins.
