Toyota 7FBCU Forklift Repair & Parts Manual Set, 2005 (P/N 08401-89501-71)

1,279 Pages • ZIP Download: 5 Printable PDFs • 36.36 MB

4.5starstarstarstarstar_half(2)
$29.89 Instant Download / No Shipping Fees
or

Credit/debit card, Apple Pay or Google Pay

30-day refunds for defective files or manuals not as described. Refund policy.

print
Save & print
Keep a copy on your device
lock
Secure Payment
Stripe

Toyota Models Covered & Key Technical Specifications

Models: 7FBCU15, 7FBCU18, 7FBCU20, 7FBCU25, 7FBCU30, 7FBCU32, 7FBCU35, 7FBCU45, 7FBCU55, 7FBCHU25, 30-7FBCU15, 30-7FBCU18, 30-7FBCU20, 30-7FBCU25, 30-7FBCU30, 30-7FBCU32, 30-7FBCU35, 30-7FBCU45, 30-7FBCU55, 30-7FBCHU25

Sub-models / Variants: 48V Spec, Dead-Man Brake, E.E.C. Spec, Electric Power Steering, EZ Pedal, Load Handling Chopper, Motor Brush Warning, UL-Approved Model Type ES, 36V (repair manual), Dust-Proof (30- prefix), High-Capacity Battery Compartment (7FBCHU25, 30-7FBCHU25)

Model Year: 2005


  • Inner mast roller clearance (V mast): 0 – 0.8 mm (0 – 0.031 in)

  • Lift-cylinder piston rod bend limit: 2.0 mm (0.079 in)

  • Natural mast drop limit: 45 mm (1.77 in) over 15 minutes, with the mast vertical, standard load on the forks, forks raised 1 – 1.5 m (40 – 59 in), and key switch OFF

Toyota Manual Features & Selected Content Preview

Publication Pages
Toyota repair manual, Volumes 1 & 2 — 7FBCU15/18/20/25/30/32/35/45/55, 7FBCHU25, and corresponding 30-prefixed variants 918
Standalone repair appendices — SST lists, service standards, connector references, and electrical diagrams; duplicates the appendices in the repair manual 67

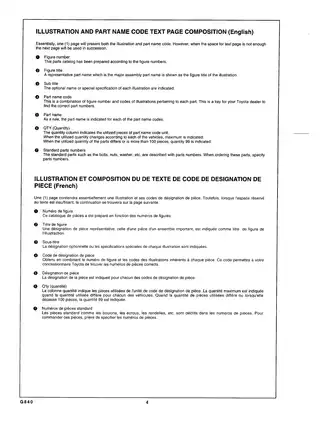

Parts catalog G840-1 — 7FBCU15/18/20/25/30/32, 7FBCHU25, and corresponding 30-prefixed variants; January 2005; P/N 08401-89501-71 147
Parts catalog G841-1 — 7FBCU35/45/55 and corresponding 30-prefixed variants; January 2005; P/N 08411-89501-71 124
Operator-presence-system electrical appendix — connector, connecting, and wiring diagrams for the 15–32 and 35–55 groups 23
Dual-contactor conversion instructions — contactor-panel, harness, and CPU-ROM changes Excel workbook
Toyota TNB-06-09, “7FBCU, 7FBE and 7FB ROM Write,” dated July 31, 2006 — embedded in the dual-contactor workbook 6, embedded
Key-off lighting modification drawing Excel workbook

The repair manual cross-references parts-catalog figures, allowing assembly identification to be carried through to the illustrated parts listings. The electrical supplements address specific wiring and software changes.

Coverage limits: The repair manual’s base coverage reflects vehicles as of July 2001. Detailed SAS function and operating explanations are referred to separate New Model Feature publication PU312, which is not included.

The OPSS file is an electrical appendix, not a complete OPSS repair manual. The opening SIB/TNB/Hotline reference index, revised January 31, 2008, is not a complete bulletin collection; the ROM-write bulletin listed above is included inside the Excel workbook.

PDF Search, Bookmarks, and Diagram Detail

Text search and diagram detail: The main repair PDF is partly searchable through its existing OCR layer and has chapter bookmarks; some illustration and reference pages lack searchable text. Both parts catalogs have section bookmarks but no PDF text search. The standalone repair appendices have neither text search nor bookmarks. The OPSS appendix and embedded ROM-write bulletin have searchable text but no bookmarks. Small wiring labels require zooming on the checked diagram pages.

The ZIP contains five printable PDFs totaling 1,279 pages, plus two Excel workbooks. That total includes the repair manual’s two-page bulletin index and its appendices, including the appendix content repeated in the separate file. The six-page bulletin embedded in Excel is additional to the standalone PDF total.


Electric Drive, Mast, and Control-System Work

These selected contents outline the main workshop coverage. Further topics include battery-hood and counterweight removal, along with fuse locations and circuit assignments.

  • Controller diagnostics: Board and harness checks, diagnosis-code troubleshooting, no-code fault isolation, Analyzer monitoring, active tests, Tuning, Option Set, and Matching.

  • Motors and drivetrain: Step-by-step removal, disassembly, inspection, and reassembly procedures for drive, pump, and power-steering motors, drive units, and differentials.

  • Axles, steering, and brakes: Front and rear axle service, hydrostatic steering-valve repair, front-brake overhaul, brake bleeding, and dead-man brake inspection and adjustment.

  • Masts and hydraulics: V, FV, FSV, and QFV mast adjustments, lift brackets, chains, lift and tilt cylinders, oil-pump testing, and control-valve repair.

  • SAS components: Sensor replacement, swing-lock cylinder removal and installation, fork-height switch service, and matching after relevant repairs or component changes.

  • Diagrams and service data: Wiring and connecting diagrams, connector drawings, hydraulic system diagrams, torque tables, electrical test values, lubricant capacities, adjustment data, and wear limits.

  • Battery and maintenance: Battery removal, electrolyte and insulation checks, lubrication charts, periodic inspection schedules, and replacement tables for parts and lubricants.

It is suited to experienced electric-forklift technicians and properly equipped repair shops because the procedures assume safe traction-battery isolation, lifting equipment, electrical test instruments, and access to Toyota special service tools.

Controller Layouts and Fault Isolation

The 15–32 group uses combined traveling/material-handling control layouts and a dedicated power-steering motor. The 35–55 group separates traveling and material-handling controllers and uses No. 1/No. 2 pump arrangements. Chopper and chopper-less configurations receive separate treatment.

Connector-component views and harness inspection charts help distinguish wiring faults from controller-board faults before components are replaced. The multi-display chapters explain diagnostic memory, sensor monitoring, and active tests rather than providing only a fault-code list.

Listed tooling includes motor hook P/N 09010-10260-71, Toyota electrical tester P/N 09082-76002-71, and AC controller diagnosis kit P/N 09230-21440-71.

Toyota warns that poor controller-connector engagement can damage internal controller elements.

Drive Units, Hydraulics, and Mast Adjustment

Drive-unit service is divided between standard 15–18 units, 15–18 dead-man-brake and 20–32 units, and 35–55 assemblies. Exploded drive-unit views accompany internal inspection and reassembly information.

Hydraulic diagnosis includes natural-drop, forward-tilt, and cylinder oil-leak tests. The mast sections explain roller and chain adjustment and lift-cylinder rod-shim correction for uneven lifting; cylinder and oil-control-valve views show the related internal assemblies.

SAS work connects sensor replacement with the required matching procedures. The sealed swing-lock cylinder is not rebuildable: disassembly admits air and makes the cylinder non-reusable.

Electrical repair requires traction-battery isolation and controller-capacitor discharge. The truck and raised mast components must be supported with correctly rated equipment before service.

Parts Identification and Electrical Supplements

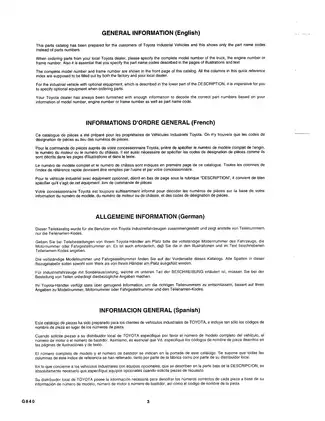

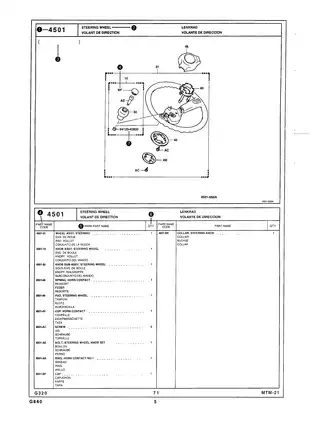

The parts catalogs provide English, French, German, and Spanish listings. They use figure-based part-name codes rather than a conventional full service-part-number list; standard hardware is routinely numbered. Toyota directs users to supply the exact model, frame number, option information, and part-name code for dealer identification of the correct service part.

The dual-contactor workbook separates ROM compatibility by CPU-board P/N 24210-21440-71, 24210-21441-71, and 24210-21442-71. It supplies CN137/CN112 harness views and contactor checks. Its embedded ROM-write bulletin adds software-update instructions and a CF error chart.

The key-off lighting workbook supplies a relay-modification drawing and expressly warns that the change voids the truck’s UL status.

Examples from the Battery Service Standards

The battery specifications list electrolyte specific gravity of 1.280 at full charge and 1.150 at the end of discharge, both referenced to 20°C (68°F).

The insulation-inspection section specifies battery-to-case resistance of at least 1 MΩ. These entries illustrate the distinction between charge-condition data and electrical insulation checks.
