Toyota 7FGCU15, 7FGCU18 & 7FGCSU20 Forklift Repair Manual Set, 1998–2009 (P/N CU028)
1,600 Pages • ZIP Download: 8 Printable PDFs • 37.02 MB
Toyota Models Covered & Key Technical Specifications
Models: 7FGCU15, 7FGCU18, 7FGCSU20, 7FGU15, 7FGU18, 7FGU20, 7FGU25, 7FGU30, 7FGU32, 7FDU15, 7FDU18, 7FDU20, 7FDU25, 7FDU30, 7FDU32, 7FGCU20, 7FGCU25, 7FGCU30, 7FGCU32
Models & Model Codes:
7FGCU15 — Cushion tire, 1 ton series
7FGCU18 — Cushion tire, 1 ton series
7FGCSU20 — Cushion tire, 1 ton series, USA only
7FGU15 — Pn15
7FGU18 — Pn18
7FGU20 — Pn20
7FGU25 — Pn25
7FGU30 — Pn30
7FGU32 — Pn32, USA and Canada only
7FDU15 — Pn15
7FDU18 — Pn18
7FDU20 — Pn20
7FDU25 — Pn25
7FDU30 — Pn30
7FDU32 — Pn32, USA and Canada only
7FGCU20 — Cu20
7FGCU25 — Cu25
7FGCU30 — Cu30
7FGCU32 — Cu32, USA and Canada only
Sub-models / Variants: Pneumatic tire, Cushion tire, 1 ton, 2 ton, 3 ton. Mini Lever supplement coverage only for 7FGF15, 7FGF18, 7FGF20, 7FGF25, 7FGF30, 7FDF15, 7FDF18, 7FDF20, 7FDF25, 7FDF30, 7FGJF35, and 7FDJF35.
Trade Names: 7FGCU, 7FGU, JENEO
Model Years: 1998–2009 (1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009)
-

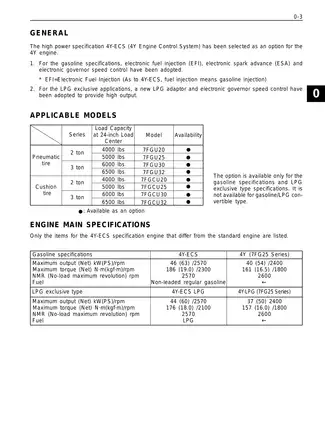

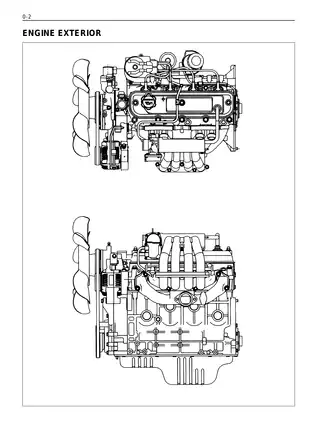

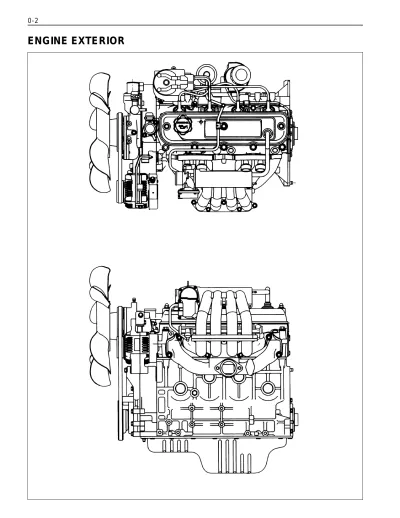

Engine: 4Y gasoline (7FGCU15, 7FGCU18, 7FGCSU20, 7FGU15–32, and 7FGCU20–32), 1DZ-II diesel (7FDU15–32), 4Y-LPG exclusive type (7FG25 series), optional 4Y-ECS gasoline engine or 4Y-ECS LPG exclusive type (7FGU20–32 and 7FGCU20–32)
-

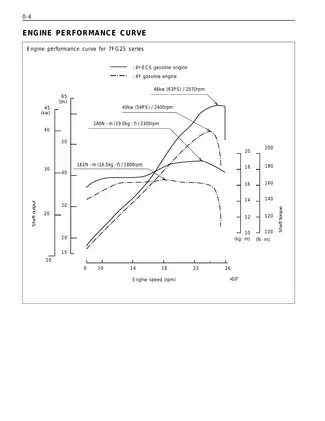

Maximum Output (4Y-ECS Gasoline): 46 kW (63 PS) / 2570 rpm
-
Maximum Output (4Y-ECS LPG): 44 kW (60 PS) / 2570 rpm
-
Maximum Torque (4Y-ECS Gasoline): 186 N-m (19.0 kgf-m) / 2300 rpm
-
Maximum Torque (4Y-ECS LPG): 176 N-m (18.0 kgf-m) / 2100 rpm
-
No-load Maximum Revolution: 2570 rpm (4Y-ECS gasoline and LPG exclusive)
-
Fuel System: Electronic Fuel Injection (EFI) on 4Y-ECS gasoline engines. The 4Y-ECS LPG exclusive type uses an LPG adapter and electronic governor.
-
Fuel Injection Pressure: 284 kPa (2.9 kgf/cm²) / 41 psi above intake manifold pressure (4Y-ECS gasoline)
-
Throttle Body Bore Diameter: 40 mm (4Y-ECS gasoline and LPG exclusive)
-
Transmission: EXEDY torque converter (T/C) for 7FGCU15, 7FGCU18, and 7FGCSU20. Aisin T/C for 7FGU15–32, 7FDU15–32, and 7FGCU20–32, with a 1-speed standard transmission and a 2-speed option for pneumatic-tire 2 and 3 ton series.

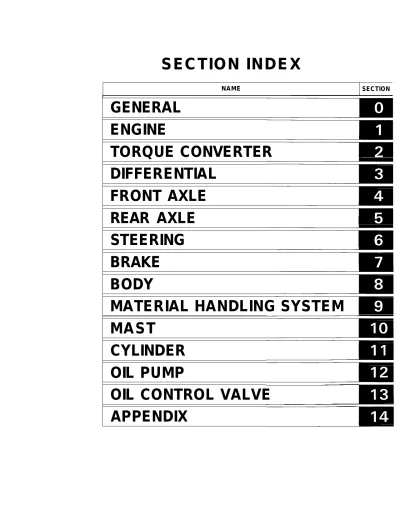

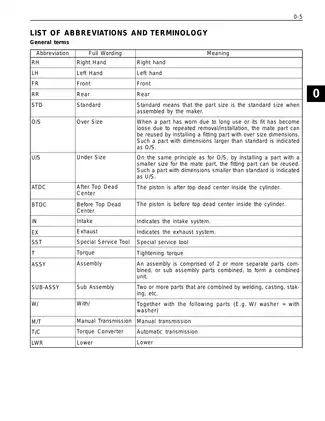

Toyota Manual Features & Selected Content Preview

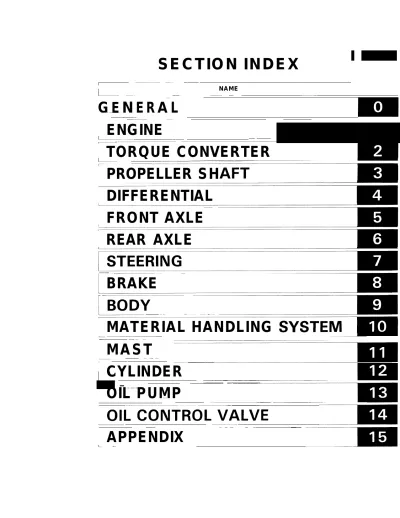

| Publication | Pages |
|---|---|
| Forklift Repair Manual (P/N CU028) — cushion-tire 7FGCU15, 7FGCU18, and U.S.-market 7FGCSU20. July 2000 edition. | 432 |
| Forklift Repair Manual (P/N CU027-2) — pneumatic-tire 7FGU15–32 gasoline and 7FDU15–32 diesel models, plus cushion-tire 7FGCU20–32 gasoline models. October 1999 edition. | 572 |
| Operator Presence Sensing Repair Supplement (P/N CU042) — 7FGCU15, 7FGCU18, and 7FGCSU20. August 2005 configuration. | 137 |
| Operator Presence Sensing Repair Supplement (P/N CU040) — 7FGU15–32, 7FDU15–32, and 7FGCU20–32. August 2005 configuration. | 146 |
| 4Y-ECS Repair Supplement — 7FGU20–32 and 7FGCU20–32 with gasoline or LPG-exclusive 4Y-ECS. October 2000 configuration. | 109 |
| 4Y-ECS Outline of Main Components — system design and operating principles for the October 2000 gasoline and LPG-exclusive option. | 88 |
| Mini Lever Repair Supplement (P/N CE033) — 7FGF/7FDF15–30 and 7FGJF/7FDJF35. December 2002 edition. | 114 |
| Service bulletin, technical brief, and tech tip index — 7FG(D)U35–80 and 7FGCU35–70. February 2008 revision. | 2 |
Use the base chassis manual for the truck and the matching OPS supplement for the August 2005 revisions. The 4Y-ECS outline explains how the engine controls work, and the repair supplement provides component tests and fault tracing.
Repair scope: Internal 4Y and 1DZ-II engine overhaul requires the separate engine manuals. The OPS wiring appendixes cover revised circuits, with earlier wiring in the base manuals and a separate service bulletin referenced for some circuits on the 7FGU/7FDU and 7FGCU20–32 models. Mini Lever coverage is limited to the models in its table row. The larger-model file is a reference index for separately published bulletins, briefs, and tech tips.
Text Search, Bookmarks, and Wiring Detail
Finding service information: The chassis manuals and 4Y-ECS repair supplement have chapter bookmarks and searchable text, although some diagram labels are outside the text layer. The 4Y-ECS outline and Mini Lever supplement have some unusable bookmark entries. The OPS supplements have searchable text and no embedded bookmarks. Small pin numbers and wire codes on dense diagrams are easier to read at higher zoom.
The ZIP contains 1,600 pages across eight printable PDFs, including the two-page larger-model index. Front matter, appendixes, and blank pages within the files are included in the total.
Drivetrain, Mast Hydraulics, and Controller Diagnostics
These are selected service topics. The chassis manuals also include periodic lubrication schedules and procedures for the optional EZ Pedal.
- Drivetrain: Engine removal and installation, one- and two-speed transmission service, clutch-drum inspection, torque converter stall testing, and propeller shaft and differential repair.
- Axles, steering, and brakes: Front and rear axle work, steering inspection, rear wheel alignment, brake overhaul and bleeding, and inching-pedal adjustment.
- Mast and hydraulics: V, FV, FSV, and QFV mast service, lift and tilt cylinder repair, pump and control valve work, pressure checks, and chain, roller, and fork adjustment.
- 4Y-ECS: Gasoline EFI and electronic spark advance, LPG adapter and governor service, tune-up, component replacement, and troubleshooting with or without a stored code.
- OPS and SAS: Seat-switch, sensor, and solenoid checks, lift-lock and tilt-control diagnosis, plug-in analyzer functions, active tests, resets, and customization.
- Electrical and hydraulic references: Configuration-specific wiring, connector and pin views, hydraulic schematics, troubleshooting charts, service standards, and special tool references.
The manuals suit forklift service technicians who use hydraulic pressure gauges and Toyota plug-in analyzers to diagnose drivetrain and controller faults.
Chassis Service and Mast Drift
The chassis manuals cover cooling, fuel, and exhaust service alongside engine removal. Step-by-step procedures include clutch-drum disassembly and reassembly, brake bleeding, and lift cylinder repair. The pneumatic-tire manual distinguishes production changes that affect axle hardware, rear wheel alignment, and inching-pedal adjustment.
Mast service includes tilt-angle correction and lift cylinder rod shimming. The natural-drop and forward-tilt tests help identify excessive drift. Follow-up leakage checks help narrow the fault to the cylinder packing or, for forward tilt, the tilt-lock valve.
4Y-ECS Fuel, Spark, and Governor Controls
The gasoline system uses separate EFI and governor ECUs. The repair supplement covers the throttle body, intake manifolds, injectors and delivery pipe, fuel pump, pressure regulator, sensors, relays, distributor, and ignitor. The LPG-exclusive version has its own adapter and vacuum switching valve. The 4Y-ECS option applies to dedicated gasoline or LPG trucks. Gasoline/LPG convertible trucks have separate wiring coverage in the chassis manuals.
The diagnostic charts trace electronic throttle, governor, and EFI faults through code tables, symptom checks, connector pin assignments, and relay and fuse box views. Read stored 4Y-ECS codes before disconnecting the battery because disconnecting power clears the diagnostic memory.
OPS, SAS, and Mini Lever Service
The Operator Presence Sensing (OPS) supplements show how the seat switch and controller interact with the System of Active Stability (SAS), lift lock, and tilt control. They cover the SAS analyzer SST 09240-23321-71 and the OPS analyzer SST 09240-23323-71. The OPS tool can read stored codes, monitor inputs and outputs, and command solenoids and warning lamps during active tests.
The revised oil control valve integrates the unload, lift-lock, and tilt-control functions. Putting a solenoid or spool back in the wrong position can interfere with those functions. The separate Mini Lever supplement covers controller replacement and matching, material-handling start timing, connector diagnosis, and the Mini Lever oil control valve.
The electrical drawings distinguish gasoline, LPG-exclusive, gasoline/LPG convertible, and diesel circuits. They cover charging, starting, electric shift, meters, vehicle speed control, engine shutdown, LPG warning, and diesel glow systems.
Secure and support the truck before related work. Follow the manual's instructions for isolating electrical power and releasing stored fuel or hydraulic pressure.
Selected Mast Drift Limits
For the 7FGCU15, 7FGCU18, and 7FGCSU20, the natural-drop test specifies a limit of 45 mm (1.77 in) over 15 minutes with the standard load and the engine stopped.
Under the separate natural forward-tilt test setup, the tilt cylinder rod may extend up to 15 mm (0.59 in) over 15 minutes with the standard load and the engine stopped.
