Toyota 7FGU/7FDU/7FGCU Forklift 2000–2008 Service Manual (P/N CU030-2)

This two-PDF factory repair-manual set covers Toyota 7FGU/7FDU35-80 pneumatic-tire trucks and 7FGCU35-70 cushion-tire trucks, including the 7FGKU40/7FDKU40 and 7FGAU50/7FDAU50 designations. All listed configurations use a torque-converter transmission. The depth of the procedures and required equipment make this material best suited to experienced forklift technicians and equipment mechanics with suitable lifting gear, hydraulic and electrical test instruments, and access to the Toyota special service tools identified in the manual.

• Production and engine coverage: Distinguishes G4 (GM6-262) gasoline trucks, 13Z diesel machines through December 2007, and 15Z diesel machines from January 2008. Frame-number tables show the earlier 60011 formats and the 2008-on 70011 formats, including A-prefixed later diesel formats.
• Engine and control work: Covers engine assembly removal and installation, diesel fuel-system air bleeding, engine-speed inspection and adjustment, air-cleaner, radiator, and exhaust service, plus battery, spark-plug, V-belt, and accelerator checks. The G4 electronic-governor section adds basic and final inspection, self-diagnosis, a diagnostic-code list, the system circuit, and sensor and switch tests.
• Powertrain and axle repair: Maps the transmission hydraulic circuit and provides troubleshooting, torque-converter and transmission removal, internal disassembly, inspection and reassembly, stator-shaft/oil-pump and clutch-drum service, direction-switch work, pressure measurement, and stall testing. Propeller-shaft, differential, and front- and rear-axle procedures are separated by truck size and tire configuration.
• Brakes, steering, and chassis hydraulics: Details the different front-brake arrangements, brake bleeding, braking-force adjustment, booster overhaul, and parking-brake, brake-pedal, and inching-pedal adjustments. Steering coverage includes the mast jacket and steering wheel, hydrostatic steering-valve troubleshooting and overhaul, and relief-pressure inspection and adjustment.
• Masts and cylinders: Includes material-handling hydraulic circuits, natural-drop, forward-tilt, and oil-leak tests; V, FV, and FSV mast removal and rebuilding; lift-bracket and roller inspection; mast and cylinder shim adjustments; and lift- and tilt-cylinder, flow-regulator-valve, and safety-down-valve service.
• SAS diagnosis and setup: Documents the SAS controller, yaw-rate, tilt-angle, load, and speed sensors, fork-height switch, and swing-lock cylinder. It also covers required re-setting, customization, plug-in analyzer operation, active tests, troubleshooting by error code and symptom, and connector layouts and diagrams.

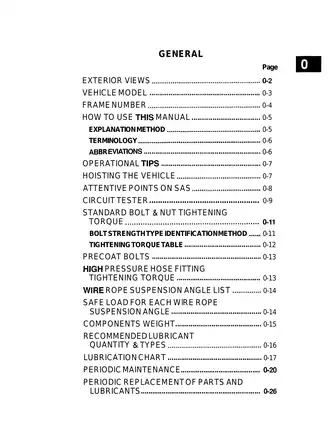

• Factory data and special tools: Supplies service standards, torque tables, fluid types and capacities, wear and clearance limits, hydraulic and electrical test data, lubrication and maintenance schedules, component weights, wire-rope load charts, and an illustrated SST list. Examples include the Toyota electrical tester P/N 09082-76002-71, clutch-drum spring tool P/N 09220-33901-71, plug-in analyzer P/N 09240-23321-71, and differential carrier stand P/N 09410-23320-71.

Document Set and Diagram Coverage

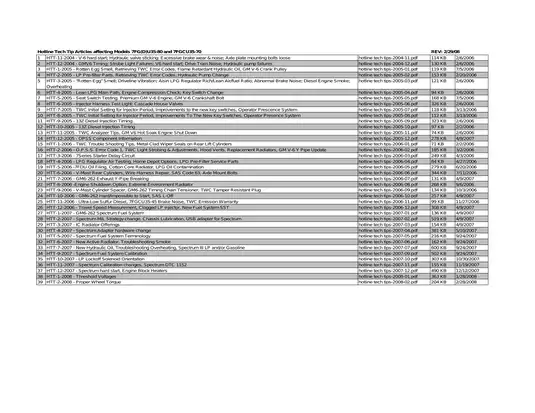

The files total 1,252 PDF pages: a 598-page earlier manual file covering the models as of December 2000, plus a 654-page revised repair manual, Pub. No. CU030-2, first printed in January 2008. The earlier file opens with an affected-publication index revised February 29, 2008, listing 25 Service Information Bulletins, six Technical New Briefs, and 39 Hotline Tech Tip articles. Those separate bulletin files are not included.

Useful drawings include the torque-converter/transmission and material-handling hydraulic circuit diagrams, brake circuits for the pre-2008 and 2008-on configurations, the electronic-governor system circuit, SAS connector views, and date-specific fuel, ignition, three-way-catalyst, and VSCS wiring. Parts-catalog-based component drawings and numbered disassembly/reassembly illustrations support the repair procedures.

Important Scope Limits

The included engine chapter covers vehicle-side engine service, not full internal engine rebuilding. Toyota directs GM6-262 internal work to separate publications C4630 and CU668, 13Z work to C4615 or C4615-2, and 15Z work to CE673; those publications are not part of this set. Separate three-way-catalyst, LPG-device, and OPS manuals are also referenced rather than included.

One later-system limitation is worth noting: the appendix lists a 2006.12-on GM6-262 fuel-system wiring diagram at page 16-48, but that page is blank in the supplied PDF. The CE07-002 Spectrum fuel-system wiring bulletin is named in the affected-publication index but is not included.

The repair cautions are specific: careless oil-control-valve relief adjustment can damage the oil pump or other hydraulic devices, and disassembling the SAS swing-lock cylinder allows air to enter and makes the cylinder unusable.

Industrial equipment systems operate under extreme pressure and heavy loads. Always reference the factory specifications and follow standard heavy-machinery safety procedures before beginning maintenance or component teardown.
