Liebherr Models Covered & Key Technical Specifications

Service Manual: Liebherr diesel engines, PDF (P/N 8717504)

Models: D9306 / D9308 / D9406 / D9408

Models & Model Codes:

D9306 — D 9306 TB, D 9306 T, D 9306 TI

D9308 — D 9308 T, D 9308 TI

D9406 — D 9406 T/TI-E A3, D 9406 TI-E A4, D 9406 TI-E A5

D9408 — D 9408 T/TI-E A3, D 9408 TI-E A4, D 9408 TI-E A5

Model Year: 2000-2003


  • Compression Pressure: 20-28 bar for D 9306 TB and D 9406/9408 T/TI-E; 18-26 bar for D 9306 T/TI and D 9308 T/TI.

  • Cylinder Bore: 130 mm for D9306/D9308; 135 mm for D9406/D9408.

  • Boost Pressure: 0.7 to 2 bar, depending on engine type.

  • Compression Ratio: 17.0:1 for D 9306 TB; 15.5:1 for D 9306 T/TI and D 9308 T/TI; 17.2:1 for D 9406/9408 T/TI-E.

  • Coolant Pump Output: The highest listed output is approximately 610 l/min at a coolant-pump speed of 3300 RPM.

  • Nominal Engine Speed: 1500, 1800, 1900, 2000, or 2100 RPM, depending on configuration.

  • Coolant Pump Serial Break: Separate procedures apply through engine No. 97 12 0299 and from engine No. 97 12 0300.

Liebherr Manual Features & Selected Content Preview

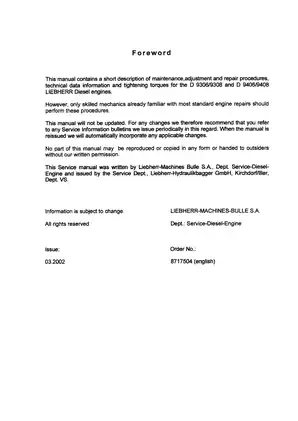

This Liebherr service manual covers the D9306, D9308, D9406, and D9408 six- and eight-cylinder diesel engines and their engine-mounted accessories. The English 03/2002 edition carries P/N 8717504 and describes engine construction, maintenance, adjustment, testing, and repair.

Printable PDF, Search, and Navigation

Text search and navigation: PDF text search is not available, and there are no embedded PDF bookmarks.

The download contains one printable, 176-page PDF, including 30 blank pages already counted in that total.


Internal Engine, Fuel Injection, and Auxiliary-Drive Coverage

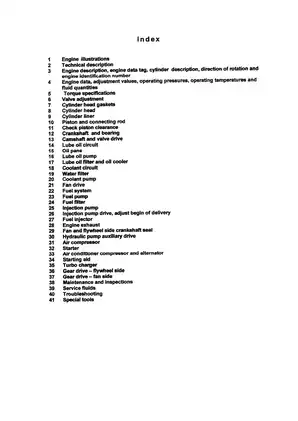

The following highlights are a selection of the contents. Other topics include coolant and oil preheater installation and starter replacement.

  • Internal engine repair: Step-by-step wet-liner and piston/connecting-rod removal and installation, cylinder-head data, gasket selection, valve adjustment, and crankshaft seal replacement.

  • Fuel injection and timing: Injection-pump removal and installation, start-of-delivery adjustment for mechanical and EDC regulation, fuel-system bleeding, and injector service.

  • Cooling and fan drives: Earlier and later coolant-pump procedures, the collar-bearing pump, geared and V-belt fan drives, fan couplings, and belt adjustment.

  • Turbochargers and auxiliary drives: Turbocharger removal, installation, and bearing-play checks, plus air-compressor and flywheel- or timing-case-mounted hydraulic-pump drive service.

  • Fault diagnosis: Problem/cause/remedy tables for no-start, stalling, low power, exhaust smoke, engine knock, overheating, oil-pressure faults, and oil/coolant cross-contamination.

  • Workshop reference data: Component torque tables, operating data, capacities, adjustment values, wear limits, maintenance intervals, and a special-tool applicability table.

Liebherr specifies that these procedures are for skilled mechanics already familiar with standard engine repairs.

Engine Builds and Injection-Pump Identification

The identification section explains engine designations, data-tag fields, cylinder numbering, direction of rotation, and the engine-number format. Earlier and later fuel-filter layouts are shown separately, helping match procedures and parts to the actual engine build.

Fuel-system coverage distinguishes Bosch P 3000 and P 7800 inline pumps with RSV, RSUV, RQV, and RQV-K mechanical regulators. It also identifies A3 versions with the P 7800 pump, A4 versions with P 7800 plus EDC, and A5 versions with the H-RP43 control-sleeve pump plus EDC.

The timing chapters distinguish coupling-ring and drive-hub arrangements. Their mechanical and electronic adjustment methods provide the build-specific information needed to plan injection-pump replacement and timing work.

Mechanical Assembly and Lubrication

Crankshaft-bearing and camshaft/valve-drive references accompany oil-pump installation and oil-filter/oil-cooler replacement procedures. The piston chapter distinguishes pin-located connecting-rod bearing shells from later locating-tab designs.

Reused pistons and liners must remain matched, and connecting-rod bearing shells must not be mixed; incorrect shell positioning or piston orientation can damage the rotating assembly.

For wet torque-converter installations, the twin flywheel-side seals have a specified oil-return direction and retainer orientation; incorrect assembly or grease between these sealing lips can cause seal failure and leakage.

Cooling, Turbocharging, and Starting Aids

Coolant-pump coverage separates the serial-dependent designs from the collar-bearing version. Fan-drive sections distinguish geared arrangements, fan couplings, and V-belt drives rather than treating them as interchangeable assemblies.

Turbocharger coverage identifies KKK K26, K27, K28, and K29 units and the Schwitzer S2A installation. Separate measuring instructions and data sheets support axial and radial bearing-play checks.

The starting-aid chapter includes flame-glow solenoid and glow-plug checks. Maintenance guidance covers inspection intervals and service-fluid requirements for engine oil, DCA 4 coolant treatment, corrosion-inhibitor/antifreeze products, and diesel fuel.

Illustrated References and Service Tools

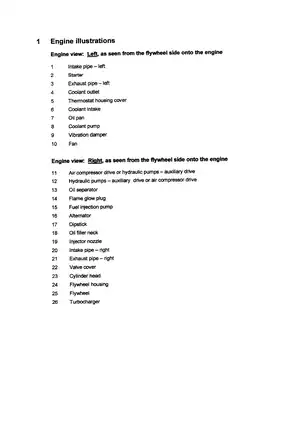

Illustrations include D9406/9408 T/TI-E cross-sections, the D9406 T/TI-E length-section, D9308/9408 lube-oil and coolant circuits, the fuel-system flow diagram, and flywheel- and fan-side gear layouts. Crankcase-vacuum testing connects the oil-separator description with a defined diagnostic check.

Tool references include high-pressure hand pump 7009318, EDC light signal 6004308, injector puller 0524072 with adapter 0524029, cylinder-liner puller 0528462, coolant-pump puller 0542222, and Krikit 2 belt tester 8042829.

Engine-Service Scope and Safety

Coverage concerns the engine and its mounted auxiliaries. Machine-specific engine removal and installation, chassis-hydraulic repair, and machine wiring require the corresponding equipment documentation. External sensor functions and control-system error signals are referred to the applicable user manual.

Fuel-injection timing, cranking tests, exposed fan and gear drives, and heavy engine parts require proper isolation, specified test equipment, and normal diesel-shop safety practices.

A Preview of Liner and Piston-Clearance Data

For the covered engines, cylinder-liner protrusion above the crankcase is specified as +0.03 to +0.08 mm. The liner section relates this dimension to installation in the engine block.

Piston-to-cylinder-head clearance is specified as 1.17 to 1.76 mm. The piston-clearance section connects piston-height measurements with head-gasket selection when replacing pistons, connecting rods, the crankshaft, or the crankcase.
