2011 Arctic Cat Prowler HDX UTV Service Manual (PN 2258-933)

• Model-specific coverage for the 2011 Arctic Cat Prowler HDX ROV, including scheduled service, engine/transmission repair, EFI and cooling diagnosis, drive-system overhaul, four-wheel hydraulic brakes, suspension, EPS steering, frame, and controls.
• Covers major factory repair operations such as engine/transmission removal, top-side teardown, cam timing, CVT and centrifugal-clutch service, crankcase splitting, countershaft assembly, and secondary bevel-gear tooth-contact/backlash adjustment.
• Details chassis and driveline work including front differential and rear gear-case shimming, front drive actuator replacement, CV-axle boot repair, U-joint service, brake-caliper rebuilding and bleeding, A-arm/shock service, steering-rack work, and front-wheel alignment.

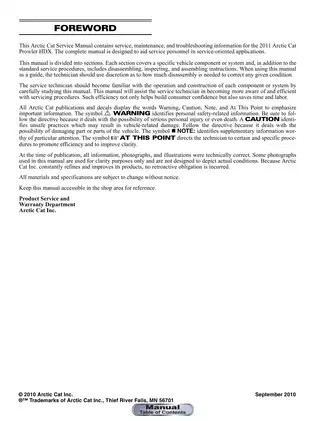

• Document identity: Arctic Cat Service Manual P/N 2258-933, dated September 2010, presented here as a 163-page PDF with nine system-based sections, component torque tables, inspection limits, electrical test specifications, diagnostic tables, and special-tool references.

Manual Coverage

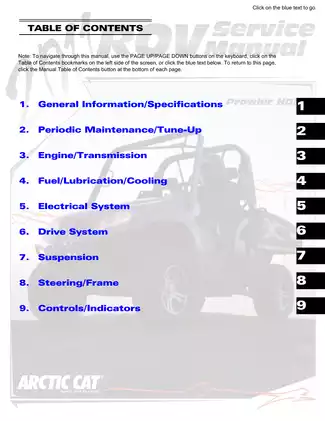

This service manual is specific to the 2011 Arctic Cat Prowler HDX. It is not a multi-year, all-Prowler reference. Arctic Cat organizes the publication into nine sections: General Information/Specifications; Periodic Maintenance/Tune-Up; Engine/Transmission; Fuel/Lubrication/Cooling; Electrical System; Drive System; Suspension; Steering/Frame; and Controls/Indicators.

The maintenance section covers the factory service chart, lubrication points, air-filter service, valve/tappet inspection and adjustment, compression testing, spark-plug and spark-arrester service, engine/transmission oil and filter, front differential and rear-drive lubricant, shift-cable and park-indicator adjustment, hydraulic-brake inspection and bleeding, brake-pad burnishing, V-belt replacement, and brake-system troubleshooting.

Engine, Transmission, and CVT Repair

Section 3 follows the engine/transmission from removal through final installation. It separates work that can be completed in the frame from center-crankcase procedures that require engine removal. Coverage includes the valve cover, cylinder head, valves and guides, camshaft, timing chain, cylinder, piston and rings, water pump, magneto rotor, starter gears, shift mechanism, V-belt system, driven pulley, centrifugal clutch, one-way clutch, oil pump, and gear-position switch.

For internal repair, the manual documents crankcase separation, shaft and gear identification, countershaft disassembly and reassembly, crankshaft and balancer installation, shift-fork positioning, crankcase joining, and final operational checks. The secondary output drive section adds factory tooth-contact checking, backlash measurement, shim correction, and reassembly criteria—detail not normally found in an owner’s manual.

EFI, Cooling, and Electrical Diagnosis

The fuel and cooling sections cover throttle-body removal and installation, electronic fuel-injection troubleshooting, gas-tank and hose service, fuel-pump and fuel-level-sensor testing, oil-pump pressure testing, oil-cooler service, radiator removal, thermostat testing, fan service, water-pump replacement, and cooling-system filling and bleeding.

Electrical diagnosis is component based. It includes battery and charging checks, Power Distribution Module (PDM) fuse and relay testing, ignition coil, MAP, ECT, CKP, TPS, speed and tilt sensors, front drive actuator, starter motor and relay, ECU, regulator/rectifier, lighting circuits, ignition timing, and EPS malfunction-code diagnosis. The ECU chapter explains how to read and clear Active and Stored Codes with the factory test plug. Scope note: this edition uses wire-color, connector, voltage, resistance, and fault-code tests rather than a standalone full-vehicle wiring schematic.

Drive System, Brakes, Suspension, and Steering

Drive-system repair covers the front drive actuator, front differential, rear gear case, input shafts, pinion and ring gears, differential lock parts, axle seals, hubs, CV axles and boots, universal joints, and driveline troubleshooting. Factory procedures address differential backlash and ring-gear end play, rear-drive thrust-button shimming, axle boot clamping and grease distribution, and final engagement checks.

The brake chapters go beyond pad replacement. They include four-wheel hydraulic bleeding, caliper disassembly, piston and seal inspection, caliper reassembly, master-cylinder replacement, brake-disc inspection, and pad burnishing. Suspension and steering coverage includes shocks, front and rear A-arms, ball joints, steering knuckles, tie rods, rack-and-pinion replacement, EPS assembly removal, steering-shaft indexing, and toe-out adjustment.

Factory scope limits are also stated: the water pump, driven pulley, starter motor, ECU, EPS assembly, master cylinder, and rack-and-pinion unit are handled as replacement assemblies rather than internally rebuilt.

Specification Highlights

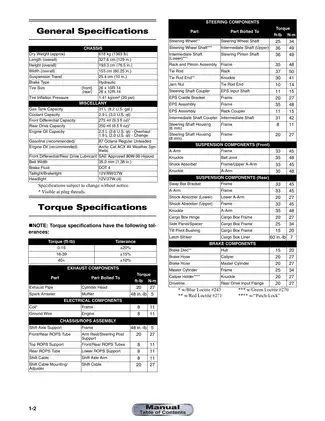

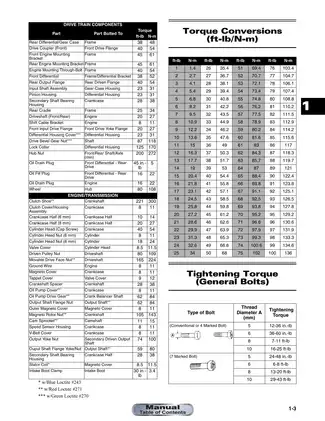

Reference material includes assembly-specific torque tables, lubricant and coolant categories, capacities, wear limits, clearances, runout checks, gear backlash and end-play data, electrical test values, sensor specifications, and troubleshooting tables. Named service tools include the Compression Tester Kit 0444-213, Valve Clearance Adjuster 0444-255, Crankcase Separator/Crankshaft Remover 0444-152, Magneto Rotor Remover Set 0444-254, Test Plug/Error Code List 0444-216, and differential backlash tools 0544-010/0544-011.

Useful visual references include Section 3’s labeled center-crankcase shaft/gear layout and tooth-contact shim-correction chart; Section 5’s PDM fuse layout, Drive Select Switch test tables, and ECU Error Code List; and Section 6’s differential backlash/end-play measuring views and shim-selection tables.

The manual also flags repair traps that can cause expensive damage. The movable drive face must be fully engaged on the clutch-shaft splines before final tightening or the torque reading can be false and the shaft or face plate can be damaged. Cam-sprocket alignment and tab-washer placement are critical because a displaced alignment pin can cause severe engine damage. Countershaft gears and dogs must retain their documented facing direction or the transmission may malfunction and require complete disassembly again.

Safety reminder: Support the ROV with suitable stands or a lift, use the specified lifting and spring-compression equipment, isolate electrical power during fuel-system work, and follow the manual’s brake, fuel, hot-coolant, and rotating-component warnings.
