2012 Arctic Cat Prowler HDX UTV Factory Service Manual

Arctic Cat’s December 2011 service manual covers maintenance, troubleshooting, and repair of the 2012 Prowler HDX.

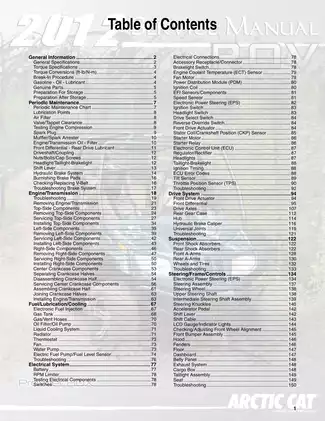

Searchable Text and Procedure Bookmarks

Finding procedures and connector details: Procedure text and tables are searchable, with embedded PDF bookmarks for system sections and individual procedures. Labels within photographs are not consistently searchable; small callouts in the TPS connector photos are readable when enlarged.

One printable, English-language, 151-page PDF, including 150 numbered manual pages and one unnumbered foreword page.

Engine Overhaul, Driveline Setup, and EFI/EPS Diagnosis

These selected topics highlight the main workshop areas. Other documented work includes spark-arrester cleaning and preparation for seasonal storage.

• Engine repair: Step-by-step procedures for engine removal and installation, cylinder-head and piston service, crankcase separation, internal inspection, and reassembly.

• CVT and transmission: V-belt replacement, centrifugal clutch inspection, countershaft disassembly and assembly, and secondary-output gear contact and backlash adjustment.

• Fuel, lubrication, and cooling: Fuel-pump pressure testing, throttle-body replacement, oil-pressure diagnosis, thermostat testing, radiator service, and cooling-system bleeding.

• Electrical diagnosis: ECU error-code identification, TPS testing and adjustment, ignition and charging checks, power distribution module testing, and EPS fault isolation.

• Differential and axle service: Front differential and rear gear case disassembly, shim selection, ring-gear adjustment, axle-seal replacement, CV-boot service, and universal-joint replacement.

• Hydraulic brakes: System bleeding, pad and disc inspection, caliper disassembly and seal replacement, master-cylinder replacement, and operational checks.

• Suspension and steering: Fox Air rear-shock disassembly and charging, A-arm and ball-joint replacement, steering-component inspection, and front-wheel alignment.

Written for service personnel, the manual pairs its procedures with precision measurements and requirements for special tools and shop equipment.

Engine, Clutch, and Internal Transmission Work

Top-side and side-cover work can be performed with the engine/transmission in the frame; center-crankcase service requires removal. That distinction helps plan the disassembly and lifting equipment needed for the job.

Internal coverage reaches valve-guide measurements, camshaft clearance checks, cam timing, countershaft gear orientation, and secondary-output gear tooth-contact adjustment. Keyed cylinder and crankcase views identify the related components. Valve, guide, and seat servicing is referred to a qualified machine shop.

The CVT section covers centrifugal clutch inspection and drive-face installation. Worn driven-pulley components require assembly replacement. The manual warns that an improperly seated movable drive face can produce a false torque reading, allowing the assembly to loosen and damage the shaft and clutch face plate.

Fuel Delivery, Oil Pressure, and Cooling

Fuel-pump testing combines pressure checks with electrical diagnosis and fuel-level sender inspection. The lubrication section connects abnormal oil-pressure readings with leaks, seal faults, oil viscosity, and restrictions in the oil passages or filter.

Cooling procedures explain air bleeding after filling and replacement of the water pump as an assembly. Radiator inspection and thermostat testing support overheating diagnosis.

Electrical Tests and EPS Fault Isolation

The symptom, cause, and remedy charts support day-to-day fault diagnosis across the vehicle. For EPS code P0635, the manual distinguishes supply and speed-signal faults from conditions requiring EPS assembly replacement.

The ECU Error Code List separates active and stored codes. TPS connector photographs and Drive Select Switch resistance and voltage charts pair terminal identification with component tests. Code reading and TPS adjustment use Test Plug/Code List 0486-219.

Electrical coverage: A complete vehicle wiring diagram is not included. The electrical section uses component-test instructions, wire-color references, connector photographs, and troubleshooting charts.

Differential Shimming and Rear Gear Case Repair

The driveline procedures distinguish backlash, ring-gear end play, and thrust-button shimming. Shim-selection tables accompany the measurement procedures, with separate housing-fastener torque specifications for new and reassembled housings.

Pinion lock-collar removal damages the housing threads; the manual calls for a new gear case or differential housing when servicing the pinion or its bearings.

Fox Rear Shocks, Brakes, and Chassis Controls

Fox Air rear-shock procedures cover floating-piston positioning, oil filling, nitrogen charging, and a payload/air-pressure chart. The listed tools include Inflation Needle 0744-020 and Spanner Wrench 0644-453.

Chassis coverage extends to steering-knuckle bearings, tie rods, shift-cable adjustment, and park-indicator operation. Arctic Cat recommends hydraulic-brake service be performed by authorized ROV dealers.

Review the manual’s lifting, pressurized-fuel, and shock-spring warnings before starting work.

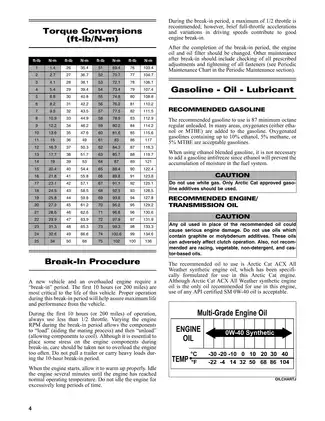

Sample Engine Inspection, Oil-Pressure, and Assembly Specifications

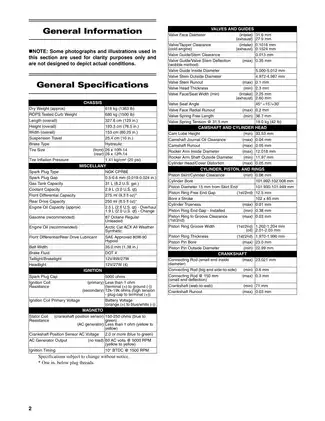

Engine inspection data includes maximum cylinder-head/cover distortion of 0.05 mm and maximum crankshaft runout of 0.03 mm. Cold-engine intake valve/tappet clearance is 0.1016 mm, with checking and adjustment procedures in Periodic Maintenance.

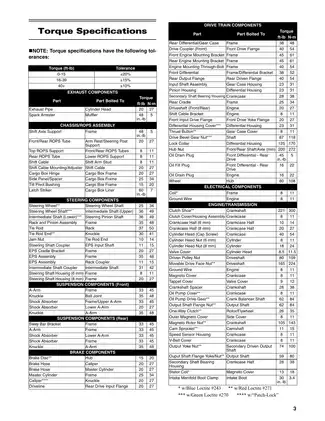

The oil-pressure test specifies 0.7–1.4 kg/cm² at 3,000 RPM with the engine at operating temperature and the cooling fan cycling. The torque table lists the clutch-shoe-to-crankshaft fastener at 221 ft-lb (300 N-m), with red Loctite #271 specified.
