2013 Arctic Cat Prowler HDX - Factory Service & Troubleshooting Manual (First Edition)

• Coverage and document identity: Factory service manual for the 2013 Arctic Cat Prowler HDX, copyright 2012 and dated September 2012. The 159-page PDF contains the manual through numbered page 152 plus three appended full-page harness schematics.
• Engine and transmission repair: Covers power-unit removal and installation; cylinder head, valves, cam timing, piston, and cylinder service; magneto and starter-clutch work; CVT belt, pulleys, centrifugal clutch, and oil pump service; crankcase splitting; and crankshaft, countershaft, and internal transmission disassembly, inspection, and assembly.
• Drive-system and brake work: Details the front drive actuator, front differential, rear gear case, pinion and input shafts, ring-gear backlash and end-play setup, CV axles and boots, hubs, universal joints, hydraulic caliper overhaul, brake bleeding, and pad burnishing.
• Fuel, lubrication, and cooling service: Includes throttle-body and fuel-tank work, fuel-pump and sender testing, oil-pressure testing, oil-pump service, radiator and thermostat inspection, fan and water-pump replacement, and cooling-system filling and bleeding.
• EFI and electrical diagnosis: Uses the LCD gauge diagnostic modes and DTC/ECM-pin chart to support testing of the TPS, MAP/IAT and ECT sensors, tilt sensor, charging and starting circuits, drive-select system, EPS, switches, lighting, and related harness connections.
• Suspension, steering, and chassis procedures: Includes Fox rear air-shock disassembly, oil service, nitrogen charging, and payload-pressure setup, along with front and rear A-arms, EPS and rack replacement, tie rods, steering shafts, wheel alignment, cargo box, body panels, and exhaust service.

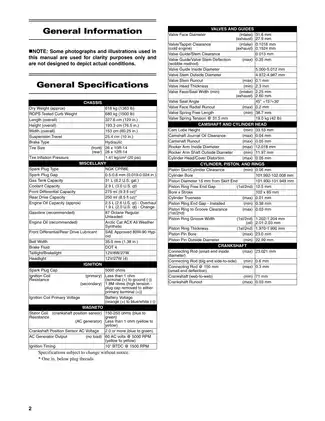

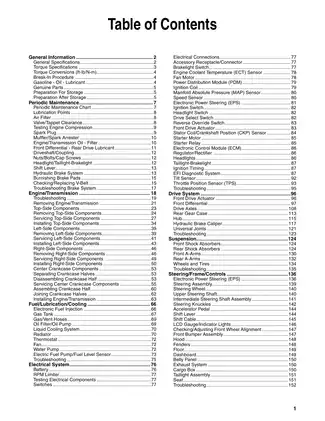

• Factory reference and maintenance data: Provides the periodic service chart, torque tables, fluid and capacity data, pressure-test specifications, inspection limits, clearances, shim-selection charts, and electrical test values, supported by assembly illustrations, troubleshooting tables, and wiring diagrams.

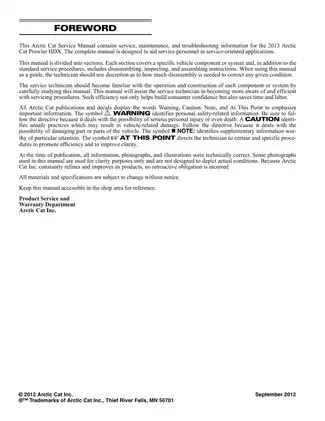

This is Arctic Cat’s factory shop manual rather than an owner’s maintenance guide. The foreword says it was designed to aid service personnel, and the repair depth assumes familiarity with component inspection, measuring tools, presses, lifting equipment, and service specifications. It is therefore best suited to professional technicians and experienced owners who have a properly equipped shop; Arctic Cat specifically recommends that hydraulic brake repair be handled by an authorized Arctic Cat ROV dealer.

Powertrain and Driveline Repair Coverage

The engine section separates top-side, left-side, right-side, and center-crankcase work. Top-side and side-component repair can be performed with the engine/transmission in the frame, while center crankcase service requires power-unit removal. Coverage extends from valve and camshaft inspection through piston, cylinder, starter clutch, magneto, centrifugal clutch, oil pump, crankshaft, countershaft, and transmission service. Internal drivetrain work includes secondary bevel-gear tooth-contact and backlash adjustment rather than stopping at simple assembly replacement.

Front and rear driveline chapters cover differential and gear-case removal, input-shaft and pinion work, bearing and seal replacement, ring-gear shimming, CV axle disassembly and boot replacement, hub service, and universal-joint replacement. The manual also identifies factory non-serviceable assemblies, including the driven pulley, EPS unit, steering rack, starter motor, water pump, ECM, master cylinder, and electric fuel pump, so buyers can see where Arctic Cat directs replacement instead of an internal rebuild.

Diagnostics, Wiring, and Special Tools

Electrical fault finding is tied to live and static LCD gauge modes for coolant temperature, fuel level, engine speed, vehicle speed, TPS position, MAP, inlet-air temperature, and system voltage. The code table maps EFI and chassis faults to ECM pins and distinguishes powertrain, chassis, and communication codes.

Notable visual references include the Prowler HDX main-harness schematic (P/N 0486-435), the EFI DTC/ECM-pin chart, the 2WD/4WD/differential-lock switch test chart, the secondary-output bevel-gear tooth-contact chart, front-differential backlash/end-play setup views, and crank-balancer timing-mark illustrations. P/N 0486-434 on the shared schematic page identifies the Prowler XTX harness, not the HDX. Separate appended sheets for XT and XTZ wiring do not extend the mechanical repair coverage beyond the 2013 Prowler HDX.

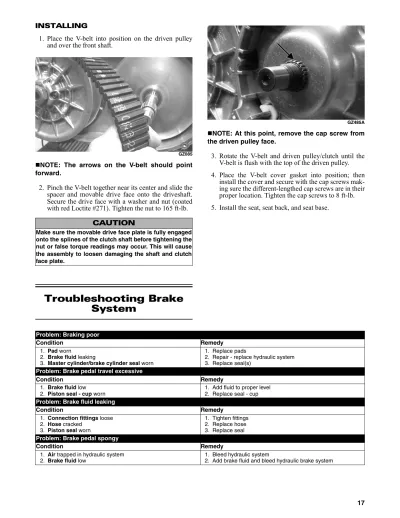

The tool lists identify the Crankcase Separator/Crankshaft Remover P/N 0444-152, Magneto Rotor Remover Set P/N 0444-254, Oil Pressure Test Kit P/N 0644-495, electrical Test Plug/Code List P/N 0486-219, and 24- and 27-spline backlash tools P/N 0544-010/0544-011. The manual warns that reversed countershaft dogs or gears can damage the transmission, while an incompletely seated movable drive face can create a false torque reading and damage the clutch shaft and face plate. Engine lifting, spring-compressed suspension work, nitrogen-charged shock service, and brake repair require the support equipment and safety practices specified in the manual.
