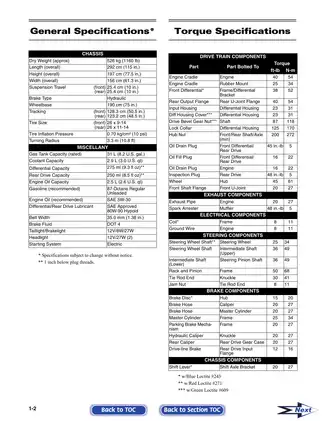

Arctic Cat Models Covered & Key Technical Specifications

Models: Prowler, Prowler XT

Model Year: 2008


  • Engine type: 4-Cycle, SOHC

  • Coolant capacity: 2.9 L (3.0 U.S. qt)

  • Engine oil capacity: 2.5 L (2.6 U.S. qt)

  • Fuel tank capacity: 31 L (8.2 U.S. gal.)

  • Drive system: 2WD/4WD switchable with electric front drive actuator

  • Transmission: V-belt drive with high/low range and reverse

  • Tire inflation pressure: 0.70 kg/cm² (10 psi)

  • Suspension travel: 25.4 cm (10 in.) front and rear

Arctic Cat Manual Features & Selected Content Preview

This July 2007 Arctic Cat service manual covers the 2008 Prowler and Prowler XT UTVs, with maintenance, troubleshooting, and mechanical repair procedures. A separate service manual is required for the Prowler XTX.

Searchable Text and PDF Navigation

Search and illustration detail: The main text is searchable, but some labels within illustrations are not. No embedded PDF bookmarks or working table-of-contents links are included. Small labels in the oil-flow chart require zooming.

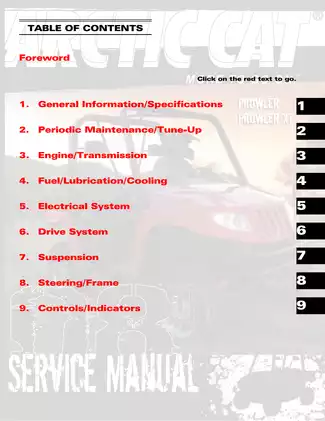

Supplied as one printable, English-language 166-page PDF, including the two unnumbered pages containing the foreword and overall table of contents.


Engine, Driveline and Chassis Service

These selected service topics show the scope of the manual without reproducing its full contents list. Additional topics include storage preparation and cargo-box removal and installation.

  • Maintenance and tune-up: Periodic maintenance chart, valve-clearance adjustment, compression testing, engine oil and filter changes, and ignition-timing checks.

  • Engine and transmission: Engine removal, cylinder-head and piston inspection, crankcase separation, countershaft disassembly, centrifugal-clutch inspection, and V-belt replacement.

  • Fuel and cooling: Keihin CVK36 carburetor disassembly and adjustment, fuel-pump testing, thermostat checks, radiator service, and water-pump replacement.

  • Electrical diagnosis: Ignition and stator-coil tests, charging-system checks, starter-circuit diagnosis, and front-drive actuator testing.

  • Driveline repair: Front-differential teardown, gear shimming, rear gear-case service, CV-boot replacement, and universal-joint removal and installation.

  • Brake service: Hydraulic-system bleeding, brake-pad inspection and replacement, parking-brake adjustment, and master-cylinder replacement.

  • Steering and suspension: Rack-and-pinion inspection, steering-knuckle bearing replacement, front-wheel alignment, and shock-absorber, ball-joint, and A-arm service.

Written for service personnel, this manual assumes access to workshop measuring equipment and the special tools identified in its service sections.

Engine Access and Internal Repair

Step-by-step procedures distinguish work that can be done with the engine in the frame from center-crankcase service requiring engine removal. Inspection extends to valve guides, piston-ring fit, cylinder condition, and camshaft-journal clearance.

Valve, valve-guide, and valve-seat servicing is referred to a qualified machine shop. The driven pulley is specified as a replacement assembly when its faces, cam ramps, or sheave bushings are worn.

A V-belt installation caution explains how a false torque reading can leave the drive face loose and damage the shaft and pulley.

Before heavy powertrain work, ensure your vehicle is properly supported and follow the manual's lifting and workshop safety instructions.

Gear Shimming and Tooth Contact

Secondary-bevel-gear shim charts and tooth-contact illustrations help technicians relate measured backlash and contact patterns to the required shim correction. The manual identifies an unsecured universal joint as a source of false backlash measurements.

Separate front-differential instructions address pinion bearings, ring-gear shims, and axle seals. Rear gear-case procedures identify which of those operations also apply to the rear unit.

Carburetor and Cooling-System Details

The carburetor schematic identifies the jets, float valve, vacuum piston, and pump diaphragm used in the Keihin CVK36 service procedures. An oil-flow chart accompanies the lubrication section and its oil-pressure testing instructions.

The water pump and vacuum-pulse fuel pump are replacement assemblies; their coverage does not include internal rebuilding. Cooling-system service also explains thermostat orientation and the risk of trapped air.

Electrical Tests and XT Instruments

Charging diagnosis separates generator output, stator resistance, and regulator/rectifier checks. Peak-voltage tests specify a Fluke Model 73 multimeter with the Peak Voltage Reading Adapter, P/N 0644-307. A constant-current battery charging chart supports battery servicing.

XT-specific instructions cover the fuel-level sensor, speed sensor, and speedometer/tachometer/LCD. The standard Prowler's indicator lights are addressed separately.

Electrical test instructions use wire-color references and connector photos. Complete vehicle wiring diagrams are not included.

Steering and Brake Service Limits

The rack-and-pinion steering assembly and steering-shaft assembly are inspected and replaced rather than internally rebuilt. Hydraulic calipers and the brake master cylinder are also designated replacement assemblies.

The steering instructions warn that excessive engagement of the lower steering-shaft joint on the pinion shaft can cause binding or lockup and loss of steering control.

Selected Valve Clearances and Drivetrain Settings

For the covered Prowler/XT engine, cold valve/tappet clearance is 0.1016 mm (0.004 in.) at the intake and 0.1524 mm (0.006 in.) at the exhaust. These values accompany the feeler-gauge and valve-adjuster procedures.

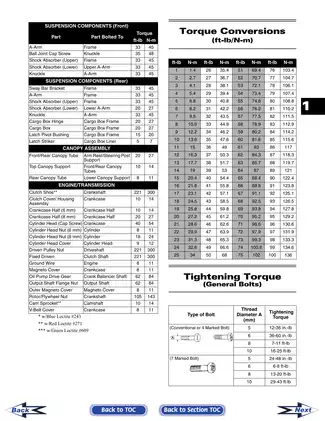

The secondary driven bevel gear has an acceptable backlash range of 0.05–0.33 mm. The drivetrain torque table lists a minimum front/rear hub-nut torque of 200 ft-lb (272 N-m); this is distinct from the wheel-fastener specification.
