2008 Arctic Cat Prowler, XT & XTX 4x4 UTV Service & Repair Manual

Factory service and repair information for the 2008 Arctic Cat Prowler, Prowler XT, and Prowler XTX 4x4 UTVs, with separate coverage for carbureted Prowler/XT models and the fuel-injected XTX.

• Engine and transmission: Engine removal, crankcase separation, cylinder-head inspection, countershaft assembly, and centrifugal-clutch service procedures.

• Fuel systems: Keihin CVK36 carburetor overhaul, XTX throttle-body service, and electric and vacuum-pulse fuel-pump testing.

• Cooling and lubrication: Radiator removal, thermostat testing, water-pump replacement, XTX oil-cooler service, and oil-pump inspection procedures.

• Electrical diagnosis: CDI and ECU checks, charging-system tests, starter-circuit diagnosis, EFI error codes, and model-specific wiring diagrams.

• Drivetrain and chassis: Differential shimming, axle-seal replacement, CV-boot service, universal-joint replacement, independent A-arm work, and steering-knuckle procedures.

• Brakes and controls: Hydraulic-system bleeding, parking-brake adjustment, master-cylinder replacement, shift-linkage adjustment, and front differential-lock cable adjustment.

Suited to technicians and experienced owners equipped for precision measurements and electrical testing; internal engine work calls for a press, pullers, and dedicated service tools.

Engine Access, Timing and Internal Repair

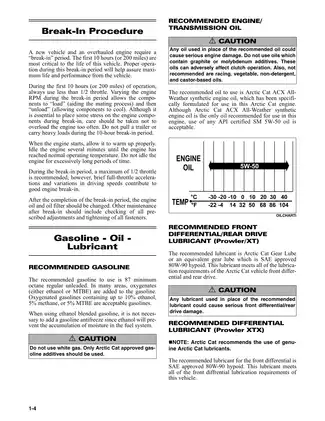

Break-in procedures, storage preparation, and periodic maintenance charts accompany the valve-clearance and compression-testing sections. Cylinder-head and piston inspection coverage includes wear measurements, camshaft checks, and valve-timing references.

Repair access: The manual distinguishes top-side and side-cover work that can be performed with the engine installed from center-crankcase work requiring engine removal. Countershaft exploded views and secondary-gear tooth-contact illustrations support internal transmission inspection and reassembly.

Clutch precautions: The belt-installation section explains how a false torque reading at the movable drive face can leave the assembly loose and damage the shaft and pulley. The driven pulley is treated as a replacement assembly when its faces, ramps, or bushings are worn.

Carbureted Fuel Delivery, EFI and Cooling

The Carburetor Schematic (Prowler/XT) identifies the jets, float assembly, vacuum piston, diaphragm, and electric choke. Its overhaul procedures are separate from the XTX throttle-body and electric fuel-pump sections, helping owners select the correct fuel-system reference.

Cooling coverage includes thermostat inspection and radiator, fan, and water-pump removal and installation. The water pump is treated as a replacement assembly. Lubrication information distinguishes the Prowler/XT rear drive from the XTX rear differential.

CDI, EFI Codes and Wiring References

Electrical specifications separate Prowler/XT CDI and stator tests from XTX ECU, crankshaft-position sensor, and EFI checks. These variant-specific references help match test results to the installed system before components are replaced.

XTX diagnostics: Active and stored ECU codes, throttle-position sensor testing and adjustment, and tilt-sensor checks are covered. Listed diagnostic equipment includes Diagnostic Harness 0486-219 and Test Plug/Error Code List 0444-216.

Three color Main Harness diagrams cover Prowler, Prowler XT, and Prowler XTX separately, with connector pin assignments and wire-color references. Front-drive actuator checks address the associated selector switch, wiring, and differential-lock circuit.

Differentials, Steering and Brake Service

Drivetrain procedures cover pinion bearings, shim selection, axle seals, CV boots, and universal joints. Drive-line alignment notes address universal-joint and gear damage caused by incorrectly timed yokes. A defective front-drive actuator is replaced as an assembly.

Steering and brakes: Rack-and-pinion inspection is supported by tie-rod and boot replacement procedures, wheel-alignment checks, and steering-knuckle bearing work. Hydraulic brake troubleshooting charts cover poor braking, excessive pedal travel, and fluid leaks. Caliper and master-cylinder coverage includes inspection and replacement; both are treated as non-serviceable assemblies.

Work on pressurized fuel lines and heavy drivetrains should follow the manufacturer's safety precautions and workshop support requirements.

A Preview of Pulley, Brake and Ignition Specifications

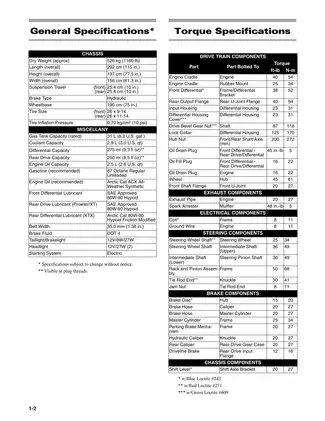

These examples show a small selection of the manual's torque and ignition-reference data.

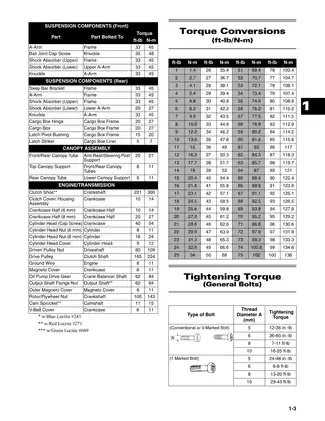

The torque tables list 165 ft-lb for the drive pulley at the clutch shaft and 20 ft-lb for the hydraulic-caliper-to-knuckle fasteners.

For Prowler/XT ignition checks, the specification is 10° BTDC at 1,500 RPM. Ignition timing is checked for diagnosis and is not adjustable.

Bookmarked Service Text and Color Wiring Pages

Search, navigation and diagram detail: Service-section text is searchable, and embedded PDF bookmarks lead to all nine sections and each model's wiring page. The three wiring pages are not text-searchable; small connector and wire-color labels require zooming.

Supplied as one printable English PDF with 176 pages: one opening contents page, 172 pages across the nine service sections, and three wiring-diagram pages. All are included in the stated total.
