Cessna 152, F152, A152 & FA152 Aircraft Service Manual, 1978–1985 (P/N D2064-1-13)
484 Pages • 1 Printable PDF (English) • Download
Cessna Models Covered & Key Technical Specifications
Models: 152, F152, A152, FA152
Sub-models / Variants: 152, 152II (152), Aerobat (A152), Reims/Cessna F152, Reims/Cessna F152II (F152), Reims/Cessna F152 Aerobat (FA152)
Model Years: 1978–1985 (1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985) - 1986 variants included for specific F152 and FA152 models
Serial Numbers: 152 (15279406–15286033), F152 (F15201449–F15201980), A152 (A1500433, 681, A1520735–A1521049), FA152 (FA1520337–FA1520425)
-
Engine: Lycoming O-235 series (Model 152: O-235-L2C thru S/N 15285594; O-235-N2C beginning with S/N 15285595)
-
Gross Weight: 1670 Lbs.
-
Standard Fuel Capacity (Total): 26 Gal.
-
Standard Fuel Capacity (Usable): 24.5 Gal.
-
Long Range Fuel Capacity (Total): 39 Gal.
-
Long Range Fuel Capacity (Usable): 37.5 Gal.
-
Oil Capacity (Without External Filter): 6 Qt.
-
Oil Capacity (With External Filter): 7 Qt.
-
Main Wheel Tire Pressure: 29 Psi (Standard), 21 Psi (Optional)
-
Nose Wheel Tire Pressure: 30 Psi
-
Nose Gear Strut Pressure (Strut Extended): 20 Psi
Cessna Manual Features & Selected Content Preview

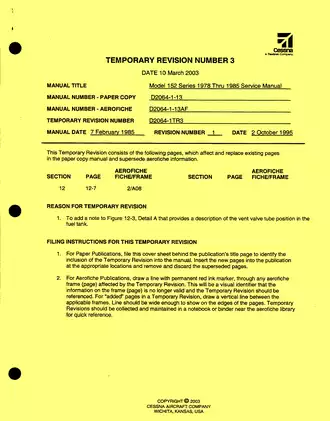

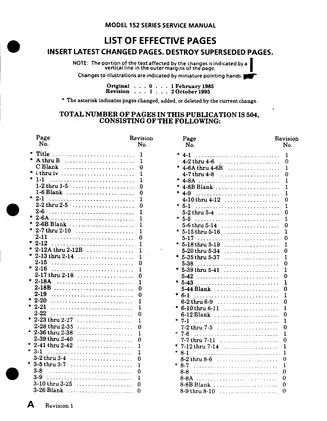

This Cessna service manual, P/N D2064-1-13, covers the 1978–1985 Model 152 series, including the A152 Aerobat and the Reims-built F152 and FA152. Its serial-number table also lists specific 1986 F152 and FA152 aircraft. This edition contains Revision 1 (October 2, 1995), Temporary Revision 2 (January 7, 2000), and Temporary Revision 3 (March 10, 2003).
PDF Search, Bookmarks, and Diagram Detail
Text search and diagram detail: The OCR text layer supports searches through the text sections. Most wiring labels are outside that text layer. Embedded bookmarks cover chapters and subsections. Small connector numbers and wire codes require zooming, and some dense wire-table entries and faded flap-circuit labels remain difficult to read.

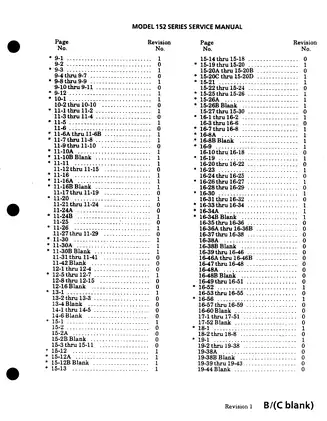

The download is one 484-page printable PDF in English. It includes 477 pages from the base manual, including the cover and front matter, and seven temporary revision pages, comprising two cover sheets and five added or replacement pages.
Airframe, Engine, and Systems Service
These selected service topics show the range of work covered. Other examples include cabin heating and ventilation service and stall-warning system troubleshooting.
- Handling and inspections: Ground handling, lubrication charts, scheduled inspections, corrosion prevention, and storage and return-to-service procedures.
- Airframe repair: Removal and installation of the wings, wing struts, horizontal stabilizer, and vertical fin, with attachment inspections and nutplate replacement.
- Flight controls: Troubleshooting and rigging for the ailerons, wing flaps, elevator, elevator trim tab, and rudder, plus control-surface balancing.
- Landing gear and brakes: Step-by-step procedures for rebuilding the nose gear shock strut and bleeding the hydraulic brakes, along with shimmy dampener servicing and wheel and bearing maintenance.
- Engine and fuel: Engine removal and installation, ignition troubleshooting, magneto-to-engine timing, carburetor adjustment, and fuel tank and vent service.
- Instruments and electrical: Pitot-static leakage testing, vacuum-system diagnosis, fuel-quantity transmitter checks, charging-system troubleshooting, and system-specific wiring diagrams.
Written as a reference for experienced aircraft mechanics, the manual also provides step-by-step procedures for mechanics with less experience.
Ground Handling and Structural Repair
Ground-handling instructions cover jacking and leveling. Cleaning and care procedures address Alclad aluminum surfaces, acrylic windshield scratches, and upholstery. The Fuselage Stations drawing helps locate components, and the bolt-torque tables distinguish fine- and coarse-thread hardware.

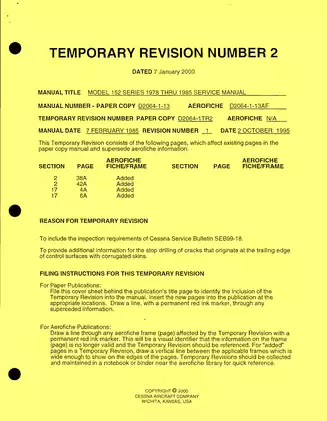

Structural repair covers wing skins, spars, ribs, and fuselage bulkheads. Temporary Revision 2 adds inspection criteria for cracks in corrugated aileron and flap skins. The wing-adjustment section explains how mishandling the eccentric bushings can load the attachment bolt in shear and damage the wing-spar fitting.
Inspection, maintenance, and parts requirements for supplemental type certificate (STC) installations are covered by the applicable STC documentation.
Landing Gear and Flight Controls
Wheel service procedures distinguish McCauley and Cleveland assemblies. Nose gear coverage includes seal inspection. Brake procedures cover master-cylinder service, lining replacement, and MIL-H-5606 hydraulic-fluid requirements.
The control-system chapters provide cable routing, tensioning, and travel checks. The elevator trim section covers actuator disassembly and free-play inspection. The flap section describes the motor and transmission assembly and the follow-up indicating system.
Engine, Fuel, and Propeller
Powerplant procedures include oil-leak troubleshooting, engine-mount inspection, and timing for the documented Slick magnetos. Carburetor service covers removal and installation as well as idle-speed and mixture adjustment.
Major internal engine repairs and overhaul require separate Lycoming documentation. For carburetor overhaul and propeller repair, the manual directs mechanics to the respective manufacturers’ publications. It includes propeller and spinner removal and installation. Before structural or engine work, confirm that equipment and procedures meet applicable aviation requirements and heed the manual’s warning about unexpected propeller movement.
The Fuel System Schematic traces the tanks, vent lines, shutoff valve, strainer, and primer. Fuel-additive mixing charts accompany the servicing instructions. Temporary Revision 3 clarifies the position of the fuel tank vent-valve tube.
Instrument and Electrical Diagnosis
The fuel indication section distinguishes Stewart-Warner transmitters, which have a calibration procedure, from Rochester units with a nonadjustable float arm and stop. Identifying the installed transmitter helps mechanics choose the right procedure when investigating inaccurate fuel readings.
Pitot-static leakage tests and vacuum troubleshooting charts support instrument diagnosis. The manual warns that compressed air applied to installed vacuum lines can damage the gyros.
The electrical section pairs alternator and voltage-regulator troubleshooting with the Circuit Breaker and Bus Bar wiring diagram and the Electrical Load Analysis Chart. Section 19 also includes separate diagrams for the fuel indicator and transmitter and for the electric wing flaps.
Selected Oil-Pressure and Gyro-Vacuum Specifications
For the Model 152’s Lycoming O-235 installation, the engine-data table lists normal oil pressure at 60–90 psi and gives separate limits for idle and cold starts.
The vacuum-system section gives an acceptable suction-gage range of 4.6–5.4 in. Hg for the gyro instruments. It also covers relief-valve adjustment and the low-vacuum warning check.
