Suzuki Grand Vitara JB416/JB420 2005–2007 Service Manual Set (P/N 99500-64J00-01E)

For ESP-equipped vehicles, consult the supplement first: it describes changed procedures and specifications. Use the base manual for sections and items referred back to the original publication.

Searchable PDFs and Chapter Bookmarks

Text search and diagram detail: Both PDFs have searchable text and extensive section and procedure bookmarks. The “Top” and “Manual List” bookmarks point to external files outside this download. Small wiring-diagram labels require zooming for comfortable reading.

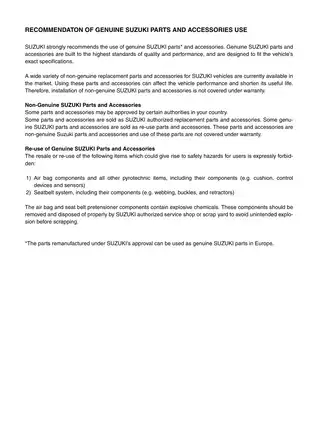

The ZIP download contains two printable English PDFs totaling 2,214 pages. This includes nine preliminary and closing pages in the base manual and eight in the supplement, covering front matter, blank pages, publication details, and original covers.

Engine Overhaul, 4WD Repair, and ESP Diagnostics

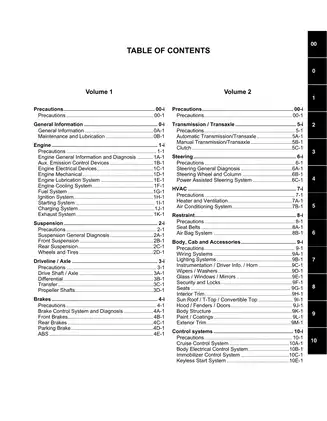

The following is a selection of covered work, rather than a complete table of contents. Additional topics include cruise-control switch testing and sunroof service.

• Engine repair: Step-by-step procedures for engine removal, timing-chain service, cylinder-head disassembly, valve-guide inspection, piston and connecting-rod work, crankshaft measurement, and oil-pump repair.

• Engine management: DTC charts, fail-safe operation, scan-tool data, ECM circuit tests, fuel-pressure diagnosis, injector and pump checks, emission controls, and electronic-throttle calibration.

• Transmission and clutch: Automatic-transmission testing and overhaul, manual-transmission shaft and synchronizer repair, shift-control service, and hydraulic-clutch inspection and repair.

• 4WD and axles: Motor-shift and non-shift transfer repair, actuator and control-module diagnosis, differential overhaul, CV-joint service, and propeller-shaft work.

• Suspension, steering, and brakes: Alignment, strut and wheel-bearing service, suspension-link repair, power-steering diagnosis, brake bleeding, disc and drum service, and ABS troubleshooting.

• ESP systems: Hydraulic-unit and CAN diagnosis, steering-angle and yaw/G-sensor fault isolation, master-cylinder-pressure sensor checks, and sensor calibration.

• Electrical and body systems: Wiring diagrams, connector views, starting and charging tests, HVAC diagnosis, SRS service, BCM checks, immobilizer and keyless-start diagnosis, and body-component repair.

Suzuki expressly states that these publications are for authorized dealers and qualified service technicians; overhaul, electronic diagnosis, and SRS work assumes the specified workshop equipment and special tools.

M16A VVT and J20 Engine Service

Separate engine chapters distinguish M16A camshaft-position control from the J20 two-chain timing layout and intake-manifold tuning system. Compression and vacuum diagnosis accompany valve-clearance inspection, bearing checks, cylinder-block measurement, and internal repair procedures.

Electronic throttle: Closed-throttle reference calibration is covered after ECM backup-power loss or replacement of the ECM, throttle body, or accelerator pedal position sensor. The diagnostic charts connect symptoms, circuit checks, and reference data, helping technicians investigate faults before selecting components for replacement.

The manual warns that supporting the engine under the oil pan can bend it against the pump strainer and damage the oil pickup. Excessive force on the electric throttle plate can damage the actuator’s internal resin gear.

Maintenance and cooling: Normal and severe-use schedules accompany fluid-service procedures and oil-viscosity guidance. Cooling-system coverage includes thermostat testing, fan-motor and relay checks, radiator service, and engine-specific water-pump procedures.

Transmission Testing and Internal Repair

Automatic-transmission diagnosis includes road, stall, time-lag, line-pressure, engine-brake, and P-range tests, alongside TCM and solenoid checks. These tests help distinguish control or hydraulic faults from conditions requiring internal repair.

Overhaul coverage extends to the oil pump, overdrive, clutch assemblies, center support, planetary geartrain, output shaft, and valve body. Valve-body disassembly is limited to the components Suzuki identifies as serviceable.

Manual-transmission procedures cover shafts, synchronizers, cases, and shift controls. The clutch chapter includes the hydraulic operating system as well as clutch and flywheel service.

Transfer, Chassis, and ESP Service

The transfer chapters distinguish units with a shift actuator from non-shift units. Motor-shift diagnosis includes 4WD DTCs, switch checks, actuator tests, and control-module circuits.

Full-time 4WD precautions address dynamometers, brake and speedometer testers, one-axle-raised testing, and towing configurations. Chassis repair extends to control arms and bushings, rear links and frame, master cylinders, brake boosters, and parking-brake adjustment.

ESP calibration: The supplement distinguishes steering-angle calibration from the scan-tool-dependent calibration required after specified ESP-module or yaw/G-sensor work. It also explains which existing DTCs prevent calibration from completing.

Wiring, Body Systems, and Workshop References

Harness-routing and connector-layout views distinguish M16A/J20A, RHD/LHD, and three-door/five-door configurations. Ground points, fuse protection, junction-block internals, and terminal tables support circuit tracing.

Named diagrams include the Engine and Emission Control System Diagram, A/T Control System Circuit Diagram, and 4WD Control System Wiring Circuit Diagram. The Electronic Stability Program Wiring Circuit Diagram, Air Bag System Wiring Circuit Diagram, and Keyless Start System Electric Wiring Circuit Diagram cover additional control systems.

HVAC material includes diagnostic charts and compressor service. Body coverage includes lighting, wipers, windows, locks, trim, and body-dimension drawings.

Identification and tools: The identification section locates the VIN on the front dash panel in the engine compartment and, depending on specification, at the left-front top of the instrument panel. Engine and transmission markings are located on the cylinder block and transmission case. Tool listings identify the 09933-06320 ECM check harness, 09943-25010 coil-spring compressor, and Suzuki-numbered pullers, installers, holders, and gauges.

Reference tables provide component-specific torques, approved fluids and capacities, pressure-test data, wear limits, clearances, alignment values, and electrical test specifications.

Automotive service carries inherent risks. Use the specified lifting and support points and follow the manual’s fuel, brake, refrigerant, and SRS precautions. Suzuki restricts service on or near air-bag components and wiring to an authorized dealer.

Selected Valve-Clearance and Oil-Pressure Specifications

For both covered engines, the cold valve-clearance tables specify intake clearance of 0.18–0.22 mm and exhaust clearance of 0.28–0.32 mm at a coolant temperature of 15–25°C. The engine chapters also describe shim selection and replacement.

The oil-pressure checks distinguish the engines: with the engine warmed to normal operating temperature, pressure at 4,000 rpm must exceed 270 kPa for the M16A VVT engine and 390 kPa for the J20 engine.
