2008 Arctic Cat Thundercat 1000 H2 EFI 4x4 ATV Service Manual (P/N 2258-121)
162 Pages • 54.82 MB • Instant, Printable PDF
Arctic Cat Models Covered & Key Technical Specifications
Models: Thundercat 1000 H2 EFI 4x4
Model Year: 2008
-
Engine displacement: 1000 class (H2 EFI V-Twin)
-
Fuel capacity: 24.6 L (6.5 U.S. gal.)
-
Engine oil capacity: 2.8 L (3.0 U.S. qt)
-
Coolant capacity: 3.3 L (3.5 U.S. qt)
-
Tire inflation pressure: 0.35 kg/cm² (5 psi)
-
Drive belt width (minimum): 35.6 mm (1.40 in.)
-
Spark plug gap: 0.7–0.8 mm (0.028–0.032 in.)
-
Valve clearance (intake): 0.1016 mm (0.004 in.)
-
Valve clearance (exhaust): 0.1524 mm (0.006 in.)
Arctic Cat Manual Features & Content Preview
Covering the 2008 Arctic Cat Thundercat, this factory service publication documents the machine's EFI engine, integrated transmission, selectable 2WD/4WD system, differential lock, chassis, controls, and electrical diagnosis. Written for service personnel, its internal repair work assumes shop-level mechanical experience plus access to a multimeter, hydraulic press, pullers, and the listed special tools.

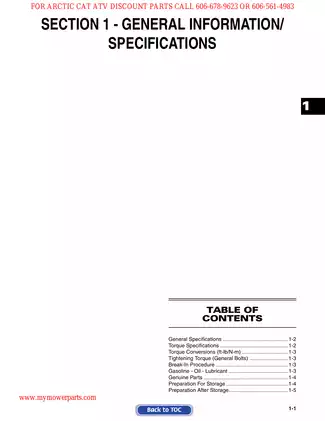

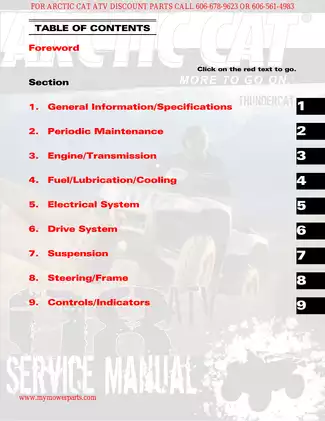

- Document identity and coverage: Dedicated 2008 Thundercat service content in a 162-page PDF, dated February 2008 and organized into nine sections from general specifications and maintenance through controls and indicators.
- Engine and transmission repair: Covers complete powertrain removal and installation, top-side teardown, valves and cylinder-head inspection, pistons and cylinders, cam timing, clutch and V-belt components, crankcase separation, oil-pump service, countershaft assembly, and final reassembly.
- Fuel, lubrication, and cooling: Details throttle-body service, electric fuel-pump and fuel-level-sender testing, oil-pressure diagnosis, oil cooler, radiator, thermostat, fan, hoses, and water-pump replacement.
- EFI and electrical diagnostics: Includes ECU active/stored error-code retrieval and clearing, TPS inspection and adjustment, MAP, CKP, ECT, tilt and speed-sensor tests, ignition and charging checks, starter circuits, relays, switches, lighting, and front-drive actuator diagnosis.
- Drive, brake, suspension, and steering: Provides front differential removal and internal shimming, pinion and axle-seal work, CV-axle and boot repair, rear gear-case service, hub and hydraulic-caliper procedures, shock and A-arm service, steering-post and knuckle repair, and toe-in adjustment.

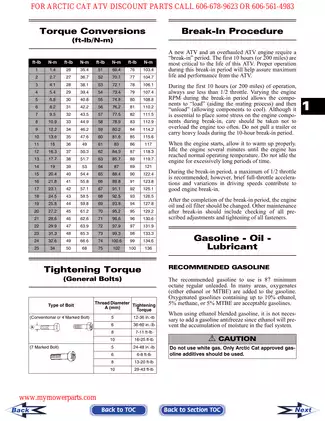

- Maintenance and reference data: Supplies the periodic-service chart, valve-clearance and compression checks, oil/filter/strainer service, V-belt inspection, brake bleeding and pad burnishing, differential-lock cable adjustment, torque tables, capacities, wear limits, clearances, shim data, and electrical test specifications.
Engine and Transmission Repair Depth
The engine chapter goes well beyond tune-up work. It identifies which top-side, left-side, right-side, and oil-strainer jobs can be completed with the engine in the frame, then documents full engine/transmission removal when center-crankcase access is required. Top-side coverage runs through camshaft and rocker inspection, valve and guide measurements, piston-ring and cylinder checks, and separate front- and rear-cylinder timing setup. Valve, guide, and seat machining is referred to a qualified machine shop rather than presented as an in-house repair procedure.
Center-crankcase work includes secondary bevel-gear backlash measurement, tooth-contact evaluation, and shim correction, followed by oil-pump, crankshaft, countershaft, shift-fork, and transmission assembly inspection. One timing-specific caution explains that the cam-sprocket tab washer must cover the alignment hole; if the alignment pin comes out, severe engine damage can result. The manual also warns against losing tension on a loose cam chain during timing work.
EFI and Electrical Fault Isolation
The EFI material combines mechanical access with live circuit testing. Fuel-pump operation, pressure, supply voltage, and level-sender resistance are covered alongside throttle-body removal, oil-pressure testing, and cooling-system component checks. The electrical chapter uses connector locations, wire colors, voltage and resistance tests, relay substitution checks, and ECU fault codes to isolate sensor, ignition, charging, starting, lighting, and 4WD-control faults.
Tool tables identify the Compression Tester Kit 0444-213, Diagnostic Harness 0486-219, Test Plug/Error Code List Kit 0444-216, Oil Pressure Test Kit 0644-495, and Pinion Gear/Shaft Removal Tool 0444-127, among other Arctic Cat tools. The PDF provides connector-level harness tests and component illustrations, but it does not include a stand-alone full-vehicle wiring diagram.
4WD, Chassis, and Illustrated Shop Reference
The drive-system section separates front-differential procedures from rear gear-case work. It covers the front-drive actuator, differential-lock hardware, pinion removal, housing shim selection, backlash and end-play verification, axle seals, CV joints, and the rear clutch-pack assembly. The actuator and rear clutch pack are identified as non-serviceable assemblies, which matters when planning parts for a repair. A second component-specific caution notes that reversing the CV-axle bearing ring during assembly can cause severe damage.

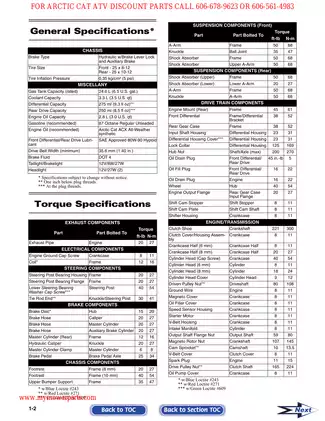

Condition/remedy troubleshooting tables address engine starting and noise, fuel delivery, charging and ignition, drive engagement, braking, suspension, steering, and tire wear. The illustrated reference material includes cam-timing and sprocket-alignment views, secondary bevel-gear tooth-contact patterns, differential shim-selection figures, TPS indicator-position views, fuel-pump orientation photos, and CV-axle assembly images.
Fuel-system work involves pressurized gasoline and battery isolation, while differential, axle, brake, and suspension procedures require the ATV to be securely supported. Follow the manual's warnings and use appropriate shop equipment before beginning any repair.
