2009 Triumph Thunderbird Factory Service & Repair Manual (P/N 3850700)

The Triumph factory service manual P/N 3850700, Issue 1 (July 2009) covers the 2009–onwards Thunderbird with its 1596 cc, liquid-cooled, 270-degree parallel twin. Coverage includes models with and without ABS and California evaporative-emissions equipment.

Supplied as one 480-page PDF in English.

• Engine repair: Engine removal and installation, cylinder head inspection, camshaft and idler gear timing, piston and liner service, and balancer shaft installation.

• Clutch and transmission: Wet-clutch disassembly, torque compensator service, gearbox shaft rebuilds, selector inspection, and output pulley flange removal.

• Fuel and engine management: DTC pinpoint tests, fuel-pressure testing, throttle-body balancing, throttle position sensor adjustment, and idle-speed control setup.

• Lubrication and cooling: Oil-pump inspection, lubrication circuits, thermostat testing, pressure-cap checks, water-pump service, and coolant replacement and bleeding.

• Brakes and ABS: Front caliper and master-cylinder repair, separate ABS bleeding procedures, wheel-speed sensor tests, and hydraulic modulator replacement.

• Suspension and final drive: Fork overhaul, steering-head bearing adjustment, swingarm bearing service, belt tension checks, and cush-drive inspection.

• Electrical diagnosis: Starter and charging-system fault tracing, ECM connector pin numbering, circuit diagrams, and complete wiring layouts for ABS and non-ABS configurations.

Written primarily for trained technicians in a properly equipped workshop, this manual also supports basic owner maintenance and repair where mechanical knowledge and the necessary hand and special service tools are available.

Engine Repair and Factory Specifications

Engine assembly coverage extends to crankcase separation, crankshaft and connecting-rod bearing selection, cylinder-liner resealing, and exhaust decompressor service. The manual identifies non-replaceable valve guides and seats and explains that the crankshaft cannot be reground.

Camshaft service cautions explain how uneven loading can damage the camshaft ladders, which are supplied only with a replacement cylinder head.

Timing procedures identify timing pin T3880039 and idler gear pin spanner T3880041. The scheduled maintenance chart covers routine servicing. Reference tables cover torque sequences, valve clearances, cooling-system test pressures, chassis tolerances, wear limits, and fluid capacities. The Oil Circuit Diagram separates the engine and transmission lubrication feeds.

Fuel-Injection Diagnosis and Adjustment

Engine-management charts connect fault codes with wiring checks and component tests, supported by freeze-frame and sensor data. Separate faults for reversed MAP sensor hoses and oxygen-sensor connections help distinguish a connection error from a failed sensor before parts are replaced.

Throttle-body balancing requires Triumph diagnostic equipment; conventional vacuum-balancing equipment is not used. Throttle position sensor replacement, idle-speed stepper adjustment, and engine-management adaptation are covered. Detailed software operation is addressed in the separate Triumph Diagnostic Tool User Guide.

California coverage explains charcoal-canister operation, purge-valve testing, and evaporative hose routing.

Cooling, Brakes and Chassis Service

Cooling-system references include the Coolant Expansion Tank Hose Routing drawing and inspection procedures for the water pump, thermostat, and pressure cap.

The ABS chapter adds live wheel-speed data, fault-code tests, and the ABS Hydraulic Circuit Layout. Front caliper overhaul is covered, while rear caliper pistons and seals are non-serviceable; a faulty rear caliper requires assembly replacement. The ABS ECM and hydraulic modulator are also replaced together.

Fork assembly illustrations and wheel-bearing tool-selection charts support chassis work. Frame coverage includes inspection and bodywork removal; structural frame repair is expressly prohibited.

Final Drive Belt Service

Belt tension specifications distinguish side-stand and support-stand measurements. The refitting procedures warn that omitting the settling operation after engine or swingarm removal can leave the belt loose and damage the belt or other components.

Electrical Testing and Wiring

Diagnosis - Charging Circuit and Circuit Diagram - Starting and Charging accompany stator and regulator/rectifier testing. Complete-system wiring diagrams distinguish non-ABS motorcycles and two ABS configurations, identified by a 15-amp or 20-amp fuse at position 6.

Follow the manual's precautions for pressurized fuel, brake hydraulics, and supporting the engine during removal.

File Format and Readability

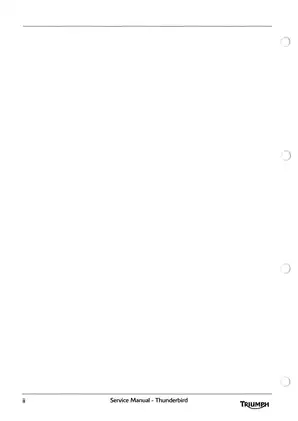

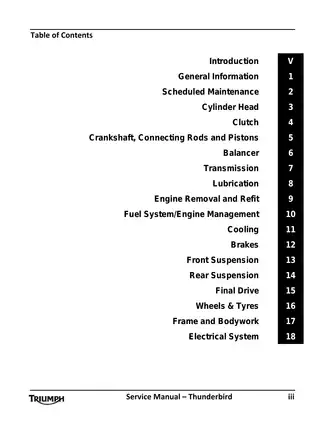

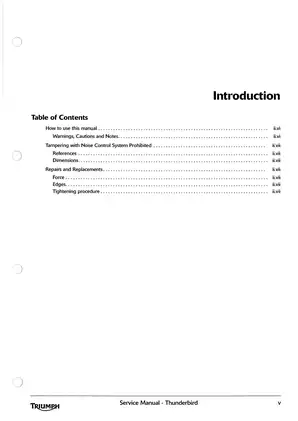

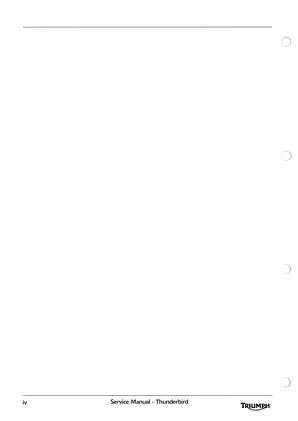

The page count includes eight preliminary pages containing the title/copyright page, contents, introduction, and blanks, plus eight chapter-end blank pages. No separate supplement is included.

Text search: An embedded OCR layer supports searches in the service text, with recognition errors affecting some words and small wiring labels.

Navigation: No embedded PDF bookmarks.

Wiring diagrams: Color complete-system layouts are included. Small pin numbers and wire codes in these dense diagrams require zooming.
