Scania Marine Diesel Engine 11-Series manual (P/N 1 588 419, 1 715 049, 1 715 020)

Built from eight separate Scania publications, this 595-page PDF set combines operating, diagnostic, fuel-system, cooling-system, and internal engine repair information for the 9-, 12-, and 16-liter D9/D12/D16 families. Coverage centers on the DC9 five-cylinder, DI12/DC12 inline-six, and DC16 V8 industrial engines. The operator’s manuals cover EMS S6/PDE versions; the 12-liter work description also includes injection-pump engines, and the 12- and 16-liter work descriptions extend to industrial and marine arrangements.

Document set: Cooling System, Part No. 1 588 419 — 23 pages; 12-Liter Work Description, Part No. 1 588 557 — 99 pages; 16-Liter Work Description, Part No. 1 588 778 — 131 pages; DC9 Operator’s Manual, opm05-9a en / 1 715 020 — 57 pages. DI12/DC12 Operator’s Manual, opm03-12a en / 1 588 758 — 62 pages; DC16 Operator’s Manual, opm02-16a en / 1 588 763 — 58 pages; PDE Fuel System Work Description, Article No. 1 588 862 — 42 pages; 9-Liter Five-Cylinder Work Description, Part No. 1 715 049 — 123 pages.

• Engine removal and internal repair procedures include engine removal and installation, universal-stand mounting, cylinder-head service, valve and valve-seat work, valve-guide and injector-sleeve replacement, cylinder-liner machining and installation, piston and connecting-rod service, crankshaft and flywheel work, timing gears, camshafts, lubrication components, and turbocharger checks.
• Engine-family-specific procedures cover the 9-liter five-cylinder balance-shaft unit and crankcase ventilation, DI/DC12 injection-pump and EMS/PDE builds, and 16-liter DC/DI arrangements with all-speed and single-speed fan-drive hardware.
• PDE fuel-system service covers unit-injector removal, installation, and adjustment; separate adjustment orders for 9-, 12-, and 16-liter engines; PDE31 and PDE32 setup; feed-pump and fuel-filter service; system bleeding; feed-pressure testing; pressure-relief-valve checks; and unpressurized return-line replacement.
• EMS operation and troubleshooting includes type-designation decoding, EMS S6/PDE control-unit and coordinator flash-code tables, limp-home operation, starting and shutdown checks, maintenance schedules, oil and coolant service, air-cleaner and fuel-system care, battery checks, valve-clearance and injector-rocker adjustment, long-term storage, and technical data.

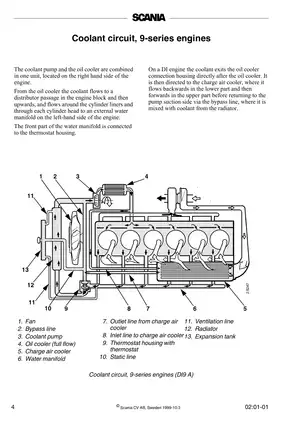

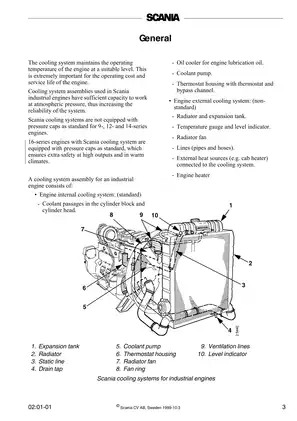

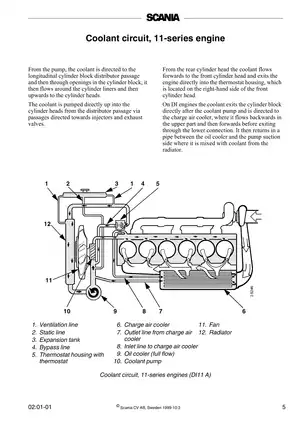

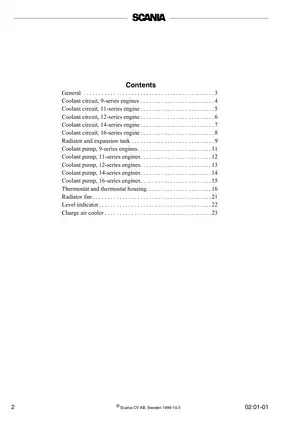

• Cooling-system architecture is separated into 9-, 11-, 12-, 14-, and 16-series coolant circuits, with dedicated coolant-pump descriptions, radiator and expansion-tank arrangements, thermostat housings, fan hardware, level indicators, and charge-air-cooler principles for DI water-to-air and DC air-to-air systems.
• Factory specifications and service tooling include component torque tables, adjustment and clearance data, inspection and machining limits, cylinder-liner height data, crankshaft regrinding dimensions, oil- and fuel-pressure test specifications, capacities, and special-tool references.

Variant control matters in this set. The 12-liter work description separates injection-pump engines from PDE builds and shows different timing-gear-casing sealant patterns for earlier and later versions. The 16-liter material distinguishes DC and DI layouts, while the fuel manual separates 12-liter layouts, 9-/16-liter industrial layouts, and the 16-liter marine arrangement for filter and bleeding work. On the 9-liter engine, the main-bearing-cap procedure changes at engine No. 6 285 724, so bottom-end repair data must be selected by engine number.

Scania tool numbers are identified throughout the procedures. Examples include universal stand 587 692, PDE31 and PDE32 setting tools 99 414 and 99 442, compression tester 98 249, cylinder-liner cutter 587 512 with extension 588 672, connecting-rod checking fixture 587 110, and fuel-pressure gauges 98 113 and 99 362.

Useful illustrated references include the DI9 A, DI12 A, and DC16 A coolant-circuit layouts, the 9-/12-/16-liter unit-injector adjustment-order charts, PDE31/PDE32 setting-tool views, feed-pump pressure-gauge connection layouts, 16-liter gear-drive and camshaft-setting views, and open/closed crankcase-ventilation layouts for the 9-liter engine.

The fuel-system work description flags the liquid-hammer risk if fuel enters a cylinder during unit-injector repair. The engine work descriptions also warn that rotating the camshaft or crankshaft after intermediate-gear removal can bring pistons and valves into contact.

Scope note: the 9-liter work description and DC9 operator’s manual are industrial-engine publications. The 12- and 16-liter work descriptions cover industrial and marine engines, but their separate operator’s manuals are industrial editions. Standard engine components are covered; machine-specific installation equipment, a full parts catalog, and complete machine wiring diagrams are outside this set. Before any maintenance or repair, disable the starting system and follow the engine-lifting, hot oil/coolant, battery, and fuel-system safety instructions in the opening pages.
