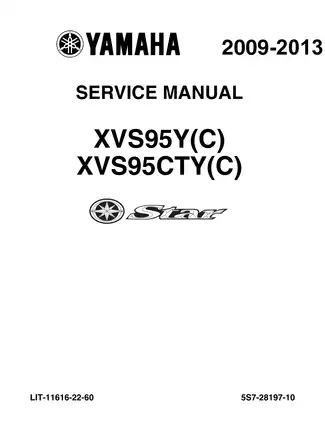

2009–2013 Yamaha XVS950 V-Star Service Manual (P/N LIT-11616-22–60)

• Covers 2009–2013 Yamaha XVS950 V-Star models, including base and Tourer variants (XVS95Y, XVS95CTY, XVS95YC, XVS95CTYC) equipped with electronic fuel injection.

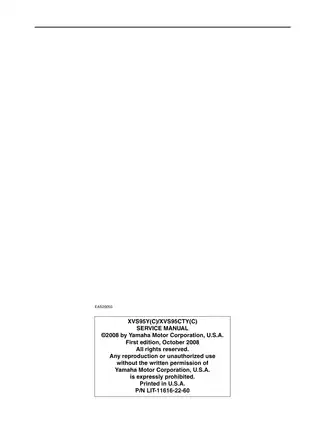

• Official Yamaha publication P/N LIT-11616-22–60 (First Edition, October 2008), comprising 392 pages of factory-authorized reference material.
• Features 51 detailed wiring and cable routing diagrams alongside 27 engine-specific tightening torque tables.
• Supplies essential PDF workshop manual data, routine service schedules, diagnostic fault codes, component testing procedures, and complete repair protocols.
• Details critical subassemblies including the constant mesh transmission, wet multiple-disc clutch, throttle bodies, telescopic front fork, and evaporative emission control system.

Documented Systems and Diagnostics

This factory reference outlines general maintenance intervals, engine performance metrics, and chassis adjustments. Chapters detail the procedures for engine disassembly, camshaft inspection, and valve train clearance verification. Independent mechanics and DIYers can avoid expensive dealership labor by following the detailed step-by-step instructions for high-ticket tasks, such as throttle body synchronization, hydraulic brake system bleeding, drive belt slack adjustment, and front fork rebuilds. Technicians will find thorough flowcharts for troubleshooting electrical circuit faults and calibrating the fuel injection system.

Beyond the aforementioned schematics, the document is heavily illustrated with exploded diagrams, lubrication system charts, self-diagnostic function tables, electrical circuit diagrams, and job instruction charts to provide a clear visual path for every teardown. The text also covers frame-level structural checks, suspension service thresholds, and evaporative emission control system requirements specific to the air-cooled V-Star platform. Direct access to the ECU self-diagnostic mode (Codes 01-60) through the multi-function meter unit allows technicians to instantly pinpoint sensor failures without needing external diagnostic scanners, maximizing daily workshop efficiency and eliminating trial-and-error parts swapping. Working on high-pressure fuel systems and electrical circuits requires adherence to factory safety protocols to prevent component damage or personal injury; this documentation provides the essential baseline data to verify safe operational parameters before testing.

Engine, Chassis, and Electrical Specifications

Reliable bench-work relies on precise data. Engine specifications list a 942.0 cc displacement paired with a 9.00:1 compression ratio. Cylinder head valve clearance for the intake is strictly documented at 0.08–0.12 mm. When servicing the XVS950, a common pitfall involves throttle body synchronization; technicians must strictly avoid altering the factory-set throttle valve adjusting screws, as the manual clearly dictates using only the bypass air screws to prevent permanently ruining the throttle body calibration. Additionally, when adjusting the final drive, maintaining the exact 3.0–5.0 mm belt slack is hyper-critical; an overtightened belt will rapidly overload the drive axle bearings, while excessive slack can cause it to skip and damage the swingarm.

To ensure optimal injector delivery across varying loads, the fuel system must maintain a constant 392 kPa. Standard rear suspension configurations require a gas pressure of 1200 kPa. Electrical system baselines are equally specific. Stator coil resistance should measure between 0.128 and 0.192 ohms, while the primary electrical layout relies on a 40.0 A main fuse. Detailed cable routing maps and comprehensive torque specifications for all major structural fasteners round out the technical reference.
