New Holland T8010, T8020, T8030 & T8040 Tractor Service Manual (2006)

This January 2006 New Holland service manual covers T8010, T8020, T8030 and T8040 tractors in the T8000 series. Engine removal and installation are included, but internal engine repair requires separate publication 87515682, which is not included.

Searchable Text and Schematic Limitations

Search and diagram detail: Text chapters are searchable, but there are no embedded PDF bookmarks. Small schematic labels require zooming. The oversized hydraulic and electrical sheets have content cut off at their page edges. The electrical schematic set is headed “EURO MX MAGNUM SERIES TRACTOR” and should not be treated as a complete T8000 wiring reference.

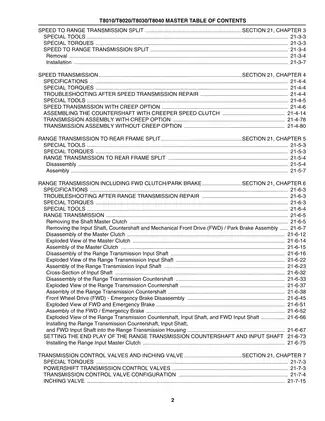

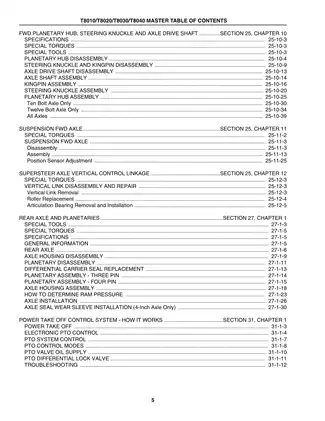

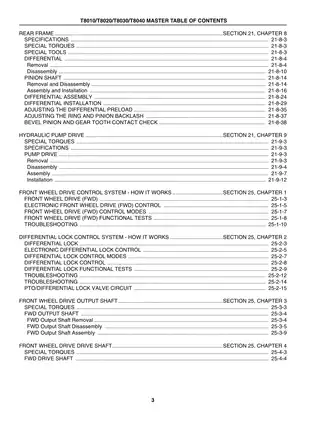

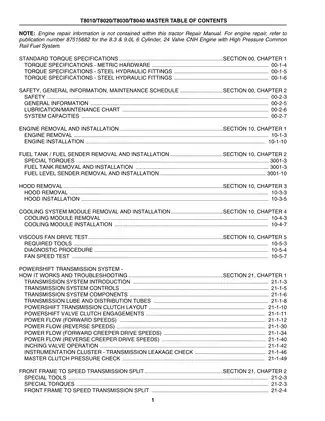

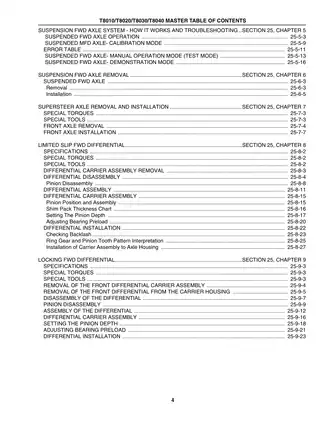

One printable, English-language 1,747-page PDF, including the 21-page master contents, 56 chapter dividers, 22 blank pages, two notes pages and six inserted schematic sheets.

Powershift, Hydraulic and Tractor Repair Coverage

The following selected coverage highlights outline major workshop tasks rather than reproduce the full contents. Other topics include viscous fan-drive testing and pedal-switch adjustments.

• Engine and tractor access: Step-by-step instructions for engine removal and installation, cab raising and removal, cooling-module removal, and front-frame, speed-transmission and range-transmission splits.

• Powershift transmission: Speed and range transmission disassembly, clutch-pack assembly, control-valve service, leakage checks and calibration, with separate procedures for creeper-equipped configurations.

• Axles and PTO: Limited-slip and locking differential repair, suspended FWD and SuperSteer axle service, rear planetaries, and single, reversible and dual-speed PTO assemblies.

• Hydraulics and hitch: Charge-pump and PFC piston-pump testing, priority/regulator valve service, remote-valve and coupler repair, and electronic hitch control diagnosis.

• Brakes and steering: Brake-valve and brake-cylinder disassembly, steering-column and steering hand-pump service, and SuperSteer wheel toe-in adjustment.

• Electrical diagnosis: Connector views, pin assignments, circuit test charts, and instrumentation, TMF, transmission and ARM fault-code troubleshooting with controller configuration procedures.

• Cab climate control: Standard and automatic temperature control diagnosis, refrigerant recovery and charging, compressor-clutch service, and individual-component or complete-circuit flushing procedures.

This manual is suited to experienced tractor technicians with lifting, splitting and hydraulic/electrical test equipment; its overhaul procedures assume established workshop skills.

Transmission, Axle and PTO Overhaul

The drivetrain sections distinguish speed and range transmission assemblies, including the master clutch, FWD clutch and park brake. Exploded views, shaft end-play specifications and troubleshooting tables address both assembly work and faults that appear after repair.

The transmission leakage check connects pressure readings in particular gear groups with individual clutch circuits. That relationship helps a technician narrow the suspected leakage path before choosing which assembly to investigate.

Axle setup: Differential procedures cover bearing preload, pinion depth and ring-gear backlash. Special-tool references include pinion setting kit CAS-1898, while the SuperSteer wheel toe-in setting diagram and dimensioned tool-layout drawings support alignment work.

PTO clutch section views accompany the assembly procedures. For larger access jobs, the manual identifies splitting stand 17-526A and rear housing handler 17-527, alongside the required support arrangements.

Before inspecting or testing these heavy-duty systems, relieve hydraulic pressure and support the chassis on suitable safety stands.

Hydraulic Flow, Remote Valves and Hitch Control

Hydraulic troubleshooting separates the regulated circuit, charge/lubrication supply and PFC axial piston pump. Pressure and flow tests distinguish standard-flow and optional MegaFlow arrangements, with compensator inspections and remote-coupler checks.

Fault isolation: The remote-valve and hitch signal-check discussion explains how one leaking signal check can reduce performance elsewhere in the system. This gives the buyer more than component removal instructions: it connects system symptoms with specific hydraulic paths.

Priority/regulator and hitch-control valve cross-sections explain internal operation. The European hydraulic poster carries reference RAC. 87518877.

The rear-frame procedure also warns that excessive rockshaft travel during lift-cylinder removal can damage the hitch-position sensor.

Electrical Tests and Controller Calibration

Electrical troubleshooting supplies connector and pin-location views, wire references, expected test readings and possible causes of incorrect results. Circuit-specific tests cover starting, charging, lighting and power distribution.

Configuration sections address the instrumentation, armrest, transmission, remote hydraulics, hitch and PTO. Front-suspension calibration and error-message explanations accompany the suspended-axle diagnostics; certain transmission menus require the Electronic Service Tool.

The starting-system test section specifically warns that a self-powered test light can damage system components.

A/C Diagnosis and Service References

ATC controller input/output tests help distinguish a controller problem from faults in its connected circuits. The air-conditioning temperature/pressure chart accounts for ambient temperature and humidity when interpreting system performance.

Flushing coverage distinguishes individual components from the complete refrigerant circuit and excludes the compressor from solvent flushing. The manual restricts mobile A/C service to authorized, certified technicians.

For routine reference, the lubrication/maintenance chart sits alongside system capacities, component-specific tightening values and general metric, inch-series and hydraulic-fitting torque tables.

Examples of Transmission and A/C Setting Data

Shaft adjustment: The speed-transmission specifications give installed countershaft, input-shaft and output-shaft end play as 0.03–0.13 mm (0.0012–0.0051 inch).

Calibration conditions: The clutch-calibration temperature screen specifies a transmission-oil range of 60–105°C (140–221°F), with separate explanations of low- and high-temperature messages.

Compressor clutch: The A/C service specifications list a front-plate air gap of 0.016–0.031 inch (0.41–0.79 mm), supported by measurement and adjustment instructions.
