Toyota FJ Cruiser 2013 Owner's Manual PDF

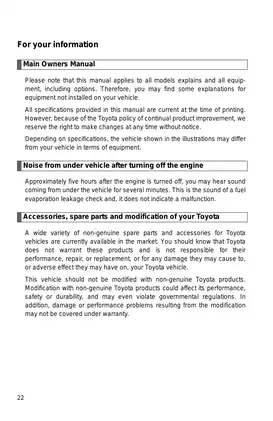

Toyota’s Main Owner’s Manual covers the 2013 FJ Cruiser in 2WD and 4WD configurations, with automatic or manual transmission and option-dependent equipment. Some sections describe features that may not be installed on a particular vehicle.

Searchable PDF with Section Bookmarks

Text search and navigation: Searchable text and 32 embedded PDF bookmarks provide access to the main sections. Small numbers in the fuse-box layouts are readable when enlarged.

One printable, 530-page PDF contains the English manual, including 11 pages of French-language Canadian seat belt and airbag information and five largely blank section-end pages. Printed pagination is discontinuous: opening pages 2–21 and the alphabetical index are omitted.

Driving Systems, Owner Maintenance and Emergency Procedures

The selected topics below show the main coverage rather than a complete contents list. Other sections include engine immobilizer operation and HomeLink garage-door opener training.

• Drivetrain controls: Automatic and manual transmission operation, configuration-specific transfer modes, A-TRAC, AUTO LSD, rear differential lock, Crawl Control and clutch start cancel.

• Owner maintenance: Step-by-step instructions for rear seat cushion removal and installation, maintenance-reminder reset, TPMS initialization, air-conditioning filter replacement and remote-control battery replacement.

• Electrical equipment: Fuse identification and replacement, selected exterior bulb replacement, warning-light explanations, and Fuse Layout and Amperage Ratings charts.

• Emergency procedures: Flat-tire replacement, spare-wheel handling, jump-starting, shift-lock override, overheating checks and configuration-specific emergency towing.

• Towing and loading: Trailer ratings, tongue-weight distribution, hitch setup, trailer lighting, cargo calculations and towing precautions.

• Occupant protection: SRS airbags, front-passenger occupant classification, RSCA OFF operation, LATCH child-restraint installation and seat-belt locking functions.

• Interior equipment: Air-conditioning and defogger operation, audio and Bluetooth setup, hands-free phone use, rear-view monitor guidance and compass calibration.

This manual suits owners carrying out basic checks and owner maintenance with the listed hand tools; more involved repairs require additional service information.

Drivetrain Configurations and Fluid References

The powertrain data identifies the 1GR-FE 3956 cc (241.4 cu. in.) V6. Separate transfer-control illustrations distinguish automatic-transmission H2/H4/N/L4 modes from manual-transmission H/HL/N/LL modes, with HL and LL locking the center differential.

AUTO LSD applies to 2WD models. Equipment-specific sections explain A-TRAC, rear differential lock and Crawl Control, including operating conditions and interactions with ABS, Brake Assist, VSC and TRAC/TRC.

Cooling and transmission fluids: Coolant capacity differs by transmission: 10.4 qt (9.8 L) for automatic models and 9.9 qt (9.4 L) for manual models. Automatic transmission data lists Toyota Genuine ATF WS and an 11.3 qt (10.7 L) reference capacity; fluid replacement is referred to a Toyota dealer.

Manual transmission data specifies 1.9 qt (1.8 L), API GL-4 or GL-5 SAE 75W-90. Using fluid other than ATF WS in the automatic transmission can cause poor shifting, vibration, lockup and eventual transmission damage.

Differential and transfer data: Front differential capacity is 1.48 qt (1.40 L) with manual transmission or 1.64 qt (1.55 L) with automatic transmission. Rear capacity is 2.59 qt with differential lock or 2.64 qt without; separate transfer-fluid specifications are also included.

Matching these tables to the vehicle’s transmission and differential equipment supports fluid selection, maintenance and repair planning.

Trailer Ratings and Break-in Guidance

The towing tables distinguish 2WD and 4WD configurations and identify models meeting SAE J2807 trailering requirements. Braked trailer weight rating is 4,700 lb (2,130 kg); unbraked TWR is 1,000 lb (453 kg).

GCWR, GVWR and GAWR explanations accompany the loading information. Break-in precautions address braking, engine use and towing, with separate towing guidance for newly replaced powertrain components.

Safety Systems and Illustrated References

The Airbag System Components layout identifies the airbag sensor assembly ECU, front and side/curtain sensors, driver-seat position sensor, front-passenger occupant classification ECU and sensors, buckle switches and seat belt pretensioners.

Child-restraint illustrations show rear-seat LATCH anchors and top-tether locations, with ALR/ELR locking explanations and references to FMVSS225, FMVSS213 and SAE J1819. Rear View Monitor illustrations explain vehicle-width and distance guide lines; the Engine Compartment layout identifies owner-check locations.

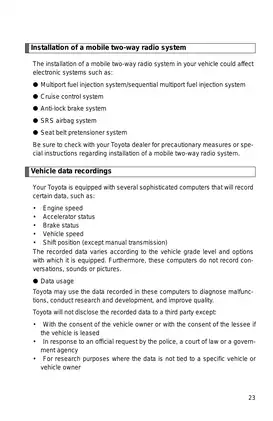

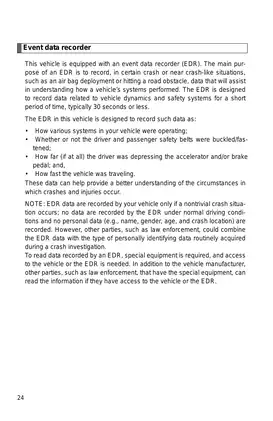

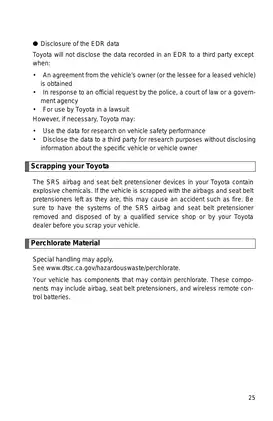

SRS airbags, seat belt pretensioners, braking systems and other safety-critical components require appropriate service information and handling practices.

Owner Procedures and Repair Scope

TPMS and replacement items: Initialization instructions are separate from transmitter ID registration, which Toyota assigns to a dealer after valve/transmitter replacement. The key-battery procedure identifies the CR2016 replacement battery.

The rear cushion installation section explains the risk of loose retaining dials and unsecured cushions. Wheel-installation cautions explain how lubricated fasteners or incorrect nut orientation can damage wheels or fasteners and allow a wheel to loosen.

Service information: Scheduled maintenance intervals are referenced to the separate Scheduled Maintenance Guide or Owner’s Manual Supplement. Toyota recommends Toyota Repair Manuals for work beyond the owner procedures.

Engine and transmission teardown/overhaul, special service-tool part numbers and dedicated wiring diagrams/electrical schematics are outside this manual’s scope. Electrical coverage centers on fuse layouts, circuit identification, warning indicators and system operation.

A Sample of Oil, Wheel and Brake Specifications

Engine oil: Toyota recommends ILSAC GF-5 SAE 0W-20. Drain-and-refill reference capacity is 6.4 qt (6.1 L) with a filter change or 6.0 qt (5.7 L) without; the manual also explains checking the dipstick level.

Tires and wheels: The listed P265/70R17 113S tires use a recommended cold pressure of 32 psi, including the spare. Wheel nut torque is 83 ft-lbf (113 N·m).

Brake wear: The specification tables give a 0.04 in. (1.0 mm) wear limit for both brake pads and parking brake linings.
