2003–2006 Suzuki RV125 VanVan Service Manual

Suzuki’s factory service manual covers the 2003–2006 RV125 VanVan, with RV125K3 procedures and dedicated RV125K4/K5 and RV125K6 update chapters. The foreword carries Suzuki Motor Corporation’s 2003 copyright.

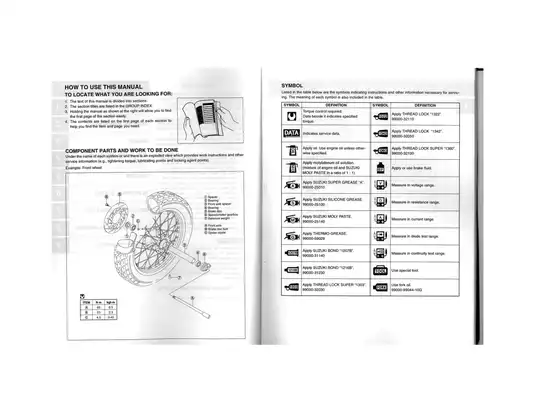

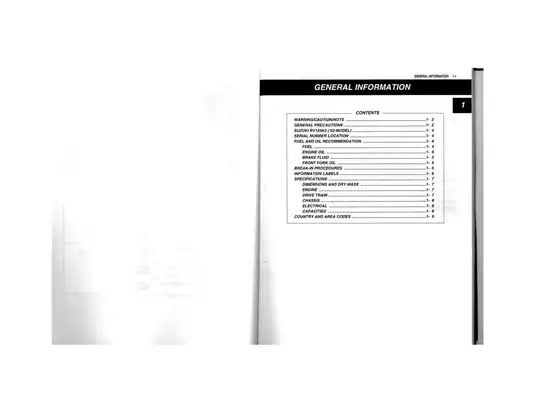

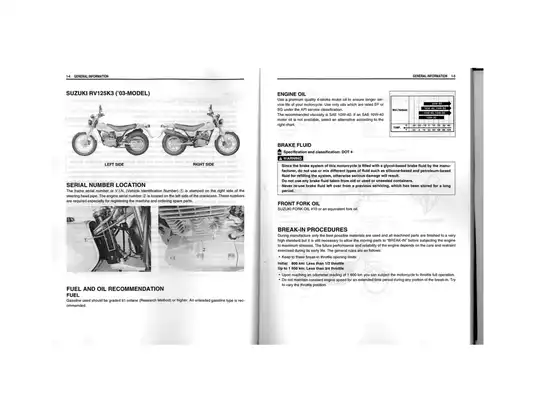

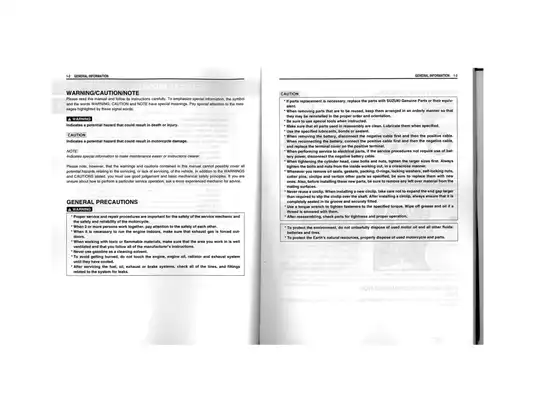

Reading the Two-Page PDF Layout

Search, navigation and diagram detail: PDF text search and embedded bookmarks are not available. Some content is sideways, and small wiring-diagram labels require zooming.

This single printable, English-language PDF has 128 pages, including two introductory PDF pages and the model-update chapters. Most PDF pages reproduce two printed manual pages.

Engine Overhaul, Carburetor Testing and Chassis Service

These selected coverage highlights outline the main workshop content rather than reproduce the full contents list. Additional topics include battery servicing and headlight adjustment.

• Maintenance and condition checks: Periodic maintenance charts, valve-clearance inspection, drive-chain adjustment, compression testing and oil-pressure checks.

• Engine and transmission repair: Engine removal, crankcase separation, cylinder-head service, piston inspection, transmission disassembly and wet multi-plate clutch repair.

• Carburetor and PAIR system: Carburetor cleaning and adjustment, heater and throttle-position-sensor checks, plus PAIR hose inspection and control-valve testing.

• Brakes and wheels: Front caliper and master-cylinder service, hydraulic bleeding, rear drum-brake inspection and wheel-bearing replacement.

• Suspension and steering: Telescopic front-fork overhaul, steering-stem bearing service, swingarm-bushing replacement and rear shock-absorber inspection.

• Electrical diagnosis: Charging, starting and ignition troubleshooting, starter-motor overhaul, relay tests and side-stand interlock checks, supported by circuit diagrams.

Written for mechanics with the knowledge, skills and equipment needed to service Suzuki motorcycles, including the specified special tools.

Engine Overhaul and Model-Specific Service Data

Step-by-step procedures cover engine removal and reinstallation, valve-guide replacement, valve-seat service and camshaft timing. Internal inspection data include valve-stem deflection, piston-ring end gaps, connecting-rod big-end side clearance and crankshaft runout.

Transmission coverage extends to countershaft and driveshaft disassembly, gearshift-fork inspection and reassembly details. Clutch checks address plate wear, distortion, spring condition and the release bearing. Oil-pump removal and installation are included, but the pump assembly is not intended to be dismantled.

The RV125K6 chapter revises cylinder-head-related data, including valves, guides, springs and camshaft specifications. It refers back to chapters 1–8 for details carried over from earlier models, keeping the changed specifications alongside the shared repair procedures.

MIKUNI BS26 Adjustment and PAIR Testing

The carburetor section covers float-height and fuel-level adjustment, needle-valve inspection, pilot-screw setting restoration and diaphragm positioning. Separate tests address the carburetor heater, thermo-switch and throttle-position sensor.

The cleaning cautions explain how wire cleaning can damage jets and internal passageways. PAIR coverage includes airflow and vacuum checks, hose routing and control-valve replacement; its testing precautions address the risk of damaging the valve with an unsuitable vacuum source.

Fuel-system procedures include ventilation and ignition-source precautions for handling gasoline.

Electrical Fault Tracing and Routing Drawings

Charging-system checks cover battery leakage, generator-coil resistance, no-load output and the regulator/rectifier. The troubleshooting flowchart links these tests to possible faults, helping distinguish a battery problem from a generator, wiring or regulator fault.

Starting and ignition diagnosis includes switch checks, relay inspection, ignition-coil and pick-up-coil measurements, and peak-voltage testing with the specified equipment.

The wiring diagram and starter/interlock schematic show circuit connections; wire-routing drawings and cable-routing views show their physical paths. The engine lubrication system chart and PAIR hose-routing drawing provide separate references for oil flow and air-system connections.

Fork, Steering and Brake Repair

Front-fork procedures detail damper-rod service, seal replacement, spring orientation and oil-level setting. Steering work includes bearing-race replacement and adjustment, with component-specific torque tables covering the front axle and steering-stem head nut.

Brake coverage extends to caliper-piston seals, master-cylinder components, rear brake shoes and the brake cam. Exploded assembly views identify related parts and fastening points.

The rear suspension section covers shock-absorber removal, inspection and replacement, plus swingarm-pivot bushing service. The rear shock absorber itself is identified as unserviceable and is not covered as an internal rebuild.

A Preview of Valve Clearances and Fork Setup Data

Cold intake-valve clearance is specified as 0.08–0.13 mm for RV125K3–K5, while the RV125K6 table specifies 0.03–0.08 mm. The distinction matters when selecting adjustment data for the covered model.

The front-fork section specifies an oil level of 171.0 mm with the fork leg vertical, the spring removed and the inner tube fully compressed. This accompanies the fork reassembly instructions and oil-level gauge illustration.
