2002 Dodge RAM Truck 1500 Service Manual

2002 Dodge RAM Truck 1500 — covers front axle, rear axle, brakes, clutch, and cooling system components. PN 81-370-02059

4.5starstarstarstarstar_half(4)
visibility Preview Available
Dodge 2002 Dodge RAM Truck 1500 Service Manual manual page preview - page 1 of

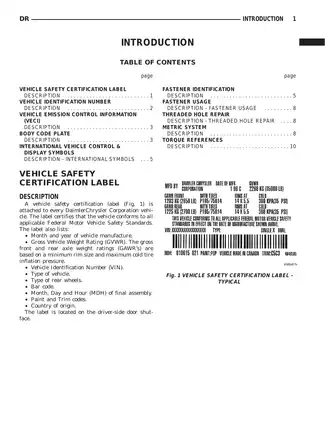

Sample pages from the 2002 Dodge RAM Truck 1500 Service Manual manual

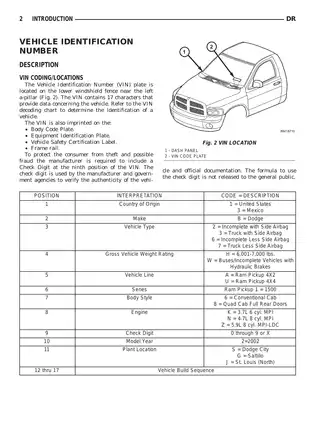

Dodge 2002 Dodge RAM Truck 1500 Service Manual manual preview page 1 - thumbnail

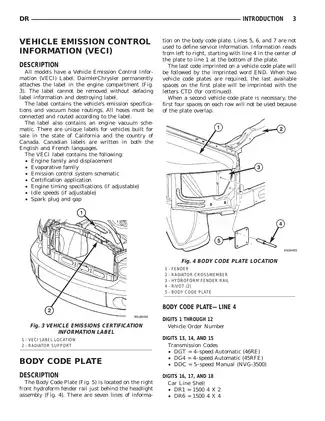

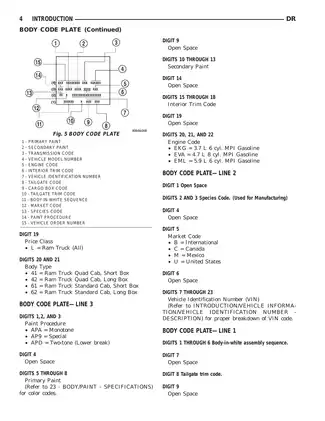

Dodge 2002 Dodge RAM Truck 1500 Service Manual manual preview page 2 - thumbnail
info_outline Click thumbnails to preview different pages
$16.39 (incl. VAT) Original OEM Factory Manuals & Data Instant Download / No Shipping Fees
OR BUY NOW
verified_user
Lifetime Access
Re-download anytime
flash_on
Instant Download
Get it immediately
lock
Secure Payment
PayPal
Technical Safety Notice
keyboard_arrow_down

This official OEM document is intended for professional technicians and skilled operators. Performing service on mechanical equipment involves inherent risks. By purchasing, you acknowledge that RepairLoader provides original manufacturer data for informational purposes. Always prioritize safety: use correct tools, wear protective gear, and consult a certified professional if you are uncertain of any procedure.

Dodge Models Covered & Key Technical Specifications

Models: Dodge RAM Truck 1500
Sub-models / Variants: 4x2, 4x4, Conventional Cab, Quad Cab Full Rear Doors, Short Box, Long Box
Build Years: 2002
Technical Data:

  • Engine displacement: 3.7L, 4.7L, 5.9L
  • Transmission types: 46RE 4-speed Automatic, 45RFE 4-speed Automatic, NVG-3500 5-speed Manual
  • Drive system: 4x2 (RWD), 4x4 (4WD)
  • Fuel type: Gasoline
Technical Specifications
keyboard_arrow_down
Document Number / Seller:
31040 / Patricia Robinson
File Size:
56.03 MB
File Type:
ZIP
Language:
English
Printable:
Yes
Category:
Truck
Last updated / verified
Jul 1, 2025

Dodge Manual Features & Content Preview

2002 Dodge RAM 1500 Technical Documentation

  • Covers 2002 Dodge RAM 1500 trucks with 3.7L, 4.7L, and 5.9L gasoline engines, including 4x2 and 4x4 configurations in conventional and quad cab body styles
  • Official DaimlerChrysler publication, dated 2002
  • Contains 54 exploded-view diagrams, 10 torque specification tables, and 6 wiring/hydraulic system reference charts
  • Files are delivered as a direct download the moment payment clears
  • Indexed PDF search covers every chapter and appendix
  • Stored against your account so you can retrieve it after a hard-drive loss
  • This 2002 service publication is the authoritative document for the 2002 RAM build, specifically documenting the NV3500, 46RE, and 45RFE transmission variants.

Component and System Documentation

The 2002 Dodge RAM 1500 service manual provides extensive coverage of the vehicle's core mechanical systems. Detailed sections document the suspension geometry and alignment procedures, including caster, camber, and toe settings for various wheelbase configurations. The documentation highlights the front and rear axle assemblies, including the C205F and 9 1/4 inch axles, covering everything from hub and bearing removal to pinion gear and ring gear assembly. Electrical system information includes component locations and system diagnostics for modular electronic control systems, while the lubrication and maintenance chapter outlines fluid specifications for engine, transmission, transfer case, and differential components.

Specification and Reference Data

Technical data is presented throughout the manual for diagnostic and assembly purposes. The torque table lists critical values for the 2002 Dodge RAM 1500, such as 204 Nm (150 ft-lbs) for lower control arm frame nuts. Coolant system capacity for the 4.7L engine is documented at 15.4 liters in the specification tables. The Suzuki-based outboard maintenance intervals are unrelated, though this manual follows the same structured data approach for the 9 1/4 inch axle, which specifies 2.32 liters of fluid. Hub and bearing mounting bolts for the 4x4 variant require a torque of 163 Nm (120 ft-lbs). This document serves as a comprehensive reference for professional-grade maintenance and repair of the 2002 Dodge RAM 1500 truck range, encompassing engine, chassis, and drivetrain components.

Document Reference: DaimlerChrysler Corporation 2002

Manual FAQ, Purchase & Download Details

Does this 2002 Dodge RAM 1500 service manual include detailed information regarding the total document page count for this specific publication? keyboard_arrow_down

Provided manual is a comprehensive service document that includes extensive sections on major vehicle systems, maintenance procedures, and technical specifications. It is delivered in a high-resolution PDF format with a file size of 56.0261 MB.

What type of specification tables for tightening fasteners are included in the manual? keyboard_arrow_down

Manual includes comprehensive torque specification tables for standard bolts, as well as metric and SAE fastener identification charts.

Which chapters or sections contain exploded views, parts illustrations, or diagrams for major vehicle systems? keyboard_arrow_down

Service manual is organized into clear group sections covering components like the engine, transmission, suspension, and electrical systems. Each group section contains relevant diagrams and system illustrations to help identify component arrangements. These exploded views and system schematics are located within their respective chapter tab locators.

Can the manual be used to locate electrical wiring diagrams and connector pinout references for the 8W wiring section? keyboard_arrow_down

Document contains the 8W section which includes wiring diagrams and electrical system schematics for the covered vehicle models.
