Dodge RAM 2500 & 3500 (2002) Service Manual Set (P/N 81-370-02057)

The diagnostic books guide you from a trouble code or symptom to the affected system. The service manual then provides the removal, repair, and installation procedures, including mechanical brake service alongside the separate ABS diagnostics.

The vehicle’s Owner’s Manual is the reference for maintenance intervals omitted from the service manual’s schedule section.

PDF Search, Bookmarks, and Wiring Detail

Finding procedures and circuit details: Text search works in the service and diagnostic sections, and all four publications have embedded bookmarks. Many Group 8W pages and the diagram labels in the diagnostic books are outside the searchable text. Zoom in to read small pin numbers and wire codes.

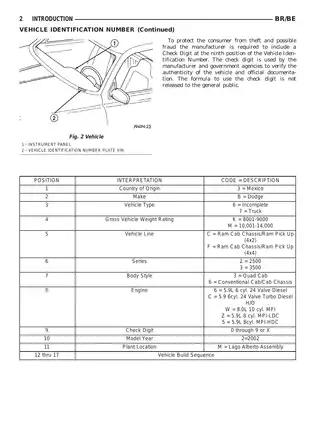

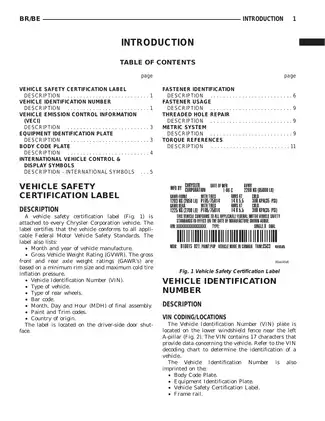

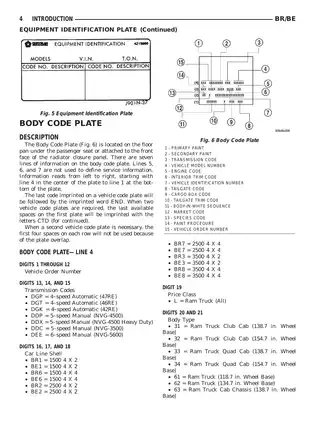

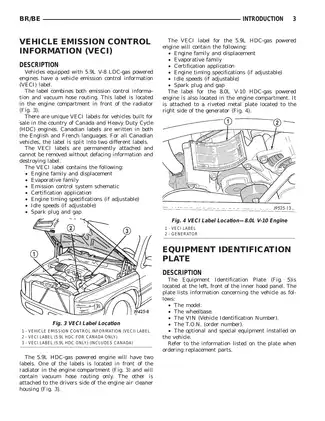

The ZIP contains six printable PDFs totaling 3,109 pages. That total includes the four publications listed above, a separate two-page cover and foreword, and a one-page navigation file. The May 2002 front-axle revisions are included in the service manual’s page count.

Engine, Driveline, and Electrical Troubleshooting

This selection of workshop topics is drawn from the four publications. Other procedures include starter relay testing and parking brake adjustment.

• Engine repair: Step-by-step procedures for engine removal, cylinder-head service, and internal inspection and assembly on the 5.9L V8, 8.0L V10, and 5.9L Cummins turbo diesel.
• Transmissions and transfer cases: NV4500 and NV5600 manual gearbox service, 46RE and 47RE automatic overhaul, and NV241LD and NV241HD transfer-case disassembly and assembly.
• Axles and differentials: Gear-noise diagnosis, differential teardown, and ring-and-pinion setup for the 248FBI front axle and 248RBI, 267RBI, and 286RBI rear axles.
• Suspension and steering: Separate 2WD and 4WD procedures for steering knuckles, hub bearings, and control arms, with wheel alignment and steering-gear service.
• Scan-tool diagnostics: DRBIII test paths for trouble codes and no-code symptoms, with post-repair verification for powertrain, body, and antilock brake systems.
• Wiring and connectors: Group 8W circuit diagrams, connector pinouts, and ground and splice locations for tracing electrical faults.

The service manual was written for professional automotive technicians doing day-to-day repair work. The diagnostic books use the DRBIII for module communication, fault isolation, and verification.

Axle Setup, Transmission Testing, and Brakes

The revised 248FBI pages distinguish vacuum-disconnect service from non-disconnect axle-shaft seal work. The Vacuum Control System diagram shows the transfer-case switch and axle shift motor. The non-disconnect procedures identify Turnbuckle 8885-1, Installer Cups 9039-1, and Receiver 9039-2. Rear axle procedures distinguish Trac-Lok and Powr-Lok limited-slip designs and cover backlash, bearing preload, and gear contact patterns.

Automatic transmission coverage includes valve-body repair, overdrive-unit rebuilding, and electronic governor service. Hydraulic pressure tests help diagnose shift complaints, and clutch-and-band air tests check component application. The service manual also covers propeller-shaft vibration, universal joints, clutch service, rear springs, base brakes, and scan-tool-assisted ABS bleeding.

The pinion-seal procedures explain how overtightening the yoke nut can crush the spacer and alter bearing preload. Use appropriately rated jack stands before working under the truck.

Gasoline and Cummins Engine Service

Gasoline engine diagnostics include compression and cylinder leakage tests, oil-pressure checks, and timing-chain inspection. Diesel coverage includes smoke diagnosis charts, gear-timing checks, and turbocharger and charge-air cooler service. Separate chapters cover exhaust components and emissions controls.

The diesel fuel chapter distinguishes Bosch VP44 pump applications for the 235- and 245-hp engines. It covers pump identification, timing checks, removal and installation, lift-pump pressure testing, and fuel-system bleeding. The pump’s integral control module is non-serviceable, and the procedure warns against turning the engine with the pump removed because the loose drive gear can cause damage.

The powertrain book covers the Cummins ECM as well as the gasoline PCM. Its tests address no-start complaints, injection-pump communication faults, sensor circuits, charging problems, and automatic transmission control faults.

Wiring, Body Electronics, and HVAC

The Fuel/Ignition System, Transmission Control System, and Trailer Tow diagrams can be used alongside the Group 8W connector pinouts and location views. The body diagnostic book adds a CCD Bus System schematic for tracing communication faults between modules, along with tests for instrument-cluster faults, remote keyless entry, power door locks, and theft security.

Body repair procedures cover door adjustment, tailgate hardware, glass replacement, and water-leak diagnosis. HVAC coverage includes performance and refrigerant leak tests, evacuation and charging, heater-core replacement, and blend-door actuator service.

Valve Lash and Cooling Pressure Preview

On the 5.9L Cummins, the valve lash chart separates acceptable inspection ranges from reset targets. If adjustment is required, the targets are 0.010 in. intake and 0.020 in. exhaust, with coolant below 140°F.

The cooling-system leak test specifies 15 psi at normal engine operating temperature. The manual explains how to interpret a slow pressure loss versus a rapid drop and provides separate checks for suspected internal leaks.
