2005–2010 MTD 700 Series Lawn Tractor Service Manual (P/N 769-06667)

This MTD service manual covers the 2005–2010 700 Series lawn tractor platform, including the 760, 770, 780, and 790 drive variants. The November 2010 edition of the Professional Shop Manual carries Form Number 769-06667.

• Drive systems: Variable-speed pulley service, drive belt replacement, mechanical transaxle bench repair, hydrostatic purging, and brake adjustment.

• Steering and front axle: Steering gear and shaft replacement, wheel-bearing inspection, axle and pivot bar service, and front wheel alignment.

• Electrical diagnosis: OCR module testing, key switch and safety circuit checks, starter and afterfire solenoid diagnosis, and charging-system and battery tests.

• Cutting decks: PTO and timing belt replacement, blade synchronization, spindle replacement, blade brake service, deck leveling, and lift and engagement cable repairs.

• Engine accessories and maintenance: Muffler and fuel tank removal, spark plug inspection, air filter service, oil changes, and fuel filter replacement.

• Workshop references: Wiring diagrams, connector views, belt routing illustrations, component assembly views, lubrication charts, and drive-system specification and torque tables.

Written for trained, professional technicians experienced in servicing outdoor power equipment, this manual assumes familiarity with workshop procedures and electrical test equipment.

CVT Drive Repair and Hydrostatic Service

The mechanical transaxle bench-work section covers housing disassembly, differential and bevel gear inspection, bearing and seal replacement, shimming, and reassembly. The consolidated Drive System Torque Values table provides specifications for seat, wheel, transaxle, pulley, and linkage fasteners.

The CVT discussion distinguishes reduced travel speed caused by worn or stretched belts from creep associated with incorrect belts or control-rod adjustment. Upper and lower drive belt illustrations explain the variable-speed pulley arrangement, including the double idler tensioner.

Hydro-Gear 348-0510: Hydrostatic coverage concentrates on fluid checks, purging, brake adjustment, the friction pack, control linkage, and drive belt service. The internal transaxle teardown and rebuilding procedures elsewhere in the manual concern the mechanical gearbox.

Steering, Axle Bearings, and Body Access

The steering section connects tire wear and excessive play with wheel bearings, axle bushings, and the steering-shaft bushing. It also addresses steering gear centering and the consequences of a misadjusted steering link.

Body-panel procedures cover hood mounting, seat brackets, fenders, and the dash. The Troy-Bilt Bronco pictured on the cover represents the shared platform; the tractor's full model number and drive/deck configuration determine the relevant procedures.

Engine Accessories and Fuel-System Maintenance

Engine coverage centers on MTD-built accessories and routine maintenance. Muffler removal differs between single- and twin-cylinder installations. Detailed engine-specific repair information belongs in the applicable engine manufacturer's manual.

Fuel-system coverage includes tank removal, filter replacement, and low-permeation fuel line requirements. The maintenance chapter also provides lubrication and engine-service interval charts, with engine manufacturer recommendations taking precedence where applicable.

OCR Diagnostics and Electrical Schematics

The electrical chapter distinguishes standard systems from 7-pin and 8-pin Operator-Controlled Reverse systems. The OCR plug test separates module faults from safety-switch or harness faults, helping technicians identify the failed circuit before replacing the module.

Start Circuit, Brake and Seat Circuit, and Charging System Drawings accompany the diagnostic explanations. Full wiring diagrams distinguish no-OCR layouts and OCR configurations with and without an ammeter. Charging tests address the stator and regulator/rectifier; voltage-drop testing covers both power and ground circuits.

The manual warns that a standard incandescent test light can overload and damage the OCR module. Its diagnostic guidance specifies high-impedance test equipment. Observe the manual's battery-isolation, lifting, and blade-handling precautions.

Deck Timing, Spindles, and Blade Brakes

The deck chapter documents common belt and deck configurations. It does not cover every configuration; the tractor-specific Illustrated Parts List remains necessary for the complete parts arrangement.

Timed-deck procedures include PTO and timing belt layouts and pulley timing-mark illustrations. Incorrect blade timing can allow the blades to strike each other. Further procedures address spindle replacement, brake puck assemblies, deck lift bushings, and the manual PTO engagement lever and cable.

Selected Transaxle Clearances and Voltage-Drop Limits

For the mechanical transaxle spin test, specified input-shaft backlash is 0.006"–0.014" with the brake shaft held and forward or reverse engaged. The brake rotor-to-pad clearance is 0.010"–0.015".

The electrical diagnostic section gives less than 0.1 volt as the expected voltage drop across a good circuit under load; a reading greater than 0.2 volt indicates a substantial resistance problem.

Searchable Text, Bookmarks, and PDF Contents

Text navigation and wiring detail: The main text is searchable, with embedded bookmarks for chapters and service sections. Some diagram labels are not searchable. Small labels in the detailed wiring schematics are legible when enlarged.

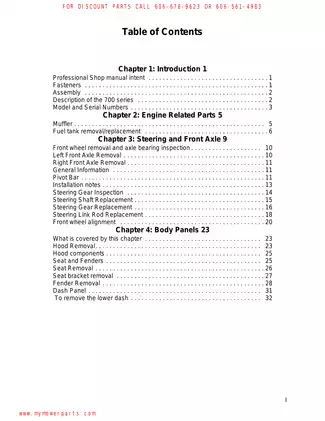

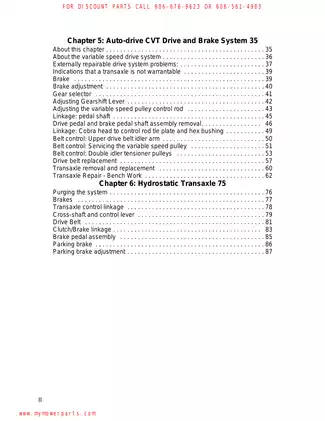

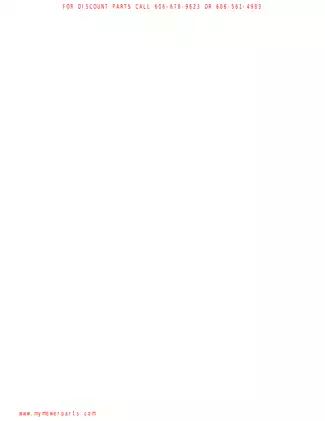

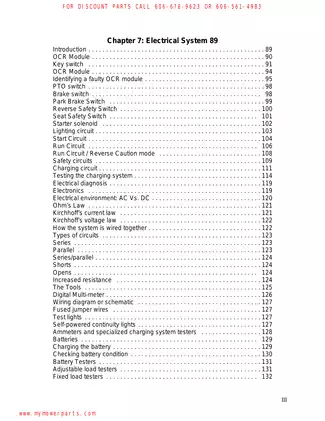

The download is one printable English PDF with 186 pages: 180 numbered pages, one cover, four contents pages, and one unnumbered page without technical content. The numbered section includes six further pages without technical content; all are included in the total.
