Hitachi ZAXIS ZX16, ZX18 & ZX25 Excavator Service & Operator Manual Set (Manual No. KM-1LNE; P/N EM1LN-EN1-1)

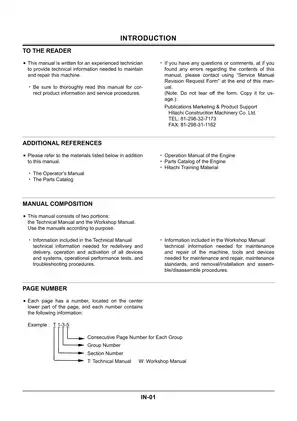

The technical volume explains system operation, performance testing and fault diagnosis; the workshop volume covers component disassembly and repair. The operator’s manual supplies operating instructions and maintenance schedules, while the training text overlaps the technical volume’s performance-test and troubleshooting sections.

Hydraulic Diagnosis, Component Repair and Engine Overhaul

• Hydraulic pumps and valves: Model-specific pump disassembly and assembly, control-valve service, pilot-valve repair, relief-pressure testing and hydraulic-system bleeding.

• Swing and travel drives: Swing-motor service, planetary reduction-gear repair, travel-motor disassembly, brake-valve inspection and center-joint overhaul.

• Undercarriage: Swing-bearing replacement, track-adjuster service, idler and roller inspection, rubber-track replacement and ZAXIS18 adjustable-track components.

• Front attachment and cylinders: Boom, arm and bucket removal, connection-pin maintenance standards, cylinder overhaul, seal replacement and ZAXIS18 span-cylinder service.

• Engine repair: Cylinder-head, piston, crankshaft and timing-gear procedures, with engine-specific inspection limits, reassembly references and electrical-accessory servicing.

• Electrical troubleshooting: Starting and charging circuits, monitor fault charts, relay and fuse checks, connector-terminal views and model-specific electrical circuit diagrams.

The service volumes are written for experienced technicians; the operator’s manual supports machine operation and scheduled maintenance rather than replacing that repair experience.

Pump Testing and Hydraulic Fault Isolation

The hydraulic sections distinguish the PVD-00B pump used on ZAXIS16/18 from the PVD-0B arrangement on ZAXIS25. Main Pump P-Q diagrams, pilot-pressure checks and motor-drainage tests provide references for evaluating hydraulic performance.

Symptom charts address inactive actuators, slow combined operation, cylinder drift and mistracking. Used with the circuit drawings, these checks help narrow a complaint to the pilot circuit, main hydraulic supply or affected actuator before component disassembly.

The ZAXIS25 pump procedures identify fixture ST 7222 and specify which internal groups are replaced as assemblies. They also flag possible oil-seal damage from the pump-shaft splines during removal.

Undercarriage and Cylinder Work

The travel sections explain the reduction gears and counterbalance valves before moving into workshop procedures. Separate maintenance standards cover rollers, idlers, rubber tracks and attachment-pin connections.

ZAXIS18 receives specific coverage for its blade/adjustable-track selector solenoid valve and span cylinder. Cylinder installation instructions explain how sudden compression of trapped air can overheat and damage seals and rings.

Raised attachments, heavy assemblies and pressurized track adjusters require the supporting and pressure-release precautions described in the manuals.

Engine Inspection and Reassembly

The engine chapter includes internal repair information for the installed 3YB1 and 3YE1 engines, alongside shared reference data for 3YA1 and 3YC1. Coverage extends to cylinder-head inspection, valve guides, cylinder bores, pistons and rings, connecting-rod bearings and crankshaft journals.

Reassembly references address timing gears, injection timing and head-gasket selection. Starter and alternator sections include internal inspection and electrical testing, rather than limiting coverage to removal and replacement.

Circuit Drawings and Monitor Diagnosis

The attached drawings include ZAXIS16/18 and ZAXIS25 Electrical Circuit Diagrams, plus separate ZAXIS16, ZAXIS18 and ZAXIS25 Hydraulic Circuit Diagrams. Connector-terminal layouts accompany the electrical drawings, and the additional color sheets highlight components in the ZAXIS16 hydraulic and ZAXIS16/18 electrical circuits.

Monitor troubleshooting covers coolant-temperature and fuel gauges, warning indicators, the buzzer and hour meter. Electrical inspection sections describe voltage, continuity and fuse checks.

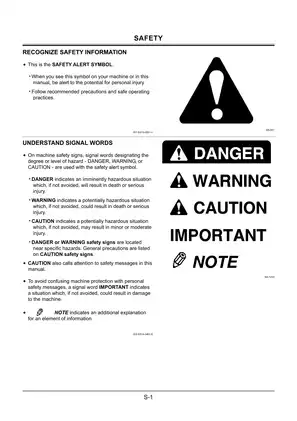

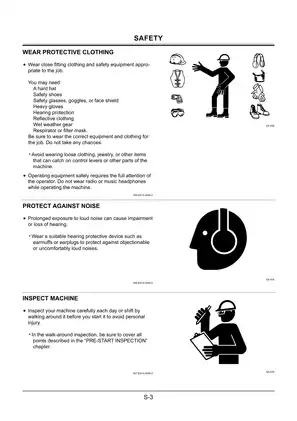

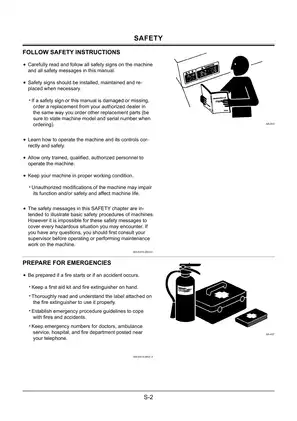

Operation and Scheduled Maintenance

Operating coverage includes ISO-pattern controls, adjustable-track operation, transporting, storage, and hydraulic-breaker and crusher use. Maintenance sections address lubrication, filters, cooling-system care, track sag and bucket linkage, with separate references for rubber and steel crawlers.

Examples of Valve-Clearance and Cylinder-Bore Data

The engine-test tables specify 0.2 mm intake and exhaust valve clearance with the engine cold for the covered excavators.

For the 3YE1 engine, the cylinder-block inspection table distinguishes a standard bore of 77.000–77.019 mm from the 77.2 mm size requiring repair. These references illustrate the difference between normal dimensions and repair thresholds in the overhaul material.

Combined PDF, Bookmarks and Diagram Detail

Search coverage and navigation: Embedded bookmarks reach all four publications, although some top-level labels are in Russian. Text search is available in much of the technical, workshop and training material; the engine chapter, operator’s manual and detailed schematic labels are not searchable. Small wiring and connector labels on the checked sheets are readable when enlarged.

Supplied as one printable PDF containing 1,002 pages. The publication counts above include their covers, internal blank pages, memo pages and revision form; the two additional color circuit sheets are also included in that total.
