2006 Navistar VT275 Diesel Engine Diagnostic/Troubleshooting Manual (P/N EGES-305-2)

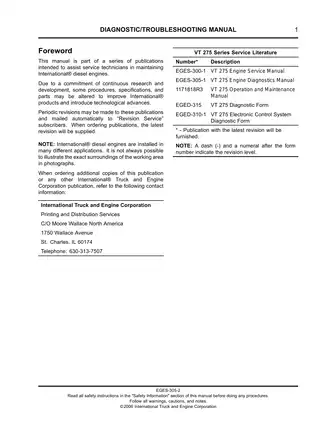

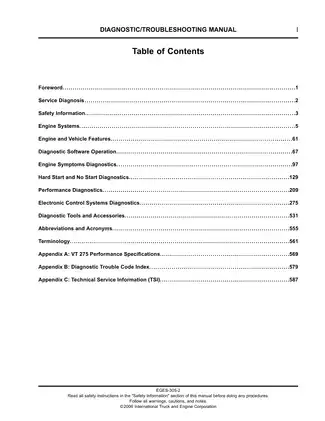

• Combines two International Truck and Engine Corporation factory publications supplied as PDFs for the International VT 275 4.5L V6 diesel: Service Manual Form EGES-300-1 for 2005 model year and above engines (432 pages) and Diagnostic/Troubleshooting Manual EGES-305-2, 2006 edition (596 pages) — 1,028 PDF pages total.
• Documents teardown and repair coverage for the dual-stage turbocharger and exhaust tubing, EGR and manifolds, cylinder heads and valve train, lubrication system, power-cylinder and lower-engine assemblies, high-pressure oil and fuel systems, and rear cover.
• Builds hard-start/no-start and performance diagnosis around KOEO/KOER tests, injector tests, relative compression, fuel-supply and ICP checks, boost-control testing, crankcase pressure, and full-load road-test data.
• Separates CF and stripped-chassis procedures where hardware and circuits differ, including cruise-switch DTC access, APS/IVS pin-point tests, HFCM service, oil-pan details, rear main seal work, and the stripped-chassis crankshaft secondary flange.
• Traces ECM, IDM, and EGR drive-module operation through engine-control circuit diagrams, CAN/ATA communication checks, connector and harness tests, DTC logic, and system-specific pin-point diagnostics for sensors and actuators.
• Provides 1,203 numbered figures across both manuals, factory torque and specification tables, special-tool references, exploded views, flow schematics, circuit diagrams, diagnostic screens, test setups, and component-specific tightening sequences.

Diagnostic Coverage and Engine Systems

Both volumes map how the VT 275 air, fuel, lubrication, cooling, high-pressure oil, and electronic-control systems work together. Air management follows the high- and low-pressure turbochargers, Boost Control Solenoid, pneumatic actuator, charge-air cooling, and cooled EGR. Fuel and control coverage connects the Horizontal Fuel Conditioning Module, secondary fuel filter, generation 2 electro-hydraulic injectors, ECM, Injector Drive Module, and EGR drive module. Injector operation is divided into fill, main-injection, and end-of-injection stages, helping separate fuel-supply, injection-control-pressure, injector-drive, and mechanical-sealing faults.

The diagnostic volume explains EZ-Tech/MasterDiagnostics DTC access and clearing, including cruise-switch methods for CF and stripped-chassis applications. It covers continuous monitoring, output-state tests, air-management tests, injector-disable routines, and relative-compression testing. Symptom procedures address combustion leakage into coolant or fuel; coolant, fuel, and lube-oil cross-contamination; coolant over-temperature; intermittent ECM/IDM reset stumble; excessive fuel consumption; water in fuel; low oil pressure; rough idle; and black, white, or blue smoke.

Hard-start/no-start diagnosis follows the EGED-315 sequence through key-on checks, cranking data, KOEO tests, ECM and IDM relay power, fuel quality and restriction, and low-ICP system function. Later checks cover under-valve-cover leakage, cylinder-head isolation, high-pressure oil pump testing, glow-plug operation, and inlet-air-heater testing. Performance diagnosis adds KOER testing, injector disable, relative compression, boost-control checks, torque-converter stall testing, crankcase pressure, and monitored full-load road testing.

Mechanical Repair Procedures

The service manual carries the work beyond fault isolation, with removal, disassembly, cleaning, inspection, testing, installation, and final tightening for major internal and external assemblies. Turbocharger and EGR repair includes separating and reassembling the dual-turbo unit, manifold warp checks, EGR cooler testing, and component-specific torque sequences. Cylinder-head and lower-engine chapters cover injector- and glow-plug-sleeve replacement, valve and spring inspection, rocker-carrier service, piston and connecting-rod fit checks, camshaft bushings, and crankshaft timing. Separate sections handle oil-cooler leak testing, high-pressure oil pump and branch-tube service, HFCM disassembly, rear main seal and wear-sleeve repair, flywheel runout, and in-chassis rocker-arm replacement.

The repair sections also flag VT 275-specific failure traps. Removing a single cylinder-head bolt to reach a rocker arm compromises the head-gasket seal. Pulling the front or rear cover without releasing the sealed upper/lower-crankcase joint can displace the lower-crankcase gasket and turn the repair into complete engine removal and disassembly.

Electronic Diagnostics, Diagrams, and Tools

The electronic chapters use the EGED-310-1 circuit-diagnostic structure: operating description, DTC logic, circuit diagram, and verification tests. Sensor theory covers thermistors, hot-wire airflow sensing, variable-capacitance and micro-strain-gauge pressure sensors, magnetic pickups, potentiometers, switches, and Hall-effect EGR position feedback. Connector voltage and ground checks, harness-resistance tests, breakout-box readings, and operational signal tests support circuit-level fault isolation.

Representative illustrations include the Engine Systems Interaction Diagram, Dual Stage Turbocharger Flow, and Fuel Supply System Schematic and Flow. Repair-side examples include Cylinder Head Component Locations and Exploded Views and the High-Pressure Oil System Exploded View and Flow Schematic. The electronic section adds separate APS/IVS circuit diagrams for CF and stripped-chassis configurations.

Tool coverage identifies the 96-pin Breakout Box ZTSE4582A, Breakout Harness Kit ZTSE4505D, ICP Adapter/Plug Kit ZTSE4690, and Crankshaft Timing Tool ZTSE4687. High-pressure oil testing, fuel-system work, electrical diagnosis, heavy component handling, and rotating-engine work require the pressure-release, electrical-isolation, lifting, and PPE precautions specified in the manuals.

This is an engine-focused set; full vehicle-side connector, fuse, and chassis wiring locations remain in the applicable International truck Electrical Circuit Diagram manual.
