Navistar MaxxForce 11 & 13 Diesel Engine Service Manual, 2010– (P/N EGES-465-1)

Navistar’s engine service manual, P/N EGES-465-1, covers 2010– MaxxForce 11 and 13 diesel engines. It provides the procedure sequence for out-of-chassis overhaul; the sequence for in-chassis component service may differ.

Searchable Text, Diagram Detail, and PDF Contents

Search and illustrations: Body text is searchable, but some labels within sensor-circuit illustrations and the cooling-flow schematic are not. No embedded PDF bookmarks are provided. Small sensor-circuit labels are readable when enlarged.

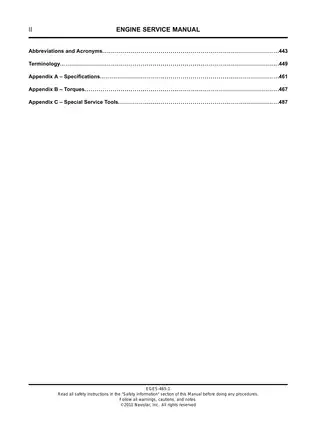

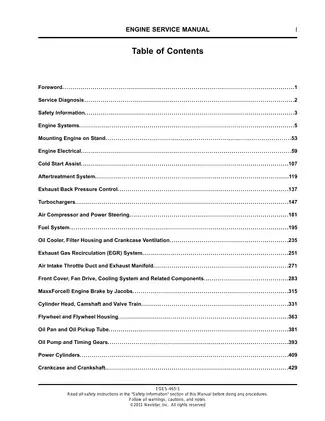

One printable, English-language PDF contains 506 pages, including the front and rear covers, two unnumbered blank pages, and two contents pages. The numbered manual runs from page 1 through page 500, including 32 internal blank pages and the appendices.

Engine Overhaul and System Service

These selected service topics outline the repair coverage rather than reproduce the complete contents. Further chapters cover air-compressor and power-steering-pump removal and installation.

• Engine overhaul: Power-cylinder disassembly, piston and connecting-rod inspection, cylinder-sleeve removal and installation, and crankcase and crankshaft service.

• Valve train and engine brake: Cylinder-head and camshaft service, valve and engine-brake lash adjustment, and MaxxForce Engine Brake by Jacobs disassembly and reassembly.

• Fuel system: Step-by-step replacement procedures for common-rail injectors, the high-pressure fuel pump, fuel rail, lines, and filter housing.

• Turbochargers and EGR: Turbocharger removal and inspection, low-pressure charge-air-cooler pressure testing, and EGR cooler and valve service.

• Cooling and lubrication: Water-pump, thermostat, coolant-control-valve, oil-module, and crankcase-oil-separator service, plus oil-cooler leak testing.

• Engine electrical: Sensor and actuator descriptions, ECM and harness removal and installation, connector identification, and harness inspection.

This manual is suited to qualified diesel technicians with engine-system knowledge, diagnostic equipment, and the lifting equipment and special tools required for overhaul work.

Engine Systems and Diagnostic Scope

Controls and component identification: The ECM, sensor, and actuator descriptions explain engine monitoring and control. Component-location and ECM harness-connector views support identification, while sensor-circuit illustrations explain operating principles.

Separate diagnostic volume: Detailed engine fault diagnosis and the hydrocarbon-injector flow-test setup and procedure are referred to the separate Engine Diagnostic Manual EGES-470, which is not included.

Fuel Delivery, Air Management, and Cooling

Fuel and cold-start hardware: The manual describes downstream fuel injection (DSI) operation and metering-unit and hydrocarbon-injector replacement. Cold-start coverage includes relay, fuel-supply-hose, and glow-plug service, with a partial cutaway view of the Cold Start Fuel Ignitor.

Fuel-filter element service and fuel-system priming procedures are referred to the separate operation and maintenance manual, also not included.

Flow paths and leak tests: Fuel supply and cooling-system flow diagrams connect the component descriptions to system routing. Functional explanations cover turbocharger boost control, EGR flow, the water pump, dual thermostats, and coolant control valves.

The EGR cooler chapter distinguishes in-vehicle and bench pressure tests. Together with the oil-cooler and charge-air-cooler test procedures, these sections support leak checks before replacement decisions.

Engine-Out Repair Procedures and Workshop References

Factory inspection criteria, clearances, and tool references support planning engine-out repairs in an equipped shop. Piston-protrusion, sleeve-bore, and sleeve-protrusion measurements accompany the power-cylinder procedures, with separate piston specifications for each engine.

Timing and flywheel work: Step-by-step instructions cover timing-gear alignment. Flywheel and flywheel-housing service distinguishes manual-transmission flywheels from automatic-transmission flywheel/flexplate assemblies and includes runout checks and resurfacing limits.

Exploded views and cylinder-head bolt-tightening sequence charts support assembly identification and reassembly. The cylinder-head section also includes valve-seat leak testing and specifies head replacement if the seats leak.

Repair cautions: The manual warns that reversed or mismatched connecting-rod caps damage their fractured mating surfaces, requiring connecting-rod assembly replacement. It also specifies new exhaust-manifold Torx bolts and sleeve spacers rather than reuse.

Appendix A collects component specifications, Appendix B provides torque references, and Appendix C lists special service tools, including Cylinder Sleeve Puller ZTSE2536 and Engine Stand Adapter Plate ZTSE4789.

Valve-Clearance and Thermostat Specification Preview

With the engine cold and the cylinder head assembled to the crankcase, the valve-lash procedure specifies 0.5 mm intake clearance and 0.8 mm exhaust clearance.

The engine specifications table lists the primary thermostat’s operating-temperature range as 83°C–95°C (181°F–203°F).

Follow the manual’s safety precautions for pressurized fuel, hot components, and lifting heavy engine assemblies.
