1999–2002 Mitsubishi Pajero Sport Electrical Wiring Manual Set (P/N PHJE9810, PHJE9810-A, PHJE9810-B, PHJE9810-C)

This Mitsubishi Pajero Sport Electrical Wiring Manual set covers K96WG, K94W, and K94WG configurations for 1999–2002. It combines the PHJE9810 basic manual with Electrical Wiring Supplements PHJE9810-A, PHJE9810-B, and PHJE9810-C.

The set totals 768 pages across 13 PDF files, supplied in a ZIP archive. The basic manual and first supplement each occupy one PDF; the later supplements are split by section.

• Harness routing: Connector-location diagrams for gasoline and diesel engine compartments, transmission, dash panel, steering column, junction block, relay box, floor, roof, doors, and tailgate.

• Engine and transmission circuits: M/T and A/T starting systems, ignition, charging, diesel glow control, MPI engine management, INVECS-II 4A/T, and part-time 4WD.

• Electrical fault tracing: Power distribution, joint connectors, fuse assignments, ground locations, connector views, and operation descriptions with troubleshooting hints for selected circuits.

• Body and safety systems: Exterior and interior lighting, fog lamps, headlamp leveling, keyless-entry and central-door-locking variants, power windows, ABS, SRS, and auto-cruise.

• Heating and accessories: Heater, manual and automatic A/C, rear heater, wipers and washers, sunroof, heated seats, radio, motor antenna, and accessory sockets.

• Supplement changes: Revised ECU connections, oxygen-sensor applications, Step II and Step III diesel wiring, variable-geometry turbocharger controls, and circuit comparison tables.

This set suits mechanics familiar with reading wiring diagrams and tracing circuits through connector and ground references.

Vehicle and Powertrain Configurations

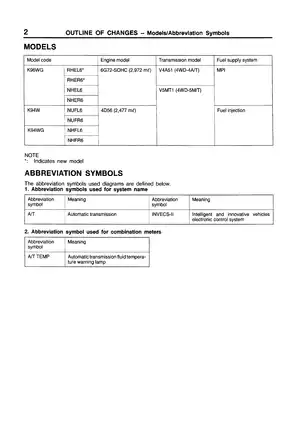

K96WG variants RHEL6 and RHER6 combine the 6G72 SOHC MPI gasoline engine with the V4A51 4WD 4A/T; NHEL6 and NHER6 use the V5MT1 4WD 5M/T. The K94W NUFL6/NUFR6 and K94WG NHFL6/NHFR6 configurations have the 4D56 fuel-injected diesel and V5MT1 4WD 5M/T.

The 2002 model table distinguishes Step II diesels—K94W NUPFL6/NUPFR6 and K94WG NHPFL6/NHPFR6—from Step III versions carrying NUFL6/NUFR6 and NHFL6/NHFR6. Separate left-hand- and right-hand-drive layouts and equipment qualifiers apply; optional circuits do not apply to every vehicle.

What Changed Across the Supplements

2000 supplement: Issued August 1999, it marks RHEL6 and RHER6 as new variants. Changes cover INVECS-II automatic-transmission controls and their associated ECU and harness connections. Body-electrical additions include keyless entry, the glove-box lamp, motor antenna with antenna-length sensor, and an additional accessory socket.

Component charts identify A/T fluid-temperature and shaft-speed sensors, the hazard-warning and A/T control relays, the A/T control solenoid-valve assembly, and the sunroof-circuit diode.

Harness change tables record added and discontinued connectors, revised colors and terminal counts, and relocated washer motors, fog-lamp and defogger relays, and engine-oil-level relays. These references help match the diagram to the fitted hardware before electrical diagnosis or repair.

2001 supplement: Front and rear oxygen sensors for both banks, revised gasoline engine-ECU connectors, and changes to the 4WD-indicator-ECU power supply are documented.

2002 supplement: Separate Step II and Step III engine-control diagrams cover the diesel changes. Step III wiring identifies the accelerator pedal position sensor, injection-pump controls, boost pressure sensor, and VGT solenoid valve. Automatic A/C diagrams add the A/C-ECU, damper motors, blower control, and temperature sensors.

Circuit References for Fault Tracing

The drawings follow current flow from the fuse or fusible link down to ground. Matching connector IDs link the schematics with the harness-location pages. The diagram-reading sections explain framed connector numbers, device symbols, harness junctions, continuation blocks, shielding, and control-unit input/output arrows.

Centralized-junction information identifies relay-box positions in both compartments and shows junction-block connections, fuse ratings, housing colors, and assigned circuits. The basic manual also indexes components by connector number and part name.

Operation descriptions and troubleshooting hints address starting, charging, headlamps, headlamp leveling, gauges, windshield wipers, and remote-controlled mirrors. The wiper section includes a terminal-voltage check table. Fuel-line heater, intercooler-fan, immobilizer, and warning-lamp circuits are also included.

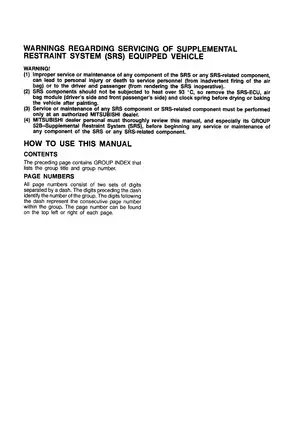

The SRS-ECU connector arrangement changes between editions. Mitsubishi’s SRS warning links improper servicing to accidental airbag deployment or loss of restraint protection and restricts SRS-related repair to an authorized Mitsubishi dealer.

Electrical Coverage and Related Manuals

The supplement comparison tables distinguish new, revised, deleted, previously included, and inapplicable circuits. Entries referring to an earlier publication lead back to the basic manual or preceding supplements included in this set.

Coverage centers on wiring and selected fault-tracing checks. Detailed component inspection and ECU-system diagnosis refer to related publications. Mechanical overhaul procedures and the separate chassis, engine, and body repair manuals are outside this download.

File Format and Readability

• Basic manual: 278 pages in one PDF, including 3 preliminary pages and a 24-page connector-number/parts-name index.

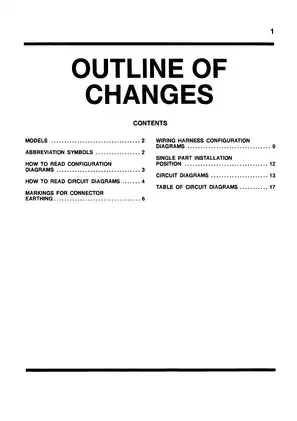

• 2000 supplement: 235 pages in one PDF: 3 preliminary pages, 20 pages of changes, 39 pages of harness diagrams, 5 pages of component locations, and a 168-page circuit-diagram group.
• 2001 supplement: 121 pages across five PDFs: 8 pages of changes, 21 pages of harness diagrams, 2 pages of component locations, 87 circuit-diagram pages, and a separate 3-page COVER file.
• 2002 supplement: 134 pages across six PDFs: 9 pages of changes, 2 pages on reading the diagrams, 21 pages of harness diagrams, 5 pages of component locations, 94 circuit-diagram pages, and a separate 3-page COVER file.

All preliminary and notes pages are already included in these totals. The circuit groups and other sections contain 43 notes pages: 17 in the basic manual, 16 in the first supplement, 7 in the second, and 3 in the third.

Text search: The PDFs have no searchable text layer.

Navigation: The manual pages are in English, with Russian-language PDF bookmarks; only the separate 2001 COVER file has no bookmarks.

Readability: Small connector numbers, pin labels, and wire codes require zooming.
