Yamaha F225, F250 & F300 Outboard Service Manual — 2010–2011 (P/N LIT-18616-03-23)

This first-edition Yamaha service manual (May 2010; P/N LIT-18616-03-23 / 6CE-28197-1N-11) covers 2010–2011 F225CA, LF225CA, F250CA, LF250CA, F300CA, and LF300CA outboards, including regular- and counter-rotation models.

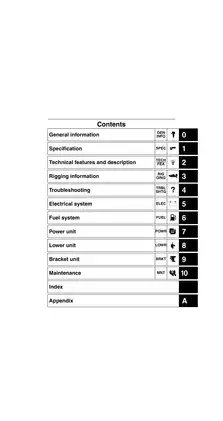

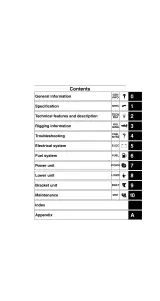

PDF Search, Bookmarks and Wiring Detail

Text search and diagram navigation: Searchable text and embedded bookmarks cover the service chapters, index, and wiring appendix. Small pin numbers and wire-color codes on the larger wiring sheets require zooming for comfortable reading.

The download is one printable, English-language 576-page PDF, including the front and back covers, four memo pages, and three blank or page-number-only pages.

Power Unit, Gearcase and Electronic Control Service

The following selection of covered work highlights the main repair and diagnostic areas. Other documented tasks include cowling-fit adjustment and propeller-damper replacement.

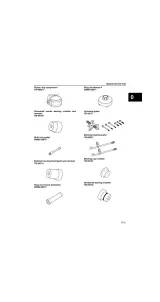

• Engine repair: Step-by-step power-unit removal, cylinder-head service, valve-guide replacement, valve-seat refacing, cylinder-block disassembly, and crankshaft bearing selection.

• Timing and VCT: Timing belt replacement, camshaft installation, shimless valve-lifter selection, and Oil Control Valve (OCV) inspection.

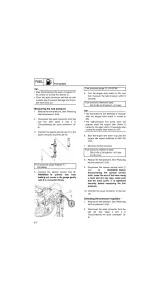

• Fuel system: Fuel-pressure testing, regulator checks, low- and high-pressure pump diagnosis, injector testing, and vapor-separator disassembly and reassembly.

• Electrical diagnosis: YDIS trouble-code charts, Electronic Throttle Valve (ETV) and shift-actuator tests, Y-COP checks, and ignition, charging, and starting-circuit diagnosis.

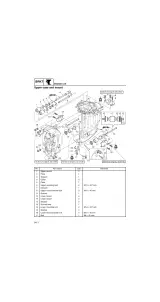

• Lower unit: Separate regular- and counter-rotation procedures for water-pump repair, gear and bearing service, backlash measurement, and shim selection.

• Bracket and PTT: Steering-arm and mount service, Power Trim and Tilt pressure testing and bleeding, plus motor, gear-pump, and cylinder repair.

Written primarily for Yamaha dealers and trained mechanics, this manual assumes YTA Marine Bronze-level knowledge or an equivalent understanding of mechanical and electrical service.

YDIS Fault Tracing and Digital Rigging

Trouble-code tables connect faults with symptoms, checking sequences, and component tests. Together with sensor resistance specifications and wiring-continuity checks, they support fault isolation before replacement decisions. Symptom-based charts also cover no-crank, crank/no-start, poor acceleration, and problems without a stored trouble code.

The diagnostic sections explain model-specific use of YDIS engine monitoring, stationary tests, and ECM record-data graphs. Tests use YDIS software, the specified USB adapter and cable (60V-WS850-00), and appropriate electrical test equipment. Detailed software operation refers to the separate YDIS instruction manual.

Command Link Plus: Rigging coverage includes single-, twin-, and triple-engine digital network system diagrams, optional Y-COP receiver-ID registration, and Digital Electronic Control system reset after ECM replacement. Control-box and switch-panel installation, plus certain remote-control fault checks, refer to the separate Command Link Plus service manual.

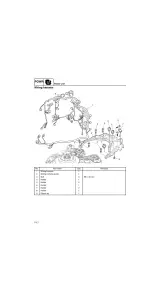

Color wiring sheets separate engine-control, fuel, ignition, charging/starting, and PTT circuits. ECM coupler layouts identify terminals and wire colors. Fuel, lubrication, cooling, and intake/exhaust diagrams explain the related system routing.

Observe the manual’s ventilation, ignition-system electric-shock, and pressurized-fuel precautions during diagnostic work.

Internal Engine Inspection and Valve Service

Engine inspection extends to piston and cylinder-bore measurements, piston-ring checks, crankpin and journal oil clearances, and color-coded bearing-selection tables. Oil-pump disassembly, oil-cooler inspection, and thermostat testing are also documented.

Shimless valve clearance is adjusted by selecting valve-lifter thickness rather than fitting separate shims. The valve-clearance section warns that counterclockwise flywheel rotation can damage the water-pump impeller.

Rotation-Specific Shimming and PTT Repair

The lower-unit sections distinguish the forward- and reverse-gear shim assignments for each rotation type. Regular-rotation propeller-shaft adjustment uses motive-torque checks; the counter-rotation procedure measures shaft free play. These distinctions help identify the correct adjustment method before selecting shims.

The bearing-service sections warn that uneven heating can damage the propeller-shaft housing or burn the lower-case paint.

PTT repair extends to relief-valve inspection and adjustment, internal hydraulic passages, and tilt- and trim-ram disassembly. Maintenance procedures cover engine and gear oil changes, OCV-filter replacement, cooling-water passage checks, and lubrication points.

Preview: Idle Speed, Valve Clearance and Compression

Idle and valve checks: Engine idle speed is specified at 650–750 r/min. For a cold engine, intake valve clearance is 0.205 ± 0.035 mm; the manual also provides the lifter-selection calculation used for adjustment.

Compression testing: The minimum compression reference is 700.0 kPa (101.5 psi), with an ambient temperature of 20 °C (68 °F) and all spark plugs removed. The associated test procedure calls for engine warm-up before measurement.
