KTM 50 SX, 50 SX Junior & 50 SX Mini – 2009 Repair Manual (P/N 3206060en)
159 Pages • 1 Printable PDF (English) • Download
KTM Models Covered & Key Technical Specifications
Models: 50 SX, 50 SX Junior, 50 SX Mini
Model Year: 2009
-
Fork overhang: 10–17 mm (0.39–0.67 in)
-
Fork oil volume: 210 ml (7.1 fl. oz.)
-
Fork oil grade: SAE 7.5
-
Air chamber length: 100 ± 2.5 mm (3.94 ± 0.098 in)
-
Static sag (50 SX): 20 mm (0.79 in)
-
Static sag (50 SX Junior/Mini): 15 mm (0.59 in)
-
Riding sag (50 SX): 45–55 mm (1.77–2.17 in)
-
Riding sag (50 SX Junior/Mini): 40–50 mm (1.57–1.97 in)
-
Rebound damping (50 SX): 10 clicks
-
Rebound damping (50 SX Junior/Mini): 12 clicks
-
Chain tension: 5–8 mm (0.2–0.31 in)
-
Gearbox (all models): Rigid single-stage reduction gear
-
Gear oil capacity: 0.20 liters (0.21 qt)
-
Gear oil type: ATF Dexron 3
-
Tire pressure (off-road): 1.0 bar (15 psi)
-
Shock absorber gas pressure: 10 bar (145 psi)
-
Shock absorber fluid: SAE 2.5
KTM Manual Features & Selected Content Preview
KTM’s July 2009 repair manual, Article no. 3206060en, covers the 50 SX, 50 SX Junior, and 50 SX Mini. It covers engine and chassis repairs for all three models and identifies the procedures that differ by carburetor, lubrication system, and suspension.
Searchable Text, Bookmarks, and Wiring Diagram
Finding a procedure: The service text is searchable. Embedded bookmarks lead to individual procedures, specification tables, and the index. The HOME bookmark points to a separate menu file. In the ignition wiring diagram, the small wire-color labels are readable when enlarged.
The download is one printable English 159-page PDF. That total includes the front and back covers, an unnumbered blank page, and numbered pages 1–156. Printed page 139 is blank apart from its page number.
Engine Rebuilds, Clutch Setup, and Chassis Service

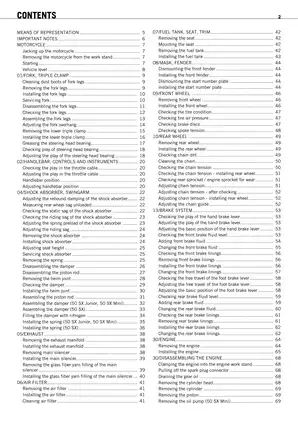

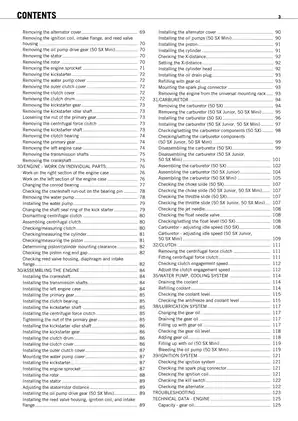

The topics below are a selection from the manual. Other procedures cover handlebar position and throttle cable free play.
- Engine repair: Engine removal and installation, crankcase disassembly, connecting-rod bearing replacement, and reassembly of the crankshaft, transmission shafts, and kickstarter.
- Carburetors and lubrication: Dell’Orto disassembly, jetting data, choke checks, and idle adjustment by model, plus oil-pump service for the Mini.
- Centrifugal clutch: Clutch-shoe inspection, engagement-speed testing, and washer selection to correct the measured engagement speed.
- Suspension and steering: Marzocchi fork seal replacement, fork filling and air-chamber adjustment, WP shock rebuilding and nitrogen charging, and steering head bearing service.
- Cooling and brakes: Water-pump overhaul, coolant filling and bleeding, front and rear brake fluid changes, pad wear checks, and lever adjustment.
- Ignition and fault diagnosis: Selettra ignition tests, stator-to-rotor clearance adjustment, and troubleshooting charts for starting, idling, power loss, and overheating.
KTM wrote this manual for fully trained mechanics familiar with general workshop methods. Engine measurement, ignition testing, and shock service call for the tools identified in the relevant procedures.
Piston Sizing and Clutch Assembly
The cylinder inspection covers bore measurements in two directions to check for oval wear. Cylinder classes A and B, piston sizes 1 and 2, and ring end-gap checks help determine which parts can be reused during a top-end repair.
The X-distance check uses adjustment gauge 45129006000 to measure piston position at top dead center. KTM explains how cylinder base-gasket thickness affects this clearance. Excessive clearance reduces compression and power. Insufficient clearance can cause knocking and overheating.
The clutch assembly drawings distinguish the required spacing washer from the optional engagement-adjustment washer. The adjustment washers must be fitted consistently across all three shoes.
Dell’Orto Carburetors and Mini Oil Injection
The 50 SX uses the PHBG 19BS, the Junior uses the PHVA 14DS, and the Mini uses the PHVA 12XS. Each has its own jetting table. The float-level adjustment procedure applies specifically to the 50 SX.
The SX and Junior use premix. The Mini has a separate oil pump, with procedures for the pump and its drive gear. The Mini’s carburetor installation instructions also identify when the oil pump needs bleeding after the oil line is reconnected.
Fork, Shock, and Chassis Service
The WP 3614 BAEM shock chapter separates SX damper and spring assembly from the Junior/Mini procedures. It also identifies the thin and thick collar bushings at the shock joint. Reversing their positions can make the shock rub against the swingarm. The setup tables pair spring selection by rider weight with static and riding sag checks.
Chassis procedures cover wheel removal, spoke tension, chain adjustment, and scheduled maintenance. Torque tables identify the triple-clamp, wheel spindle, and engine fasteners. Follow KTM’s precautions for brake service and work on the pressurized shock.
Ignition Tests and Symptom Charts
For a no-spark fault, the Selettra 2p D36 section covers the kill switch, spark plug connector, ignition coil, and alternator. It gives resistance checks and specifies peak-voltage adapter 58429042000 for the output test. The wiring diagram and its component key show how the kill switch, alternator, and coil are connected.
The fault charts also distinguish two gearbox symptoms. Oil escaping from the vent hose leads to an oil-level check. Water in the gear oil leads to the pump and its shaft seal. The water-pump repair section covers the impeller, shaft, bearing, and seal.
Selected Piston Clearances and Clutch Test Values
For all three models, KTM gives a new piston-to-cylinder clearance of 0.042–0.065 mm and a wear limit of 0.10 mm. The inspection procedure explains how to obtain the clearance from the measured bore and piston diameters.
The clutch test measures engine speed when the shoes first begin to engage. KTM specifies 7,200–7,500 rpm for all three models and identifies tachometer 45129075000 for the check.
