Yamaha Kodiak 400 4WD (2005–2006) Service & Owner’s Manual Set (P/N LIT-11616-16-02)
689 Pages • ZIP Download: 2 Printable PDFs • 23.58 MB
Yamaha Models Covered & Key Technical Specifications
Models: Kodiak 400, Grizzly 400 (separate supplement)
Models & Model Codes:
Kodiak 400 — YFM4FAV (owner’s manual and specifications below), YFM400FAR (5TE1, 5TE5), YFM400FAT (USA: 1P11, 1P14 / Canada: 1P12 / Oceania: 1P13)
Grizzly 400 — YFM4FGX (USA: 1P1D, 1P1G / Canada: 1P1E / Oceania: 1P1F)
Model Years: 2005–2006
Transmission: V-belt automatic (YFM4FAV, YFM400FAR)
-
Tire pressure (recommended): 25 kPa (0.25 kgf/cm2, 3.6 psi)
-
Tire pressure (minimum): 22 kPa (0.22 kgf/cm2, 3.2 psi)
-
Coolant reservoir capacity: 0.25 L (0.22 Imp qt, 0.26 US qt)
-
Fuel tank capacity (total): 15.0 L (3.30 Imp gal, 3.96 US gal)
-
Fuel tank capacity (reserve): 4.5 L (0.99 Imp gal, 1.19 US gal)
-
Throttle lever free play: 3.0–5.0 mm (0.12–0.20 in)
Yamaha Manual Features & Selected Content Preview
| Publication | Pages |
|---|---|

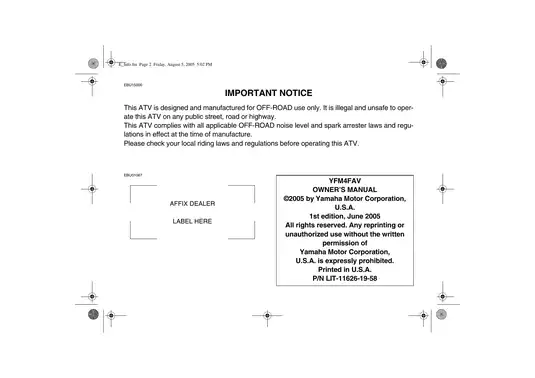

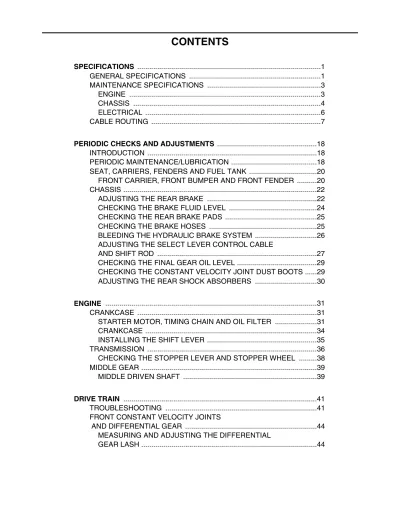

| Kodiak 400 4WD (YFM4FAV) Owner’s Manual, P/N LIT-11626-19-58, first edition, June 2005 | 193 |
| Kodiak 400 4WD (YFM400FAR) Service Manual, P/N LIT-11616-16-02, first edition, April 2002 | 364 |
| Kodiak 400 4WD (YFM400FAT) Supplementary Service Manual, P/N LIT-11616-18-36, first edition, June 2004 | 103 |
| 2008 Grizzly 400 (YFM4FGX) Supplementary Service Manual, P/N LIT-11616-21-45, first edition, July 2007 | 29 |
Yamaha pairs the YFM400FAT supplement with the YFM400FAR base service manual. The YFM4FGX supplement builds on both and supplies changes specific to the 2008 Grizzly 400.
For the YFM4FAV, the included model-specific publication is the owner’s manual. Use the model codes and rear brake and suspension configurations to identify the applicable workshop sections.
Text Search, Bookmarks, and Wiring Diagrams
Finding text and diagrams: Both PDFs have searchable body text and bookmarks for their main sections. The two-page rider safety card is image-based. Zoom in on the service wiring diagrams to read small connector markings and wire-color codes.
The ZIP contains two printable PDFs totaling 689 pages: a 193-page owner’s PDF and a 496-page service PDF containing the other three publications. The total includes the original covers, two blank pages in the service PDF, and six supplementary pages in the owner’s PDF, including the two-page rider safety card.
ATV Operation, Driveline Repair, and Electrical Diagnosis
These selected topics are part of the set. The owner’s manual also covers cleaning, long-term storage, and maintenance records.
-
Controls and riding: On-Command 2WD/4WD, drive-select and reverse operation, cold and warm starts, break-in, parking, cargo and towing limits, and off-road riding techniques.
-
Scheduled maintenance: Emissions and lubrication charts guide engine and gear oil changes, cooling-system care, axle boot checks, air filter cleaning, V-belt duct checks, and spark arrestor service.
-
Engine and transmission: Engine removal and installation, cylinder-head and valve service, cylinder and piston inspection, recoil starter and AC magneto work, clutch and sheave service, and transmission disassembly.
-
Driveline repair: Front CV joint and differential service, rear final-drive and driveshaft inspection, pinion positioning, shim selection, and gear lash measurement and adjustment.
-
Brakes, steering, and suspension: Hydraulic brake bleeding, master-cylinder and caliper repair, steering checks, and model-specific rear brake and suspension procedures.
-
Cooling and carburetion: Radiator removal, thermostat testing, water-pump service, carburetor disassembly, and fuel-level adjustment.
-
Electrical diagnosis: Wiring diagrams and circuit tests for ignition, electric starting, charging, lighting, signals, cooling-fan operation, and the 2WD/4WD selector system.
Yamaha wrote the owner’s manual for riders doing preventive maintenance and minor repairs, and the service publications for dealers and qualified mechanics. Yamaha cautions that repairs performed without the required mechanical knowledge can leave the ATV unsafe.
Owner Controls and Pre-Ride Checks
Warning-label location diagrams and pre-ride checks help owners find the controls and inspection points on the YFM4FAV. The riding section covers slopes, shallow water, rough ground, skidding, and what to do if the ATV stalls or starts rolling backward on a hill.
The control illustrations identify the dash indicators, fuel gauge, speed limiter, fuel cock, choke, recoil starter, and auxiliary DC jack. The maintenance section explains panel access, throttle and brake adjustments, cable and pivot lubrication, and basic battery, fuse, and lighting checks. Yamaha assigns valve-clearance adjustment to a service technician.
Rear Drum and Disc Brake Configurations
The YFM400FAR base manual covers the rear drum brake and swingarm. The YFM400FAT supplement covers the hydraulic rear disc brake and double-wishbone rear suspension, including the rear knuckles, stabilizer, and rear CV joints. This distinction helps match the procedure to the hardware before disassembly or parts selection.
The driveline chapters warn that insufficient gear lash can damage the gear teeth. The final-drive procedure flags the pinion bearing retainer’s left-hand threads, which can be damaged if the retainer is treated as a conventional right-hand fastener.
Workshop References and Circuit Testing
Exploded views and job charts accompany step-by-step procedures for jobs such as crankcase separation and crankshaft and oil-pump inspection. Coolant-flow diagrams, oil-flow diagrams, cable-routing layouts, and tables for torque, fluid capacities, clearances, and wear limits support inspection and reassembly.
Tool references include the crankcase separator YU-01135-A / 90890-01135 and clutch holder YM-91042 / 90890-04086. The driveline sections identify the gear lash measuring tool YM-01475 / 90890-01475 and final-drive bearing retainer wrench YM-04050 / 90890-04050.
The base manual’s starting and 2WD/4WD circuit diagrams help trace individual circuits alongside the full wiring diagram. The Grizzly supplement adds steering and maintenance changes and documents the headlight relay with a lighting circuit diagram and continuity checks.
Auxiliary Outlet and Drive Belt Spec Preview
The YFM4FAV owner’s manual rates the auxiliary DC jack at up to 120 W (10 A) at 12 V DC and specifies use with the engine running.
For the YFM400FAR, the V-belt inspection section gives a standard belt width of 30.7 mm (1.21 in.) and a wear limit of 27.6 mm (1.09 in.).
