Suzuki Carry 1985–1991 Workshop Repair Manual

Suzuki Carry workshop repair manual covering the carbureted engine, manual driveline, and chassis systems, including specific SK410 van fuel-system procedures.

PDF Sections and Wiring Diagram Access

Search, viewing, and navigation: Text search is available only in carry section 0.pdf; none of the PDFs has embedded bookmarks. Some ignition and body-dimension pages require rotation in the viewer. Small wire-color codes in the separate wiring diagram require zooming, and some text near binding margins is faint.

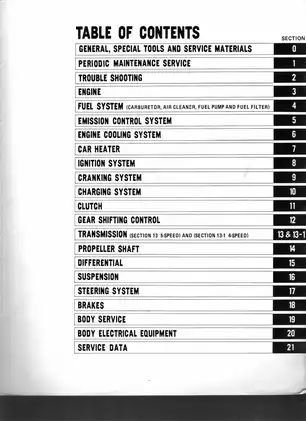

The RAR download contains 26 printable PDF section files totaling 404 pages, including one general contents page. A separate van-type wiring-diagram JPG has English, French, and Spanish labels; the PDF sections are in English.

Engine Overhaul, Driveline Setup, and Chassis Service

These selected coverage highlights summarize the main repair areas. Other topics include metric fastener identification and heater-blower resistor and switch checks.

• Engine repair: Engine-and-transmission removal, cylinder-head and valve work, camshaft and timing-belt service, pistons, rings, connecting rods, crankshaft bearings, flywheel, oil pump, strainer, and filter.

• Fuel and emissions: Carburetor removal and overhaul, air-cleaner service, float, choke-opener and BVSV checks, fuel-pump/filter/tank work, PCV testing, and charcoal-canister checks.

• Cooling system: Radiator removal and inspection, water-pump replacement, thermostat testing, hose service, cooling-system pressure checks, and flushing.

• Driveline repair: Clutch and shift-control cable service, separate four- and five-speed gearbox repair, propeller-shaft joint work, and differential adjustment.

• Chassis and body: Front and rear suspension, hubs and wheel bearings, steering-gear overhaul and alignment, doors, window regulators, latches, and chassis/body dimensions.

• Brake service: Front disc and rear drum brakes, master cylinder, optional vacuum-booster overhaul, DSP-valve circuit information, parking-brake adjustment, and hydraulic bleeding.

• Electrical diagnosis: Breaker-point ignition and timing, distributor service, starter disassembly and performance tests, alternator and battery checks, and system-specific troubleshooting charts.

Because the procedures assume access to pullers, installers, gauges, a press, and accurate measuring equipment, this manual is suited to experienced mechanics and well-equipped owners rather than first-time repair work.

Carbureted Powertrain and Variant Coverage

The powertrain material is built around a 970 cc, water-cooled four-cylinder, four-stroke gasoline engine with a crossflow SOHC cylinder head, timing-belt camshaft drive, and wet-sump pressure lubrication. Repair coverage does not extend to electronic fuel injection, automatic transmissions, or a four-wheel-drive transfer system.

The fuel chapters follow a one-barrel, horizontal-draft Mikuni carburetor. Separate emissions layouts distinguish the square control-valve and round check-valve charcoal canisters; choke-opener and bowl-vent equipment vary by market.

Step-by-step procedures cover engine disassembly and reassembly, including internal inspection and timing-belt installation. Water-pump service is replacement as an assembly: the pump is not designed to be disassembled.

Gearbox, Differential, and Brake Details

The gearbox sections include synchronizer inspection and reassembly checks. Differential procedures link pinion-bearing preload, bevel-gear backlash, tooth-contact checks, and shim selection, allowing a rebuilt unit to be assessed against the manual's setup specifications.

Chassis coverage distinguishes right- and left-hand steering layouts and suspension with or without a stabilizer bar. Body-dimension drawings distinguish standard- and high-floor vans, with separate standard- and high-roof measurements.

Brake-routing drawings show the van circuit and low-floor parking-brake cable details; vacuum-booster and deceleration-sensing proportioning (DSP) valve fitment depend on specification.

Brake-routing limitation: The brake-pipe instructions reference printed page 18-44, which is absent from this download. The van circuit drawings on printed pages 18-42 and 18-43 are included.

Workshop Reference and Special Tools

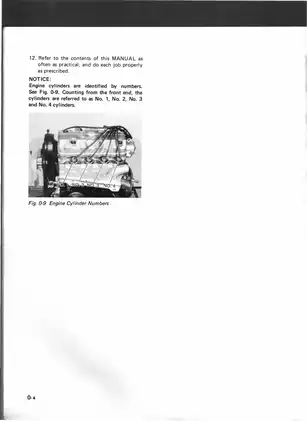

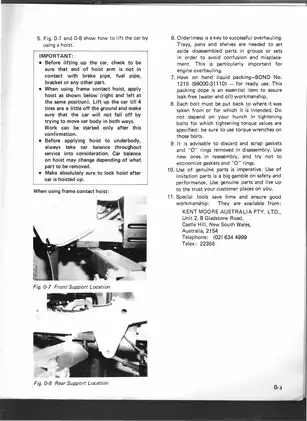

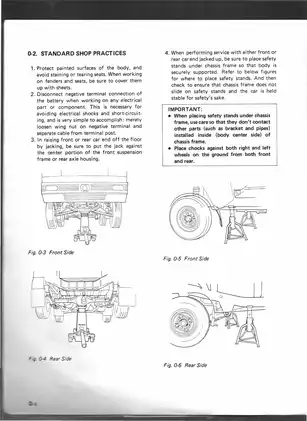

The maintenance schedule, required service materials, standard shop practices, and closing Service Data section provide torque tables, fluid capacities, wear limits, adjustment data, and electrical test specifications.

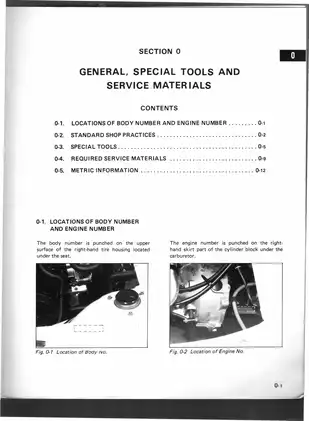

Identification illustrations locate the body number beneath the seat on the upper surface of the right-hand tire housing and the engine number on the cylinder block's right-hand skirt below the carburetor.

The illustrated tool catalog identifies carburetor adjuster 09913-17910, compression gauge 09915-64510, oil-pressure gauge 09915-77310, and vacuum-pump gauge 09917-47910.

It also lists differential preload checking tool 09922-75221 and booster diaphragm remover 09951-85510, along with the pullers, installers, reamers, and holding fixtures used in the repair chapters.

System Diagrams and Electrical Testing

Illustrations include the engine lubrication circuit, carburetor and fuel-vapor flow layouts, cooling-water circulation, and heater-blower and ignition circuits.

Body-electrical material covers headlights, turn and hazard circuits, wipers, fuel and temperature gauges, rear defogger, and fuse-box layouts. Wiper-motor tests distinguish single- and two-speed circuits and check automatic parking; switch-continuity tables and wire-color codes support circuit tracing.

Repair Cautions

The carburetor overhaul section warns that drills or wire can damage calibrated fuel passages and metering jets, while careless handling can damage the plastic float assembly. The propeller shaft must not be welded, dropped, or intentionally heated because related parts can be damaged or the shaft can become eccentric and cause vibration.

Fuel-system safety notes address battery isolation, fuel-tank vapor pressure, and control of flames and sparks; the fuel-pump test specifies kerosene rather than gasoline. Brake precautions address asbestos-containing lining dust and the need for the specified glycol-based fluid to avoid hydraulic-system damage.

Selected Valve-Clearance and Oil-Pressure Data

For both intake and exhaust valves, the service-data tables specify valve lash of 0.13–0.18 mm when cold and 0.23–0.28 mm when hot. These are adjustment ranges, distinct from the component wear limits elsewhere in the tables.

The oil-pump discharge-pressure check specifies 3.0–4.5 kg/cm² at 3,000 rpm after the engine reaches normal operating temperature.
