Mahindra Models Covered & Key Technical Specifications

Model: Mahindra Scorpio Getaway

Model Year: 2007

Sub-models / Variants: CRDe 2WD (NGT 530 5-speed manual, V4 specification), CRDe 4WD (NGT 530 5-speed manual, V1 specification; Divgi-Warner 4555 electric-shift transfer case)

Serial Numbers: Rear axle 4.3:1 specification from 32 K 90710 (all models except Rev 116); rear anti-roll bar introduced from 32A98547

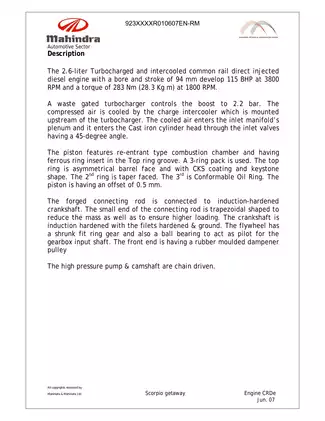

  • Engine: 2.6-liter Turbocharged common rail direct injected diesel (CRUZ 2600 DI)

  • Maximum Power: 115 BHP at 3800 RPM

  • Maximum Torque: 283 Nm at 1800 RPM

  • Compression Pressure: 30 bar

  • Bore and Stroke: 94 mm

  • Firing Order: 1-3-4-2

  • Boost Pressure: 2.2 bar

Mahindra Manual Features & Selected Content Preview

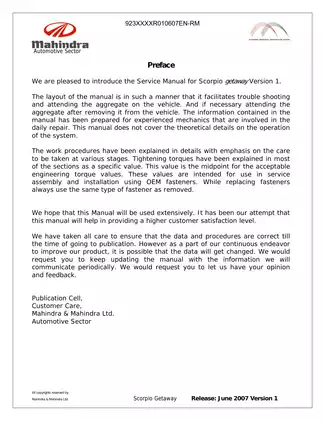

This Mahindra & Mahindra factory repair manual covers the 2007 Scorpio Getaway CRDe in 2WD and 4WD configurations. This is Version 1, released in June 2007, with cover reference 923XXXR010607EN-RM.

PDF Search, Wiring Diagrams and Page Count

Text search and diagram detail: The written chapters contain searchable text. Labels in the closing wiring section are embedded in images, and the PDF has no bookmarks. Small pin numbers and wire codes on the main engine-management and transfer-case diagrams are easier to read when zoomed in. Several other sheets have missing or unreadable detail, especially PDF pp. 591 and 610–611.

The download contains one printable English PDF with 612 pages, including the cover and preface, 586 workshop and reference pages, one page with only running headers and footers, and 23 pages in the closing wiring section.


Engine, Drivetrain and Chassis Repair

The topics below are a selection from the repair manual. Other procedures include fuel-tank strainer cleaning and propeller shaft imbalance checks.

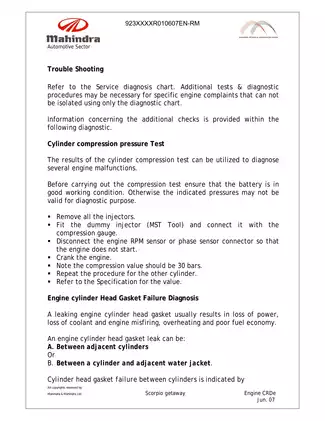

  • Engine repair: Engine removal and overhaul, cylinder-head gasket replacement, compression and head-gasket leak diagnosis, and inspection of internal components.

  • Fuel and emissions: High-pressure pump and injector removal, Bosch common rail system descriptions, EGR checks, and closed crankcase ventilation.

  • Transmission and transfer case: NGT 530 disassembly, synchronizer inspection and shimming, Divgi-Warner 4555 overhaul, electric-shift fault diagnosis, and automatic locking hub service.

  • Clutch and axles: Hydraulic clutch cylinder overhaul and bleeding, axle bearing setup, pinion-height adjustment, and Dana Spicer limited-slip differential clutch-pack service.

  • Steering, suspension and brakes: Rack-and-pinion overhaul, front and rear suspension repairs, wheel alignment, twin-piston caliper service, brake bleeding, and load-sensing proportioning valve adjustment.

  • Cooling and HVAC: Water-pump replacement, viscous fan-drive checks, refrigerant recovery and charging, leak testing, evaporator cleaning, and climate-box linkage adjustment.

  • Electrical references: CRDe engine-management and electric-shift wiring diagrams, connector pin views, and transfer-case fault-code charts.

The manual was written for experienced mechanics carrying out routine repairs, in-vehicle service, and component overhaul.

Engine and Fuel System Documentation

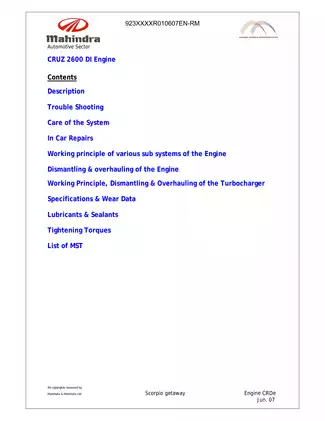

The engine chapter separates in-vehicle work from internal overhaul. It covers inspection of pistons, wet liners, crankshaft journals, bearing shells, and valve components, with references to Mahindra MST special tools.

The pump removal procedure explains how releasing the sprocket support before refitting the pump can bend the sprocket and lead to timing-chain failure. The Bosch CRS 2.2 section identifies the CP1H pump and EDC 16C controller. EGR block diagrams and vacuum routing show the connections, and the EGR check calls for Insight diagnostic equipment.

The high-pressure pump is a non-serviceable unit. Detailed common rail fault diagnosis is referred to a separate diagnostic manual. Turbocharger coverage includes removal, inspection, and installation, with internal overhaul assigned to an authorized Turbo Energy service center. High-pressure fuel work requires appropriate training and the manufacturer's safety precautions.

Transmission, Transfer Case and Axle Work

Separate gearbox chapters identify the 2WD and 4WD specifications. Gear-shimming sketches show synchronizer positioning, and the clutch section covers hydraulic release faults and flywheel runout.

The transfer-case fault-code charts help narrow down control, shift-motor, clutch, and speed-sensor faults before dismantling. The automatic locking hub section explains how to trace a ratcheting noise to the affected hub.

Rear axle procedures cover bearing preload, backlash, and tooth-contact checks, with MST 581 and MST 582 setting gauges. The axle chapter warns that heating the hardened axle-bearing retaining collar can cause it to loosen in service.

Steering, Suspension and Brake Service

Front suspension coverage includes the 2WD coil-spring and 4WD torsion-bar arrangements. The rear suspension section covers leaf springs, and the alignment tables support caster, camber, toe, and steering-wheel centering work.

Brake coverage includes rear drums, master-cylinder service, and vacuum-booster diagnostic flowcharts. The load-sensing proportioning valve section shows how to set the control spring with MST 568. The valve, vacuum booster, and power-steering pump are non-serviceable units.

Cooling and HVAC Diagnosis

Cooling procedures cover radiator removal and accessory-belt diagnosis. The water pump is replaced as an assembly. HVAC coverage also includes compressor replacement, actuator linkage illustrations, and charts that relate ambient temperature to refrigerant suction and discharge pressures.

A Sample of Engine Clearances, Torques and Oil Data

For engine inspection, the tables list an intake valve-to-guide clearance of 0.03–0.07 mm and a standard first piston ring-to-groove clearance of 0.11–0.15 mm.

For reassembly, lightly oiled cylinder-head bolts are specified at 90 Nm followed by two 60° stages. The main bearing cap bolt specification is 168 ± 17 Nm. The lubrication table lists 6 liters of API CH-4 SAE 15W-40 engine oil.
