Honda CRF50F Service & Repair Manual (2004–2013)

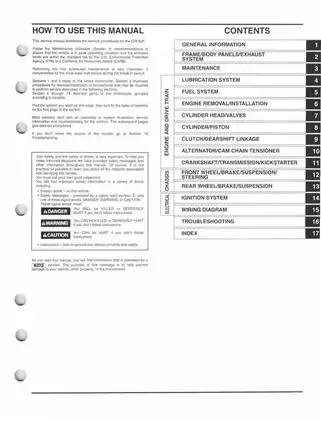

This Honda CRF50F service manual covers the 2004–2013 model range, with engine, chassis, and ignition repair procedures organized by system. Its 17 numbered sections include wiring diagrams, troubleshooting, and an index.

PDF Search, Chapter Bookmarks, and Page Details

Search and diagram access: OCR text search is available throughout the main manual, although recognition errors can affect results. The cover and safety-information page have no searchable text. Embedded bookmarks link to the contents and numbered sections. Small wiring labels are readable when enlarged.

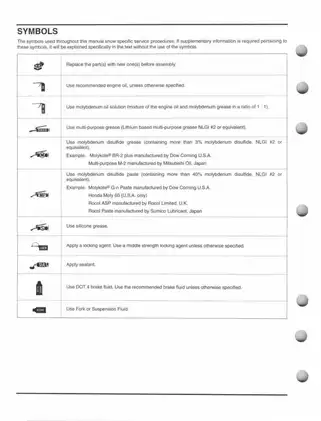

Supplied as one printable, 209-page PDF in English: 205 pages of numbered sections and index, plus a cover, a safety-information page, and two introductory pages. All four front pages are included in the total.

Engine, Drivetrain, and Chassis Service

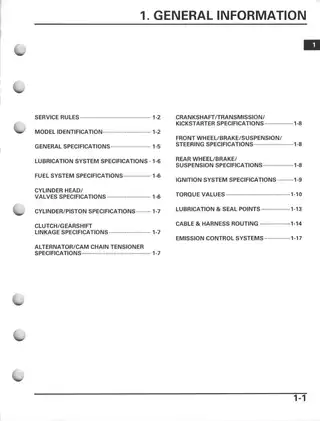

The following topics are selected examples of coverage, rather than a complete contents list. Other documented work includes spark-arrester cleaning and exhaust-system removal and installation.

• Maintenance: Service schedules, lubrication points, oil-strainer and centrifugal-filter cleaning, valve-clearance adjustment, and drive-chain checks.

• Engine repair: Step-by-step instructions for engine removal, cylinder-head disassembly, camshaft service, and cylinder/piston removal, inspection, and installation.

• Clutch and transmission: Centrifugal-clutch disassembly and inspection, gearshift-linkage service, transmission teardown, and kickstarter inspection and assembly.

• Fuel system: Carburetor removal, disassembly, cleaning, reassembly, float checks, and air-screw adjustment, with fuel-system troubleshooting.

• Chassis service: Wheel-bearing replacement, drum-brake inspection, fork rebuilding, steering-stem bearing replacement, and rear suspension and swingarm service.

• Ignition diagnosis: Peak-voltage tests, ICM and switch checks, wiring diagrams, and troubleshooting charts for starting, power, and running faults.

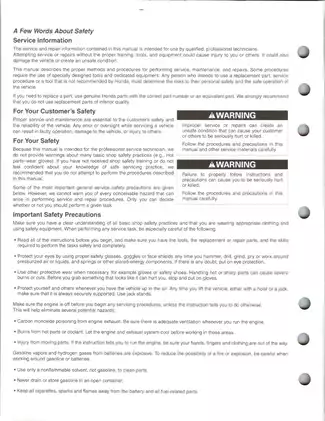

Written for qualified professional technicians, the manual assumes the training, tools, and equipment needed for the documented service and repair work.

Internal Engine Inspection and Assembly

Factory wear limits support decisions about reusing or replacing internal parts. Transmission inspection covers gear bores, shaft diameters, and shift-fork wear, while exploded transmission and shift-drum views clarify component relationships. General and component-specific torque tables accompany the inspection data.

Cylinder-head procedures extend to valve-guide replacement and valve-seat refacing. Cam-chain tensioner checks cover push-rod wear and spring condition; the alternator section documents flywheel and stator removal and installation.

Crankshaft, transmission, and kickstarter service require engine removal and crankcase separation. The lubrication system diagram shows oil delivery to the engine’s working components.

Carburetor Versions and Adjustment Limits

Fuel specifications distinguish PA42A carburetors for 2004–2005 U.S. and 2004–2007 Canadian models, PA42B for 2006–2007 U.S. models, and PA42C for models after 2007. The assembly instructions also distinguish adjustable-needle versions from later fixed-needle versions.

Carburetor service includes the idle-drop air-screw adjustment procedure and float inspection using gauge 07401-0010000. The float itself is nonadjustable. The manual cautions that forcing the air screw against its seat can damage the seat.

Fork, Steering, and Rear Suspension Work

Fork assembly drawings identify the grease-lubricated sliders, springs, and guides. Steering-stem service includes bearing and race replacement, with installation-tool references.

Rear-shock coverage consists of removal, inspection, and replacement of the complete assembly. Swingarm procedures include pivot-bushing inspection.

Always ensure the motorcycle is securely supported on a proper safety stand before removing the wheels or separating the crankcase halves.

Ignition Fault Isolation and Wiring References

Peak-voltage checks compare readings at the ignition control module with readings at the pulse-generator or exciter-coil connector to distinguish wiring faults from component faults. The ignition system diagram and switch-continuity tables complement the wiring diagram. Ignition timing is electronically controlled and nonadjustable.

The manual warns that disconnecting the ICM while current is flowing can damage the module.

Cable & Harness Routing drawings identify wire and hose paths, while the crankcase-emission diagram shows the breather circuit.

Selected Valve, Chain, and Float Inspection Values

Cold valve clearance is specified at 0.05 ± 0.02 mm for both intake and exhaust, with inspection below 35°C (95°F). The drive-chain section specifies 15–25 mm of slack with the engine off, the transmission in neutral, and the motorcycle on its side stand.

Carburetor float-level inspection specifies 12.7 mm (0.50 in), measured with the float valve seated and the float arm just touching it.
