Harley-Davidson Softail 2000–2005 Clymer Repair Manual

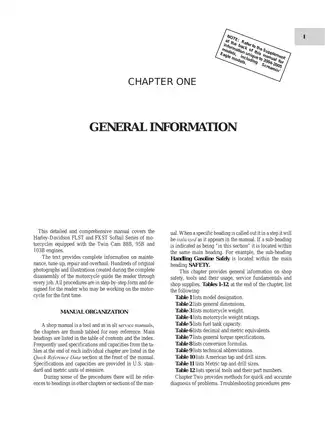

This aftermarket Clymer service and repair manual covers the 2000–2005 Harley-Davidson FLST and FXST Softail family with Twin Cam 88B, 95B and 103B engines. The integrated 2004–2005 supplement supplies model-specific changes for use alongside the base chapters.

PDF Search, Bookmarks and Wiring Detail

Text search and navigation: The main chapters, index and wiring diagrams have searchable text. The three Quick Reference Data pages do not support text search. Embedded bookmarks open the chapters, supplement, index, wiring section and Quick Reference Data. Small wiring labels require zooming.

The ZIP contains one printable English PDF with 632 pages, including the 71-page supplement and three Quick Reference Data pages. Two cover pages, one wiring-section divider and one chapter-overview page are also already included in that total.

Twin Cam Overhaul, Drivetrain and Chassis Service

The following selected repair topics show the manual’s scope rather than its complete contents. Other covered subjects include exhaust-system service and California evaporative-emission controls.

• Engine repair: Step-by-step removal, top-end and crankcase overhaul, rocker arms, pushrods, valves and guides, pistons, cylinders, oil pump and lines, camshafts, chain tensioners, crankshaft service and counterbalancer alignment.

• Clutch and drivetrain: Clutch and primary-chaincase service, compensating-sprocket alignment, starter-jackshaft work, external and internal shift mechanisms, shaft and gear inspection, main-drive-gear service and transmission-case removal.

• Fuel systems: Separate carbureted and EFI procedures for the carburetor, induction module, in-tank pump and filter, fuel-pressure regulator, fuel sender and control cables.

• Electrical systems: Charging and ignition tests, starter and solenoid testing and repair, connector service, switches, lighting, and turn-signal/security modules (TSM/TSSM).

• Chassis and brakes: Wheels, hubs, tires, final-drive belt, telescopic and Springer forks, steering head, swingarm, shock replacement, caliper and master-cylinder overhaul, hose replacement and hydraulic bleeding.

• Supplement coverage: Softail Deluxe, Fat Boy 15th Anniversary Edition, Softail Springer Classic, FXSTDSE2 Screamin’ Eagle Deuce and FLSTFSE Screamin’ Eagle Fat Boy service differences.

The step-by-step format is written for readers who may be working on the motorcycle for the first time; crankcase, transmission, press and advanced electrical work still require accurate measuring equipment, the listed service tools and sound shop experience.

Maintenance and Engine Variations

Routine service covers the maintenance schedule, lubrication points, engine, primary-chaincase and transmission oil, fork oil, control cables and pivots. Drive-belt adjustment, wheel alignment, brake inspection, air-filter service, spark plugs, compression testing, idle adjustment and storage are also covered.

The base engine chapter centers on the balanced Twin Cam 88B. The supplement adds separate service-limit tables for 88B, 95B and 103B engines, revised 2005 valve and cylinder-head information, and Screamin’ Eagle crankshaft and balancer differences. On FXSTDSE2 and FLSTFSE models, the piston-pin bushing cannot be replaced separately; the manual calls for crankshaft-assembly replacement or rebuilding if it is worn or damaged.

Hydraulic-clutch variants: FXSTDSE2 and FLSTFSE coverage includes master- and release-cylinder service, hose replacement, flushing and bleeding, plus clutch and transmission differences. The “I” suffix identifies fuel-injected versions from 2001 onward; the Screamin’ Eagle models use EFI without that suffix.

Fault Diagnosis and Electrical References

Symptom-based troubleshooting addresses no-start and poor-running complaints, lubrication, clutch and transmission symptoms, suspension, brakes, lighting and excessive vibration. Starter voltage-drop and current-draw tests help distinguish circuit and connection faults from starter or solenoid faults before replacement parts are selected. Charging-output, parasitic-draw and ignition checks are also included.

Engine-management limits: Diagnostic-code retrieval procedures and code tables are included. The manual refers further diagnosis and code clearing to dealership test equipment; complete EFI service requires a Harley-Davidson Scanalyzer and other specialty tools.

Visual references include the Camshafts and Cover exploded view, separate 2000–2002 and 2003 crankcase assembly views, transmission side-door and shaft layouts, the EFI Induction Module view, and starter-solenoid voltage-drop/current-draw diagrams. Color wiring sheets distinguish 2000, 2001–2003 and 2004–2005 domestic/HDI carbureted and EFI configurations, with dedicated taillight circuits. Teardown photographs support the repair text.

Service Tables, Tools and Repair Cautions

Chapter-end tables supply component torques, fluid capacities, wear limits and clearances, camshaft and counterbalancer spacer selection, clutch and sprocket specifications, transmission inspection limits, carburetor jet data and electrical test values in U.S. and metric units.

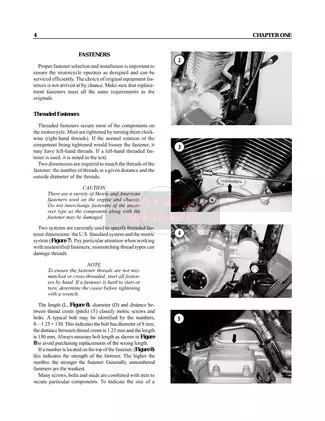

The special-tool listing identifies H-D, JIMS and Motion Pro tools by number, including the HD-44064/JIMS 1166 balancer alignment tool, JIMS 1283 cam-chain tensioner tool, JIMS 35316-80 main-drive-gear tool set and HD-47255 Springer steering-head bearing tool.

Reversing a previously marked primary cam chain causes premature wear, while incorrect rear-cam and crankshaft-sprocket alignment can make the chain bind. The 2005 clutch inspection-cover gasket has a directional fit and triangular screw opening that can be damaged during installation; incompatible fluid or petroleum solvent can damage hydraulic-clutch seals.

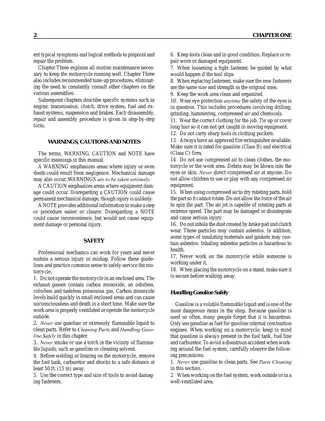

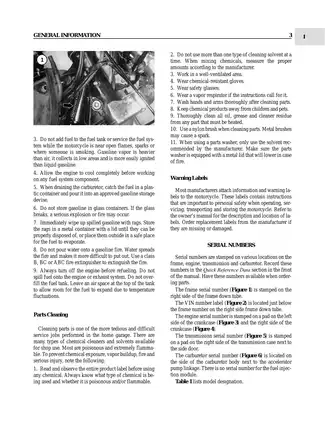

Follow the manual’s precautions for pressurized EFI fuel, high-current starter testing, DOT 5 brake and clutch systems, loaded Springer springs and engine lifting. Use suitable supports and the specified isolation procedures; work beyond your equipment or experience belongs with a qualified motorcycle technician.

Examples from the Alternator Test Specifications

For alternator AC-output checks, the electrical tables distinguish carbureted models at 16–20 volts per 1,000 rpm from EFI models at 19–26 VAC per 1,000 rpm.

Stator coil resistance is listed at 0.1–0.3 ohm. The electrical-testing guidance calls for resistance checks at room temperature, since temperature affects the readings.
