Yamaha YZF-R6 2008 Service Manual (P/N LIT-11616-21-61)

434 Pages • 1 Printable PDF (English) • Download

4.5starstarstarstarstar_half(4)
$16.20 Instant Download / No Shipping Fees
or

Credit/debit card, Apple Pay or Google Pay

30-day refunds for defective files or manuals not as described. Refund policy.

print
Save & print
Keep a copy on your device
lock
Secure Payment
Stripe

Yamaha Models Covered & Key Technical Specifications

Models: YZF-R6, YZF-R6X(C)

Sub-models / Variants: USA (13S4, 13S7), California (13S5, 13S8)

Model Year: 2008


  • Engine type: Liquid-cooled 4-stroke, DOHC

  • Displacement: 599 cm³

  • Compression ratio: 13.1:1

  • Transmission type: Constant mesh 6-speed

  • Fuel tank capacity: 17.3 L (4.57 US gal)

  • Fuel pressure: 324 kPa (47.0 psi)

  • Engine idling speed: 1250–1350 r/min

  • Spark plug: NGK/CR10EK

  • Battery: YTZ10S (12 V, 8.6 Ah)

Yamaha Manual Features & Selected Content Preview

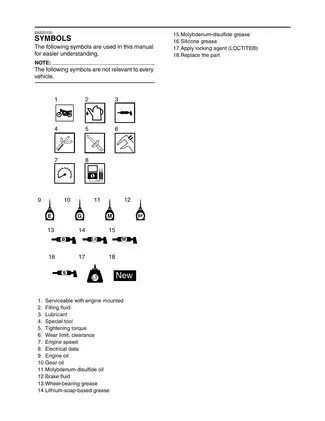

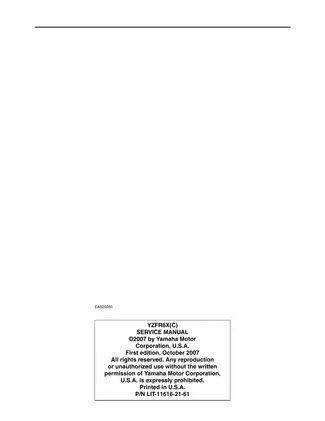

This Yamaha service manual covers the 2008 YZF-R6, identified as YZFR6X(C), including 13S4/13S7 U.S. and 13S5/13S8 California models. It is P/N LIT-11616-21-61, first edition, October 2007.

Searchable Text, Bookmarks and Wiring Detail

Search and diagram navigation: Chapter text is searchable, with embedded bookmarks for chapters and subsections. Some diagram lettering is not searchable. Small wiring and connector labels require zooming.

One printable English PDF contains 434 pages total, including covers, introductory material, blank pages, and two large-format wiring-diagram pages at the end. These pages are already included in the total.


Engine and Chassis Repair with Electronic Diagnosis

These selected workshop topics provide a preview rather than a complete table of contents. Other sections cover instrument functions and headlight-beam adjustment.

  • Engine and drivetrain: Engine removal, cylinder-head and valve service, crankcase disassembly, piston and crankshaft inspection, clutch repair, and transmission teardown and reassembly.

  • Maintenance and setup: Valve-clearance adjustment, throttle-body synchronization, compression and oil-pressure testing, EXUP cable adjustment, drive-chain adjustment, steering-head checks, and emission-control maintenance.

  • Brakes and chassis: Wheel and bearing service, caliper and master-cylinder rebuilding, hydraulic brake bleeding, front-fork disassembly, rear suspension, swingarm, and chain-drive work.

  • Cooling system: Radiator removal and pressure checks, thermostat testing, oil-cooler service, and water-pump disassembly, inspection, and reassembly.

  • Fuel and intake: Primary and secondary injectors, fuel-pressure testing, throttle-position sensor adjustment, YCC-T throttle control, YCC-I intake-funnel operation, and California evaporative-emission components.

  • Electrical diagnosis: Troubleshooting for ignition, starting, charging, lighting, signaling, cooling-fan, fuel-injection, and fuel-pump circuits, with ECU fault tables and component tests.

  • Technical drawings: YCC-T/YCC-I control outlines, engine-oil lubrication diagrams, cooling-system diagrams, cable-routing views, the fuel-injection circuit diagram, and YZFR6X(C) wiring diagrams.

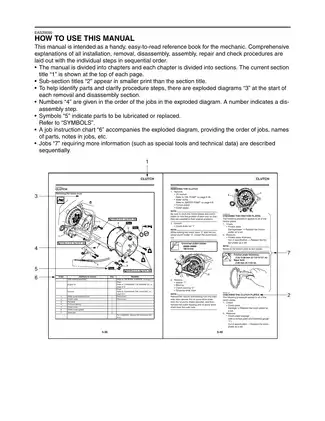

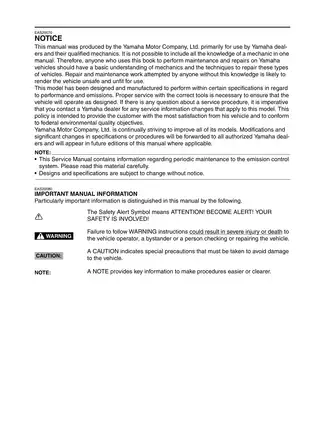

Yamaha produced this manual primarily for its dealers and qualified mechanics. Experienced owners need an existing understanding of motorcycle repair practices and access to the specified tools and test equipment.

Internal Engine and Transmission Repair

Valve timing and cylinder head: Step-by-step procedures cover camshaft installation, timing-chain alignment, sprocket and guide inspection, tensioner service, and post-installation checks. Cylinder-head work extends to valve guides, seats, springs, and lifters.

Bottom end and drivetrain: Measurement procedures address cylinders, pistons, rings, and crankshaft journals, with connecting-rod bearing selection and identification. Separate sections handle the wet multi-disc clutch, shift shaft, shift drum and forks, transmission shafts and gears, and trochoid oil pump with its relief valve, oil pipes, and strainer.

Exploded views and job charts accompany inspection criteria, service limits, and sequential factory procedures.

Brake, Fork and Rear-Suspension Service

Wheel procedures include bearing replacement and static balancing. Brake sections provide disc-deflection checks and inspection criteria for calipers and master cylinders.

Fork repair extends to seals, damper rods, damping-rod bleeding, and installation. Steering-head bearing service and rear linkage procedures include checks of bearings, collars, and seals.

Rear shock scope: The manual covers assembly removal, inspection, and installation. Yamaha warns against opening the nitrogen-pressurized shock absorber; this is not an internal shock-rebuilding guide.

YCC-T, YCC-I and Fuel-System Service

The control-system material explains how the ECU coordinates the throttle-position sensors for the cable pulley and throttle valves, throttle servo motor, injectors, EXUP servo, and electronically controlled intake funnels.

California-specific material identifies the rollover valve and different fuel-tank breather routing. The throttle-body section covers inspection and passage cleaning, with an explicit instruction against disassembling the throttle bodies.

Fault Codes and Component Testing

The fuel-injection section links fault codes to likely causes, harness and connector checks, diagnostic codes, and reinstatement conditions. This gives technicians a structured way to distinguish wiring and connection faults from component faults before selecting a repair.

Diagnostic mode provides sensor readings and commanded tests of ignition coils, primary and secondary injectors, the intake funnel, air-induction solenoid, and EXUP servo. Relay tests address fuel-injection, radiator-fan, and headlight circuits; separate procedures check the fuel pump and radiator fan motors.

Workshop Tools and Repair Cautions

Reference tables cover tightening torques, lubrication points, fluid capacities, pressure checks, clearances, wear limits, and electrical test values.

The special-tool index lists Yamaha and U.S./Canada numbers, including carburetor synchronizer YU-44456, fork seal driver YM-01442, universal damping-rod bleeding set YM-A8703, valve spring compressor YM-04019, fuel-pressure adapter YM-03176, and multimeter with tachometer YU-A1927.

Uneven handling of camshaft-cap bolts can damage the cylinder head, caps, and camshafts. Interchanging connecting rods and big-end bearings can upset bearing clearance and cause engine damage.

Fuel-system repair can release residual line pressure, while brake and suspension work directly affect safe operation, so Yamaha's stated precautions, tools, and final checks matter throughout.

Selected Valve Clearances and Sensor Test Data

For valve checks on a cold engine at room temperature, the manual specifies intake clearances of 0.12–0.19 mm and exhaust clearances of 0.16–0.23 mm. The adjustment section also explains valve-pad selection.

Electrical test data include a crankshaft-position sensor resistance of 248–372 Ω at 20 °C (68 °F), paired with a component-testing procedure.
