Yamaha Viking 700 UTV 2014 Service Manual (P/N 1XD-F8197-E0)

This Yamaha service manual (P/N 1XD-F8197-E0) covers the 2014 Viking 700 lineup, including the standard and EPS-equipped variants listed above. It documents maintenance, mechanical repair, fuel-injection diagnosis, and electrical troubleshooting.

Searchable PDF and Wiring Diagram Detail

Text search and diagram navigation: Searchable service text and embedded chapter and section bookmarks support navigation through the manual. Small connector identifiers and wire-color codes in the EPS and non-EPS wiring diagrams are readable when enlarged.

The manual is supplied as one printable, English-language PDF with 500 pages. That total includes the original cover, preliminary material, 17 blank or header-only pages, and six wiring-diagram legend and schematic pages.

Engine, CVT, Chassis, and Electrical Service

These selected contents highlight the repair coverage rather than reproduce the full table of contents. Other documented topics include maintenance and lubrication schedules and spark-arrester cleaning.

• Engine repair: Step-by-step engine removal, valve-clearance adjustment, cylinder-head and valve service, piston inspection, crankcase separation, and crankshaft and oil-pump work.

• CVT and transmission: V-belt replacement, primary and secondary sheave disassembly, wet-clutch inspection, and transmission, shift-drum, and shift-fork service.

• Drive train: Front and rear constant-velocity shaft service, differential and final-drive inspection, and middle-gear, differential, and final-gear backlash adjustment.

• Fuel system: Fuel-pressure testing, injector inspection, throttle-body removal and installation, throttle-position sensor adjustment, and air-induction system checks.

• Cooling system: Radiator and oil-cooler service, thermostat testing, water-pump disassembly and assembly, and coolant replacement procedures.

• Brakes and chassis: Unified hydraulic brake bleeding, caliper and master-cylinder service, parking-brake adjustment, and steering, wheel-bearing, and suspension checks.

• Electrical diagnosis: Ignition, starting, and charging troubleshooting; fuel-injection and EPS fault-code tables; and circuit checks for the 2WD/4WD selecting system.

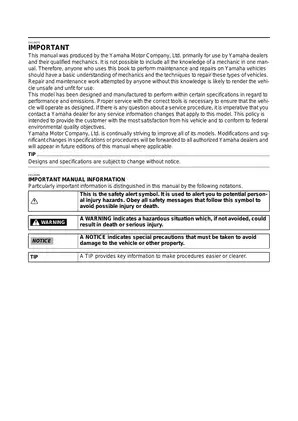

Written primarily for Yamaha dealers and qualified mechanics, this manual assumes a working knowledge of mechanics and the correct tools for the job.

Internal Engine and CVT Repair References

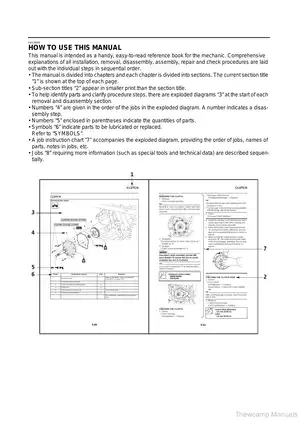

Exploded assembly views and accompanying job charts identify parts, replacement items, lubrication points, and removal order. Engine references include camshaft and decompressor checks, valve-seat inspection, cylinder and piston wear limits, and crankshaft measurements.

Component-specific torque tables distinguish the M9 and M6 cylinder-head fasteners, while the installation section provides the staged tightening sequence. The cylinder-head section also warns that crankshaft movement during camshaft installation can cause damage or incorrect valve timing.

Wet-clutch instructions identify the clutch-carrier assembly nut’s left-hand thread and specify universal clutch holder 90890-04086. Sheave service includes weight and slider inspection, secondary-sheave assembly, and V-belt installation checks.

Differential and Final-Drive Service Limits

Drive-train troubleshooting links operating symptoms and noises to inspection areas. Shim-selection guidance and backlash-measurement procedures support work on the middle gear, differential, and final drive.

The differential chapter covers case, bearing, gear, and motor checks, but explicitly prohibits dismantling the factory-assembled differential gear unit or differential motor. Its motor-operation check also includes a specific warning against using a 12 V battery.

Fuel-Injection and EPS Fault Tracing

Circuit troubleshooting combines wiring checks with fuse ratings and sensor test specifications to help distinguish connection or harness faults from component faults. For example, the crankshaft-position fault chart addresses coupler condition and harness continuity before component replacement.

Fuel-injection diagnosis uses Yamaha diagnostic tool 90890-03215 for sensor data, actuator checks, and stored fault information. Detailed operating instructions for that tool are provided in its separate operation manual. The EPS section distinguishes current from stored faults and includes torque-sensor, motor, and control-unit troubleshooting for EPS models.

Working on UTV electrical and fuel systems involves inherent risks and requires proper workshop safety precautions.

Routing Diagrams and Workshop Specifications

Separate ignition, charging, and 2WD/4WD selecting circuit diagrams complement the full EPS and non-EPS wiring sheets. The Engine Oil Lubrication Chart, Cooling System Diagrams, and chassis routing views show oil paths and the placement of hoses, leads, and control cables.

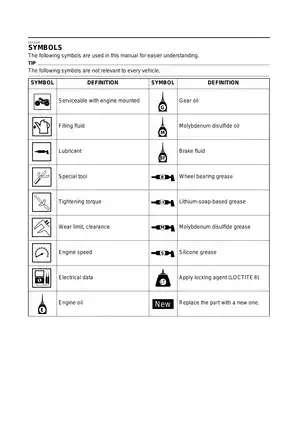

Reference sections provide chassis dimensions, fastener information, fluid specifications, wear limits, and factory lubrication and sealing points alongside the relevant service procedures.

A Preview of Sensor Resistance Specifications

Electrical component checks specify intake air temperature sensor resistance of 5.40–6.60 kΩ at 0 °C (32 °F). Crankshaft position sensor resistance is listed as 408.0–612.0 Ω. The corresponding inspection sections include test connections and component replacement criteria.
