Polaris Sportsman 400 & Sportsman 500 H.O. ATV Comprehensive Service & Repair Manual (2003)
Product Gallery

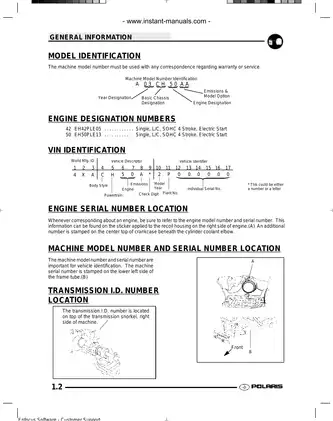

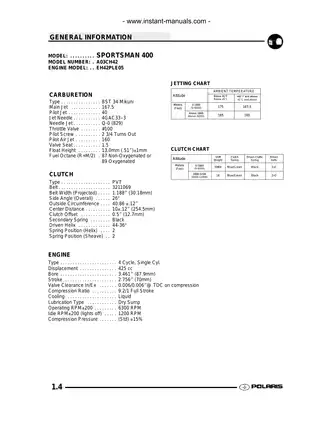

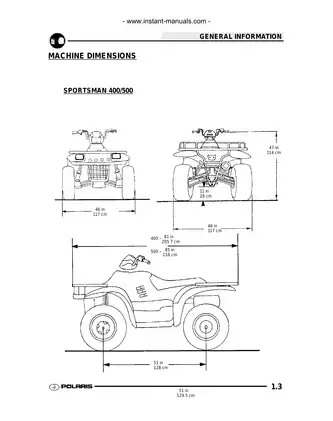

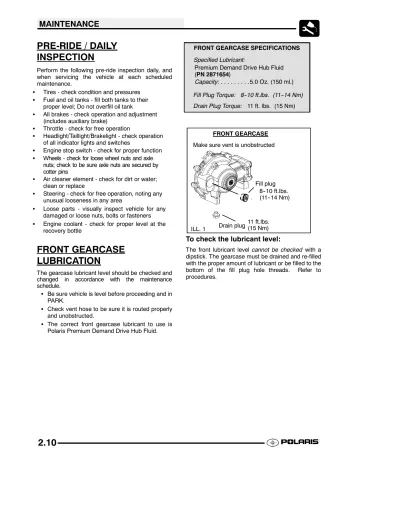

Sample pages from the Polaris Sportsman 400 & Sportsman 500 H.O. ATV Comprehensive Service & Repair Manual (2003) manual
Purchase Information
Technical Specifications
- Document Number / Seller:
- 31999 / Jennifer Mason
- File Size:
- 7.51 MB
- File Type:
- Language:
- English
- Pages:
- 269
- Printable:
- Yes
- Estimated Download Time:
- 0.15 Minutes
- Delivery Format:
- Digital (PDF) - Instant Access
- Category:
- ATV
- Brand:
- Polaris
- Reviewed and Approved:
- Dec 29, 2025
Polaris Models and Parts Covered in this ATV Manual
- Polaris Sportsman 400 (2003)
- Polaris Sportsman 500 H.O. (2003)
- Polaris Sportsman 400 A03CH42 (2003)
- Polaris Sportsman 500 A03CH50 (2003)
- Polaris Sportsman 400 Early Build (2003)
Complete Manual Information
Polaris Sportsman 400 & 500 H.O. ATV Service Manual (2003)
Upgrade your garage with the definitive professional-grade service manual for the 2003 Polaris Sportsman series. This comprehensive guide is specifically designed for the Sportsman 400 and the high-output Sportsman 500 H.O. models. Whether you are performing a simple oil change or a complete engine rebuild, this manual provides the exact factory specifications and step-by-step procedures required to keep your ATV trail-ready.
This manual is an essential resource for owners of the following 2003 models:
- Polaris Sportsman 400 A03CH42 (2003)
- Polaris Sportsman 500 H.O. A03CH50 (2003)
- Polaris Sportsman 400 Early Build (2003)
- Polaris Sportsman 400 Late Build (2003)
Complete Technical Mastery
Don't guess when it comes to your engine's health. This manual includes deep-dive technical data for both the EH42PLE05 (400cc) and EH50PLE13 (500cc) engines.
- Precise Engine Specs: Coverage includes everything from the 9.2:1 compression ratio of the 400 to the 10.2:1 full-stroke ratio of the 500 H.O.
- Carburetor Calibration: Specific jetting charts for the Mikuni BST 34 and BST 40 carburetors, ensuring your Sportsman runs perfectly at any altitude or temperature.
- PVT System: Detailed maintenance for the Polaris Variable Transmission, including belt replacement (Part No. 3211069) and clutch offset adjustments.
Advanced Maintenance & Troubleshooting
Go beyond the basics with specialized chapters that cover the entire vehicle architecture:
- Electrical Systems: Full wiring diagrams for both Early and Late Build 400 models, plus stator tests and ignition timing specs (30 degrees BTDC at 5000 RPM).
- Final Drive & AWD: Maintenance procedures for the Demand Drive hubs and front gearcase, including the exact fluid capacities (2.5 oz for hubs).
- Suspension & Chassis: Complete torque patterns for the Gen IV body style and MacPherson Strut front suspension.
Identification & Serial Numbers
Keep your records accurate. This manual provides clear instructions on locating every critical number on your machine:
- Machine Serial Number: Stamped on the lower left side of the frame tube.
- Engine Serial Number: Located on the sticker on the recoil housing (right side) and stamped on the center top of the crankcase.
- Transmission I.D.: Found on top of the transmission snorkel, right side.
Detailed Chapter Breakdown
- Chapter 1: General Information - VIN identification, paint codes, and standard torque specs.
- Chapter 2: Maintenance - Periodic maintenance charts and pre-ride inspection checklists.
- Chapter 3: Engine - Comprehensive top and bottom end disassembly for EH42 and EH50 engines.
- Chapter 4: Fuel System - Carburetor cleaning, fuel pump testing, and tank venting.
- Chapter 5: Body/Suspension - Strut assembly and independent rear suspension service.
- Chapter 6: PVT System - Drive and driven clutch operation and troubleshooting.
- Chapter 7: Final Drive - AWD magnetic coil service and U-joint assembly.
- Chapter 8: Transmission - Gear shift selector box repair and snorkel assembly.
- Chapter 9: Brakes - Hydraulic caliper bleeding and pad wear limits (3/64" minimum).
- Chapter 10: Electrical - Speedometer troubleshooting and battery activation.
This manual is optimized for quick reference and professional accuracy, ensuring that every repair on your 2003 Sportsman is done right the first time.
