2005–2006 KYMCO XCITING 500/250 Scooter Service & Repair Manual

This KYMCO service manual covers the 2005–2006 XCITING 500 and XCITING 250 maxi-scooters across 21 technical sections. It documents the carbureted versions, with maintenance, troubleshooting, and repair procedures for the engine, drivetrain, chassis, and electrical equipment.

• Engine repair: Engine removal and installation, cylinder-head disassembly, valve and piston inspection, camshaft installation, and crankcase separation.

• CVT and final reduction: Drive-belt replacement, drive and driven pulley disassembly, clutch inspection, and final-drive gear, shaft, and bearing service.

• Fuel system: CVK carburetor overhaul, float and diaphragm inspection, automatic-choke testing, fuel-pump diagnosis, and fuel-tank removal.

• Cooling and lubrication: Cooling-system pressure testing and air bleeding, thermostat checks, water-pump service, oil-pump inspection, and lubrication diagrams.

• Brakes and chassis: Combination-brake bleeding, pad replacement, steering-bearing service, wheel inspection, and fork and rear shock absorber removal and installation.

• Electrical diagnosis: Charging, ignition, and starter tests, supported by model-specific wiring diagrams, cable-routing views, and troubleshooting flowcharts.

The manual is suited to mechanics and experienced owners comfortable with component measurements and electrical testing; internal engine and clutch work requires the specified special tools and workshop equipment.

Engine Inspection and Drivetrain Repair

Cylinder-head coverage includes camshaft, rocker-arm, valve, and valve-guide inspection. Compression testing and cylinder-to-piston measurements support diagnosis of poor performance, while separate model-specific procedures explain valve timing and reassembly.

For the XCITING 500, crankshaft/crankcase selection uses journal codes and bearing colors. The crankcase section also documents balancer-shaft inspection and alignment.

The pulley chapter distinguishes belt, roller, clutch-lining, and pulley-bushing wear. It identifies clutch spring compressor E053 for the 500 and E034 for the 250. Final-reduction procedures cover shaft inspection, bearing replacement, and gearcase assembly.

Lubrication-system diagrams and application charts accompany oil-pump rotor checks and oil-pressure troubleshooting. The 500 also has dedicated oil-cooler service instructions, with fluid capacities and component-specific torque tables elsewhere in the manual.

CVK Carburetors and Fuel Delivery

Carburetor procedures cover the jets, float valve, vacuum piston, enrichment valve, and accelerator-pump diaphragm. The automatic choke is a non-disassemblable unit with a separate functional test.

Fuel-pump construction drawings distinguish the 500’s electrically operated pump from the 250’s vacuum-operated pump. The 500 section includes pump-resistance and delivery-volume tests; fuel-filter inspection and tank removal are also documented.

Cooling-System Tests and Water-Pump Service

Separate cooling-system flow patterns accompany radiator-cap testing, thermostat inspection, coolant replacement, and air bleeding. The 250’s water-pump section includes shaft-bearing and mechanical-seal replacement.

The 250’s impeller has a left-hand thread; the manual flags this detail because treating it as a conventional thread risks thread damage. It also warns that silicate-inhibited coolant can cause premature water-pump seal wear and obstruct radiator passages.

Linked Brakes, Steering, and Bodywork

The brake chapter separates the front circuit from the combination-brake circuit, including its delay valve and bleeding procedures. The 500 receives additional coverage for its parking-brake caliper, cable adjustment, and lever linkage.

Wheel-bearing replacement and steering-stem service accompany front and rear chassis inspections. Suspension coverage includes fork removal and installation and rear shock absorber inspection and replacement; internal damper rebuilding is outside this coverage.

Frame-cover, body-panel, and exhaust-muffler procedures identify fasteners, connectors, and access points needed for subsequent service work.

Charging, Ignition, and Starting Faults

Charging-circuit and starting-circuit drawings support component tests and connector checks. The weak-battery flowchart separates current leakage, alternator-coil, wiring, and regulator/rectifier checks, helping narrow a charging fault before parts are replaced.

Ignition coverage includes pulse-generator testing and separate ignition-control-module resistance tables for each model. Switch checks, speed-sensor adjustment, the 500’s bank-angle sensor, and the carburetor heater controller extend coverage beyond basic starting faults.

Follow the manual’s precautions for brake work, hot coolant, and electrical isolation.

Examples of Drive-Face Torque and Engine Test Data

These figures are a small selection of the fastening and engine-check specifications included in the manual.

Drive-face nut torque is 135 N·m for the XCITING 500 and 93 N·m for the XCITING 250, with oil applied to the threads and seating surface as specified in the installation procedure.

The XCITING 250 compression-test reference is 15 kgf/cm² with the engine at normal operating temperature and the throttle fully open. The maintenance section specifies a spark-plug gap of 0.6–0.7 mm for both models.

PDF Search, Diagram Detail, and Page Count

Text access and wiring detail: Procedure text supports searching, but many wiring-diagram and cable-routing labels are embedded in images. There are no PDF bookmarks. Small wiring labels require zooming; some labels in the 500 diagram remain pixelated and harder to read than those in the 250 diagram.

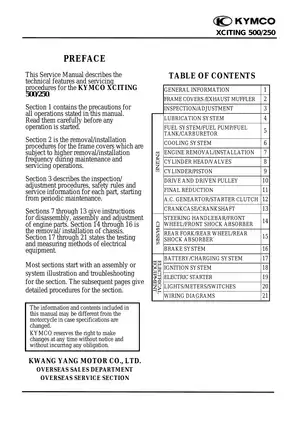

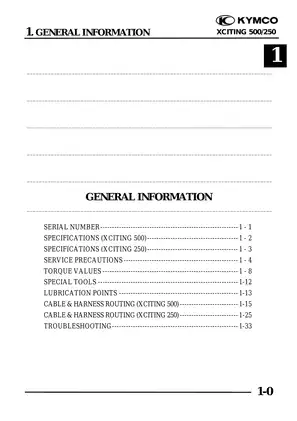

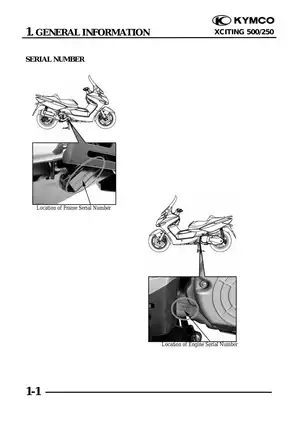

Supplied as one printable English-language 420-page PDF, comprising 418 section pages, one opening title page, and one preface/contents page. Both introductory pages are already included in the total.
