2006 KYMCO MXU 500 ATV Owner's Manual (P/N 4122-LDB5-OFF-U00)

• 677-page OEM PDF set for the KYMCO MXU 500, model code LAA0: a 180-page OFF-ROAD Owner’s Manual plus a 497-page Factory Service Manual covering ON-ROAD and OFF-ROAD configurations.
• Covers engine removal and installation, cylinder-head and valve repair, camshaft and cam-chain service, cylinder and piston inspection, and crankshaft/balance-shaft work.
• Details drive and driven pulley service, V-belt and wet-clutch repair, final-reduction and transmission teardown, shaft inspection, bearing replacement, and bevel-gear shim adjustment.
• Handles front and rear drive assemblies, propeller shafts, the 2WD/4WD change system, steering, suspension, rear axle and swingarm service, plus brake overhaul and bleeding.
• Provides carburetor, fuel-tank, and fuel-valve work along with oil-pump repair, cooling-system testing, coolant replacement, thermostat, water-pump, radiator, fan, and temperature-sensor procedures.
• Supplies charging, ignition, starter, recoil-starter, switch, speed-sensor, and fuel-unit testing, backed by separate ON-ROAD and OFF-ROAD wiring diagrams and circuit layouts.

Coverage and Intended Use

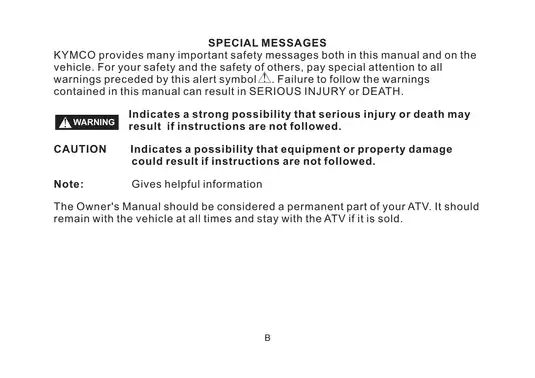

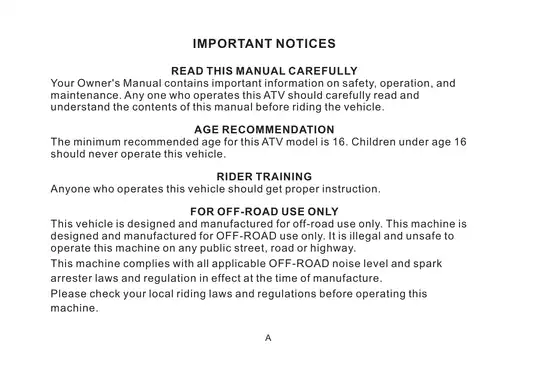

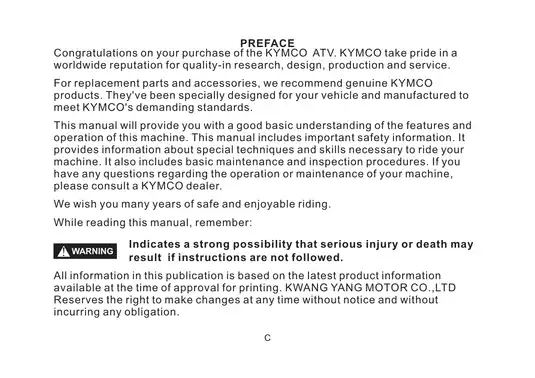

This first-edition set covers the carbureted, liquid-cooled 498.5 cc OHC single-cylinder MXU 500 identified by factory model code LAA0. The Owner’s Manual is marked “Issued: 03.09.2006” and First Edition, March 2006; the Service Manual is First Edition, May 2006. Printed document codes are 4122-LDB5-OFF-U00 for the owner volume and T100LAA001 for the service volume. The operating material suits owners learning the machine’s controls and routine care, while the repair chapters are better suited to experienced mechanics or technicians equipped for measurement, pressing, shimming, and electrical testing.

Operating and Maintenance Content

The owner section locates the frame and engine serial numbers, identifies the controls, and explains the drive-select lever, 2WD/4WD switch, starting systems, braking controls, pre-operation checks, and periodic maintenance schedule. Riding coverage addresses turning, hill climbing, downhill travel, side slopes, rough terrain, shallow-water crossings, loading, towing, parking, and recovery from common riding situations. The factory limits include a 220 kg maximum vehicle load, 454 kg maximum towing capacity, and 16 kg tongue weight, making the operating section useful for checking the machine’s original hauling limits before use.

Repair Depth and Configuration Differences

This is more than an operator guide or baseline specification sheet. The service volume states that its engine chapters cover disassembly, assembly, and adjustment; chassis chapters cover removal and installation; electrical chapters cover testing and measurement. Most sections begin with an assembly or system illustration and troubleshooting information, then move into detailed factory procedures. Diagnostic charts address hard starting, loss of power, poor low- or high-speed performance, charging faults, and no-spark conditions.

ON-ROAD and OFF-ROAD differences matter here. The manual separates carburetor calibration, brake-fluid and bleeding arrangements, combined-brake and parking-brake hardware, delay-valve service, road-lighting equipment, handlebar switches, starting circuits, and complete wiring diagrams. Selected specifications also distinguish USA and non-USA builds. That variant coverage should be checked against the machine before parts or repair procedures are selected.

Diagrams, Specifications, and Special Tools

Named visual references include the lubrication-system diagram, cooling-system flow pattern, cylinder-head/valve schematic drawing, charging-system layout and circuit, ignition and starting circuits, and full ON-ROAD/OFF-ROAD wiring diagrams with wire-color keys. The service data covers component torque tables, fluid types and capacities, service limits, clearances, electrical resistance and peak-voltage tests, drive-gear backlash, shim selection, and tooth-contact checks.

Factory tool listings identify equipment such as universal holder A120E00056, driven-pulley holder A120E00059, flywheel puller A120E00060, joint-yoke puller A120F00016, and pinion puller A120F00021. The cooling section warns that silicate-inhibited coolant can prematurely wear water-pump seals or block radiator passages, while tap water can cause engine damage. The carburetor section also cautions against using wire on calibrated jets and passages because it can damage them.

Fuel, pressurized cooling, brake, battery, stored-spring, and supported-vehicle work carries real shop risk; use the manual’s precautions and appropriate tools before beginning repair work. This set is repair and operating documentation, not an illustrated parts catalog.
